3.3 Product Application
3.3.1 Connecting end node or Switch
1. Place the ES3001-4P-4T on a smooth surface or fasten the mounting brackets purchased separately with the provided
screws in a standard 19” rack.
2. Connect the power cord to the power inlet socket of ES3001-4P-4T and the other end into the local power source outlet.
When the Switch receives power, the Power LED should remain solid Green.
3. Connect other switch or PC to one port of the ES3001-4P-4T using Category 3/4/5/5e/6 UTP/STP cabling.
4. Connect another switch or PC to the other port of ES3001-4P-4T by following the same process as described
in Step 3.

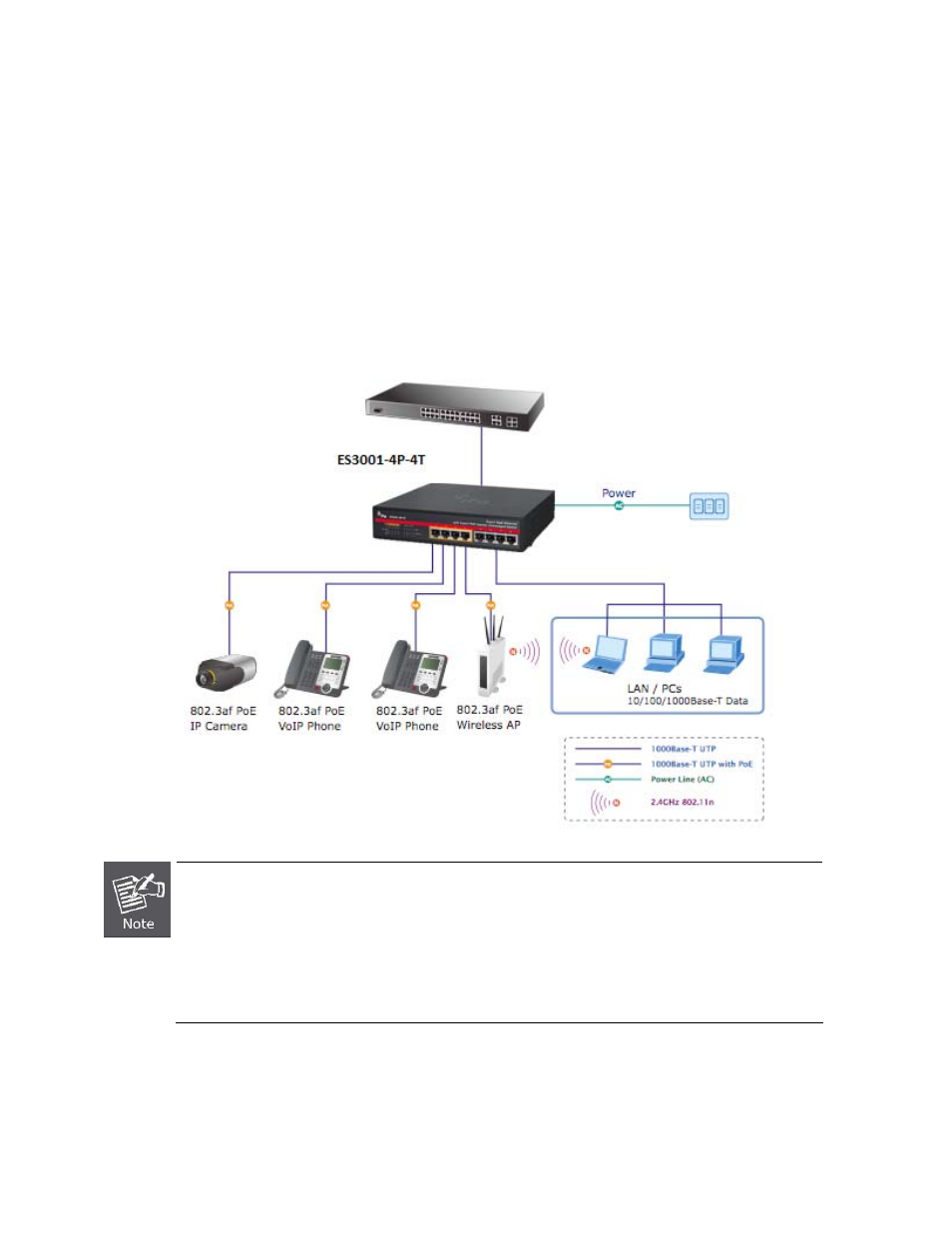

Figure 3-3: End node or Switch Connection
Cable distance for Switch
The cable distance between the ES3001-4P-4T and PC should not exceed 100 meter for UTP/STP
cable.
Make sure the wiring is correct
It can be used Category 3/4/5 cable in 10Mbps operation. To reliably operate your network at
100Mbps or 1000Mbps, you must use an Unshielded Twisted-Pair (UTP) Category 5/5e/6 cable, or
better Data Grade cabling. While a Category 3 or 4 cables may initially seem to work, it will soon
cause data loss.
