2.2.1 LED indicators
 System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
 Per 10/100Mbps port
LED Color Function
PoE In-use Green Lights to indicate the port is providing 48VDC in-line power. (1-4 ports)
LNK/ACT Green Lit: Indicates the link through that port is successfully established.
Blinks to indicate that the Switch is actively sending or receiving data over that port.
2.3 Rear Panel
The rear panel of the ES2001-4P-4T has an AC inlet power socket, which accepts input power from 100 to 240VAC, 50-60Hz.

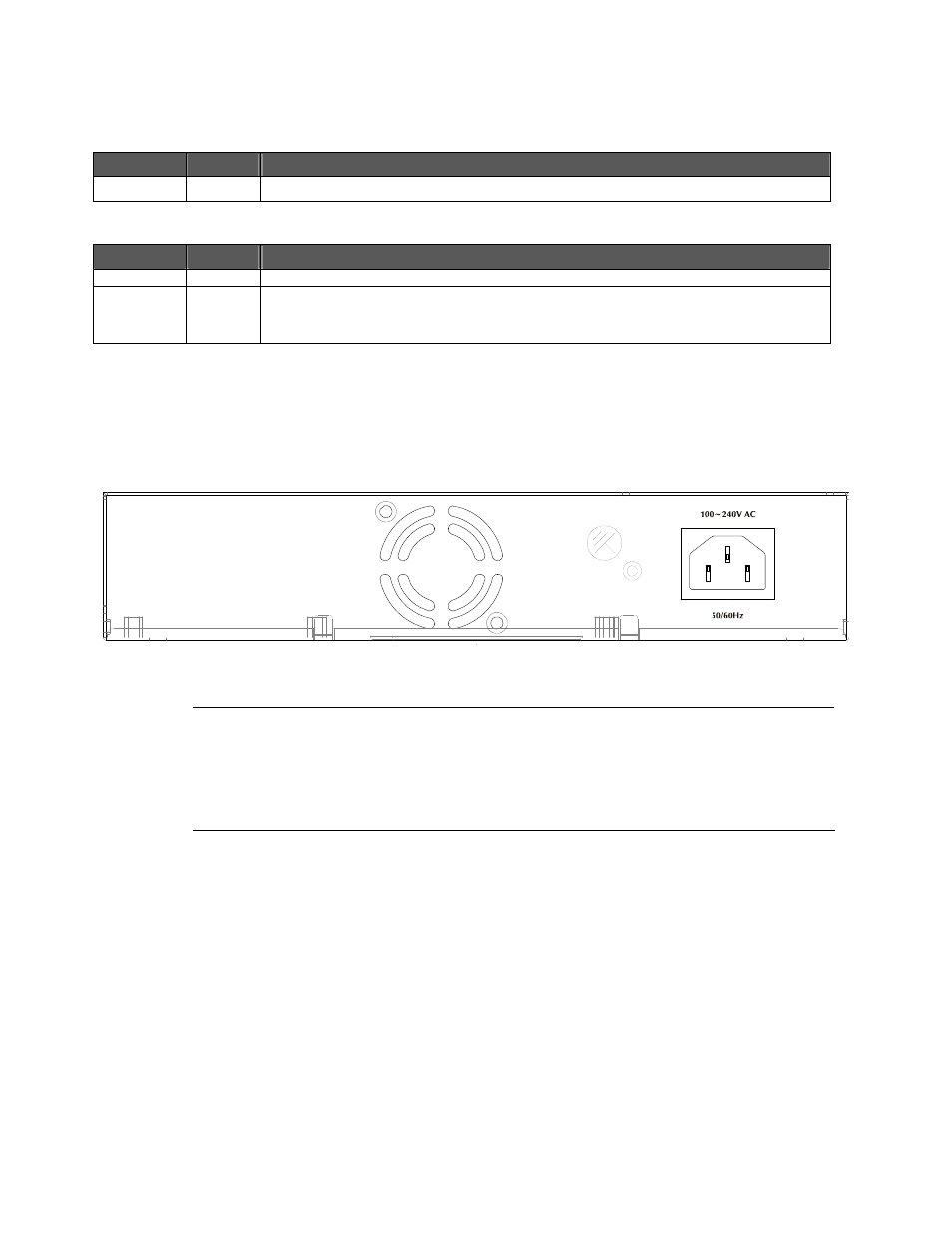

Figure 2-2 ES2001-4P-4T Switch rear panel
Power
Notice:
The device is a power-required device, it means, it will not work till it is powered. If your network is
system critical, please consider using UPS (Uninterrupted Power Supply) for your device to help
prevent data loss or network downtime.
In some areas, installing a surge suppression device may also help to protect your ES2001-4P-4T
from being damaged by unregulated surge or current to the ES2001-4P-4T or the power adapter.
