2. Hardware description
This product operates at two different running speeds – 10Mbps or 100Mbps. The switch automatically distinguishes the
speed of incoming connection.
This section describes the hardware features of ES2001-4P-4T. For easier management and control of the Switch, familiarize
yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators. Before
connecting any network device to the ES2001-4P-4T, please read this chapter carefully.
In the following section, the term “Switch” means the Switch device, i.e. ES2001-4P-4T; the term “switch” can be any third
party switches
2.1 Product Description
The ES2001-4P-4T is equipped with unshielded twisted-pair (UTP) cable ports providing dedicated 10 or 100Mbps bandwidth.
The ES2001-4P-4T supports MDI/ MDI-X for auto sensing the use of either CAT5 ‘patch’ or CAT5 ‘crossover’ cables on each of
the 8 x 10/100Mbps ports. The Switch also provides PoE injection function on ports #1, 2, 3, 4, which is able to drive 4 x IEEE
802.3af compliant powered devices. Each 10/100Mbps port can supports up to 200Mbps of throughput in full-duplex mode,
the ES2001-4P-4T also provides a simple, cost-effective, and highly reliable network connection for data as well as power.
Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks.
With 4 PoE interfaces, the ES2001-4P-4T is ideal for small business and workgroups requiring to deploy the PoE for the
wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost effective.
The front panel of ES2001-4P-4T provides LEDs for easy recognition of the switch operation status and troubleshooting. These
LED indicators display the power status for the system, LNK/ACT and speed for each10/100M port. Also the PoE in use LED
indicates for PoE ports (port#1 to port#4).
With data and power over Ethernet from one unit, the ES2001-4P-4T reduces the need for additional cables and eliminates the
need for dedicated electrical outlets on the wall, ceiling or any unreachable place. The CAT5 cable carries both data and
power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension
cords.
2.2 Front Panel
The Front Panel of the ES2001-4P-4T PoE Ethernet Switch consists of 8x Auto-Sensing 10/100Mbps Ethernet RJ-45 Ports. The
LED Indicators are also located on the front panel of the ES2001-4P-4T.

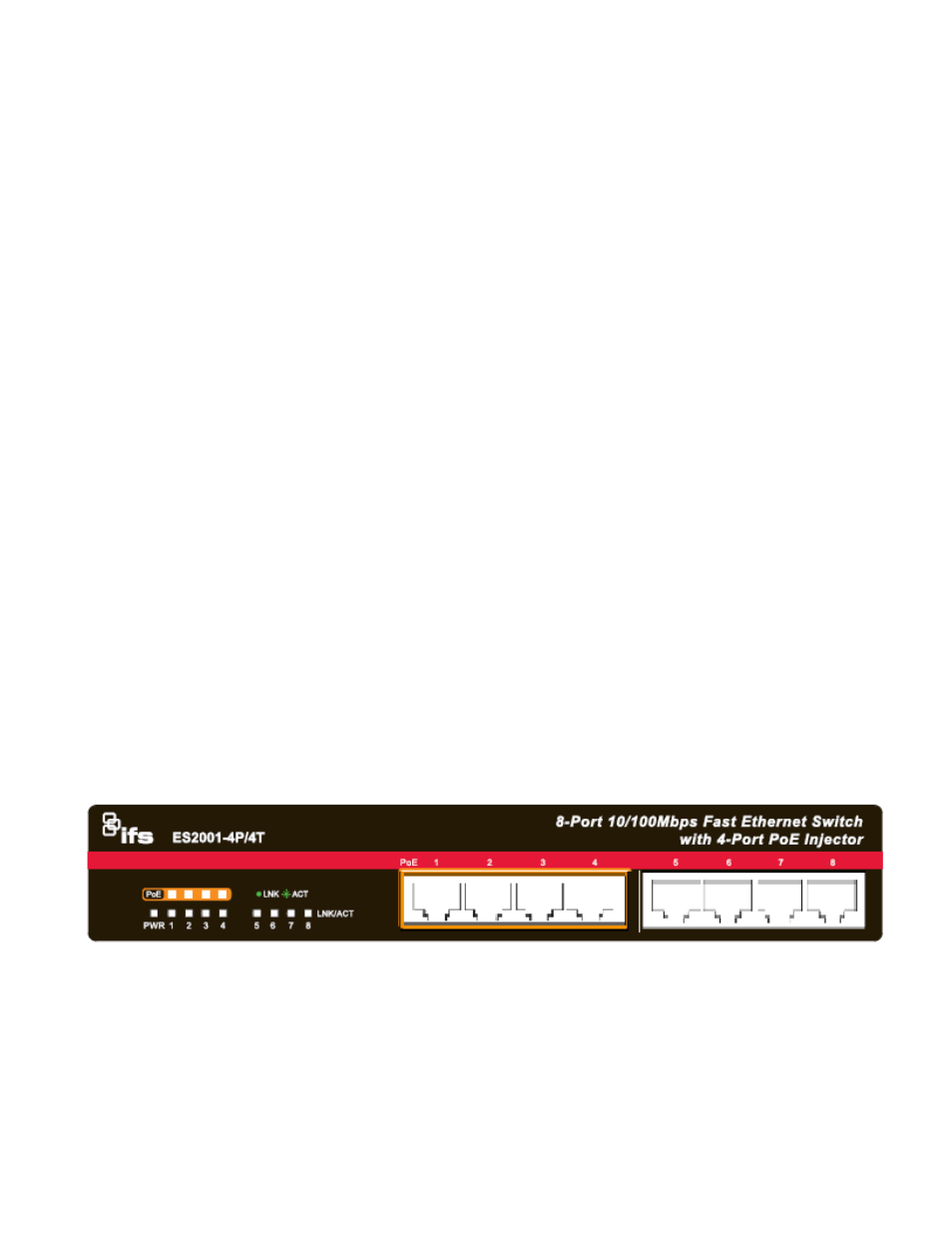

Figure 2-1 ES2001-4P-4T Switch front panel
