IFS ES2001-4P-4T User Manual
13
2.7.2 Typical Uses:
Providing up to 4 PoE, in-line power interfaces, the Switch can easily build a power central-controlled IP phone system, IP
camera system, AP group for the enterprise. For instance, 4 camera / AP can be easily installed around the corner in the
company for surveillance demands or build a wireless roaming environment in the offices.
Without the power-socket limitation, the switch makes the installation of cameras or WLAN AP more easily and efficiently.

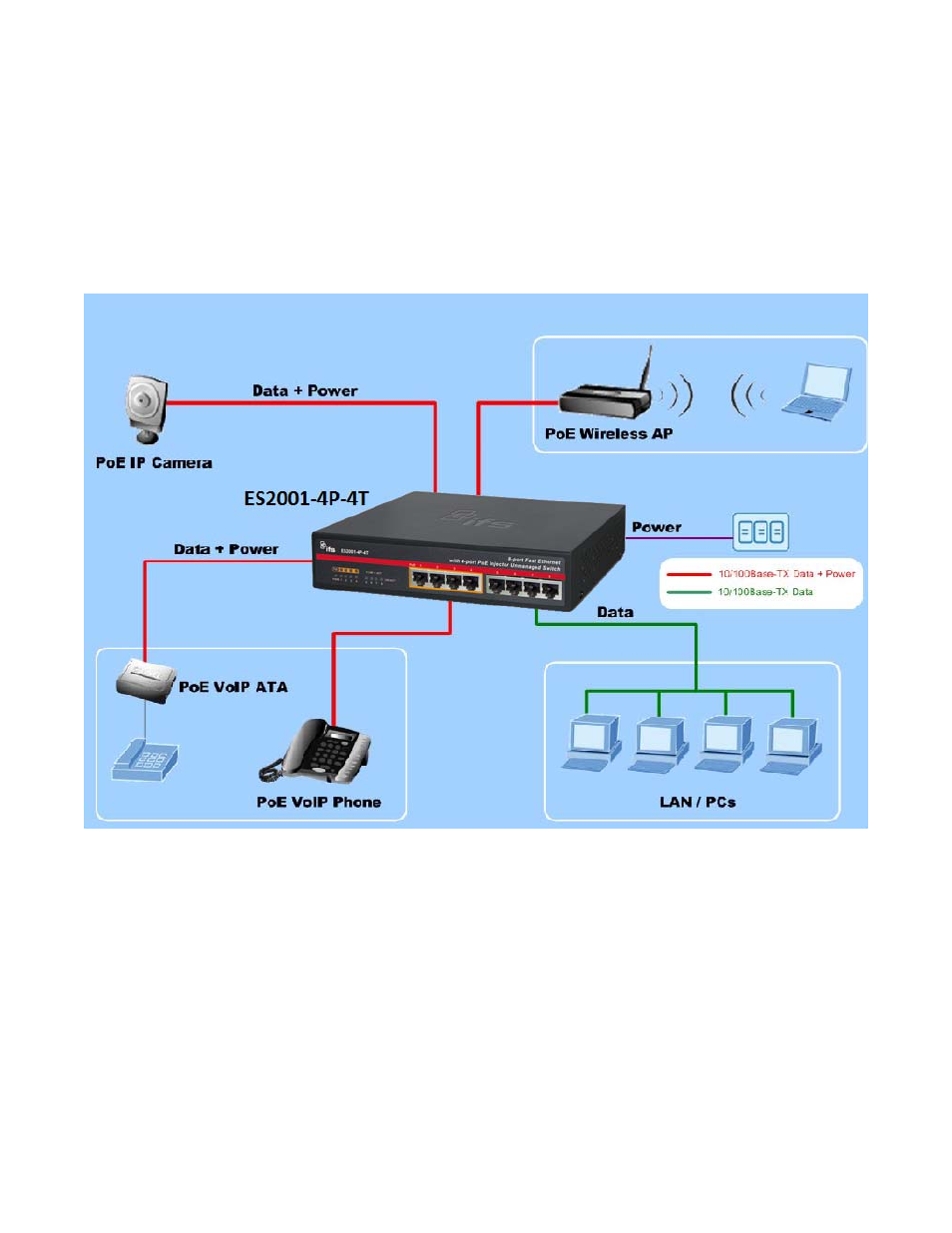

Figure 2-7 Department / workgroup PoE Switch connection
