8 IFS MC250-4T/1CXT User Manual

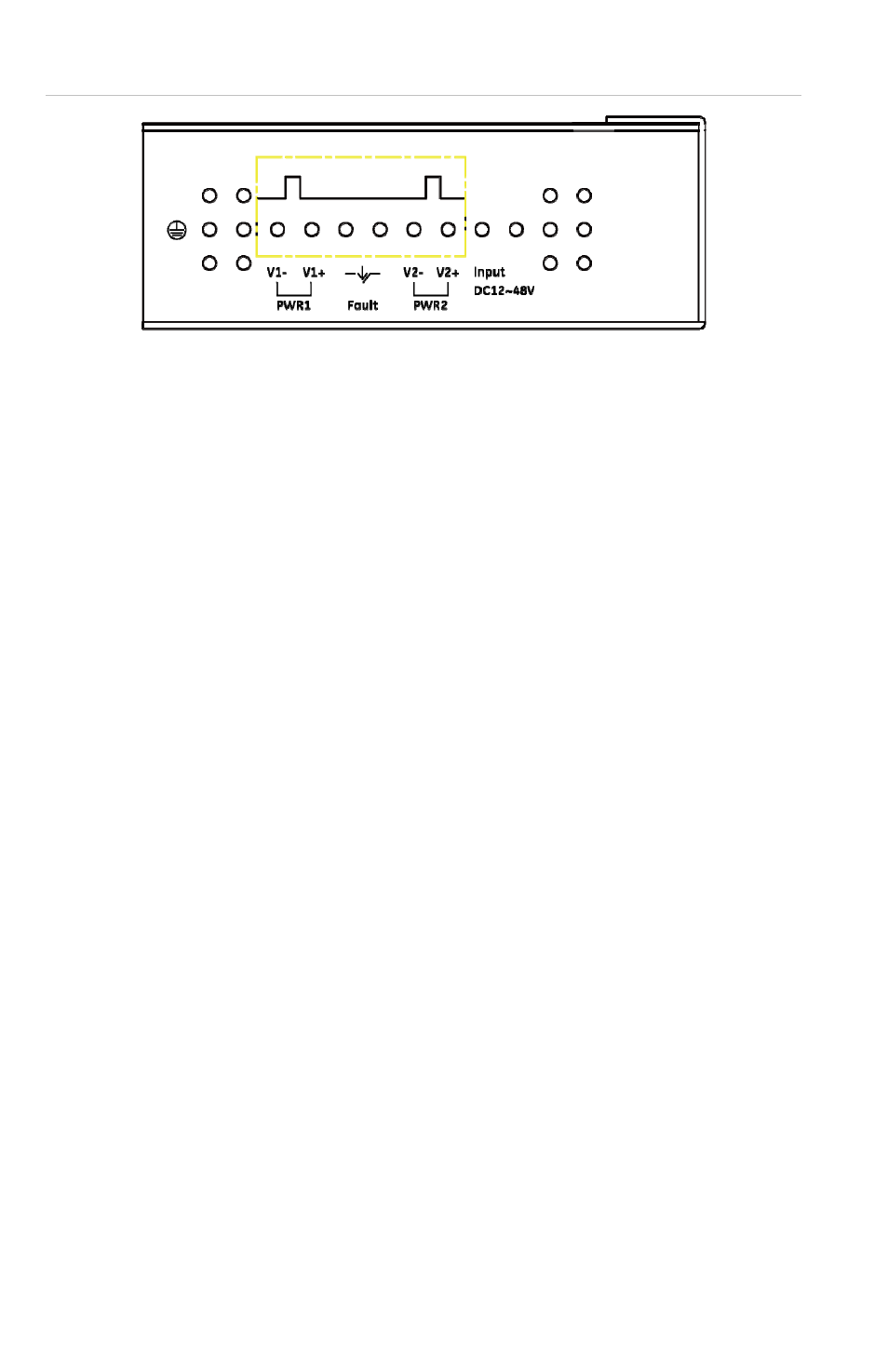

Figure 2: Top Panel
Installation
Installing the MC250-4T/1CXT
The MC250-4T/1CXT does not require any software
configuration. Users can immediately use any feature of this
product simply by attaching the cables and power plug. There
is some key limitation on the MC250-4T/1CXT. Please check
the following items:
MC250-4T/1CXT: The device is used for Point-to-Point
connection only (Master device to Slave device) and is
equipped with one RJ-11 and one BNC connectors for VDSL2
port for network link connection.
Phone wire: Depending on the quality of the telephone line
being used, the maximum distance of one VDSL segment is
1.6km (5249ft) with AWG 24 telephone wires.
Coaxial: Depending on the quality of the coaxial cable being
used, the maximum distance of one VDSL segment is 3.0km
(9842ft) with 50 or 75 ohm coaxial cable.
The distance achieved will vary according to the quality of
telephone wires and coaxial cables.
