Hardware overview – Interlogix MC250-4T/1CXT User Manual
Page 10
4 IFS MC250-4T/1CXT User Manual
Hardware Overview
The MC250-4T/1CXT provides 4 10/100 Mbps RJ-45, 1 RJ-11
and 1 BNC port for network line connection. The 4 RJ-45 ports
will distinguish the speed of incoming connection
automatically.
This section describes the hardware features of the MC250-
4T/1CXT. For easier control of the MC250-4T/1CXT, it's
recommended to get familiar with the LED indicators and port
characteristics. Front panel illustrations in this chapter display
the units LED indicators. Before connecting any network
device to the MC250-4T/1CXT, read this chapter carefully.

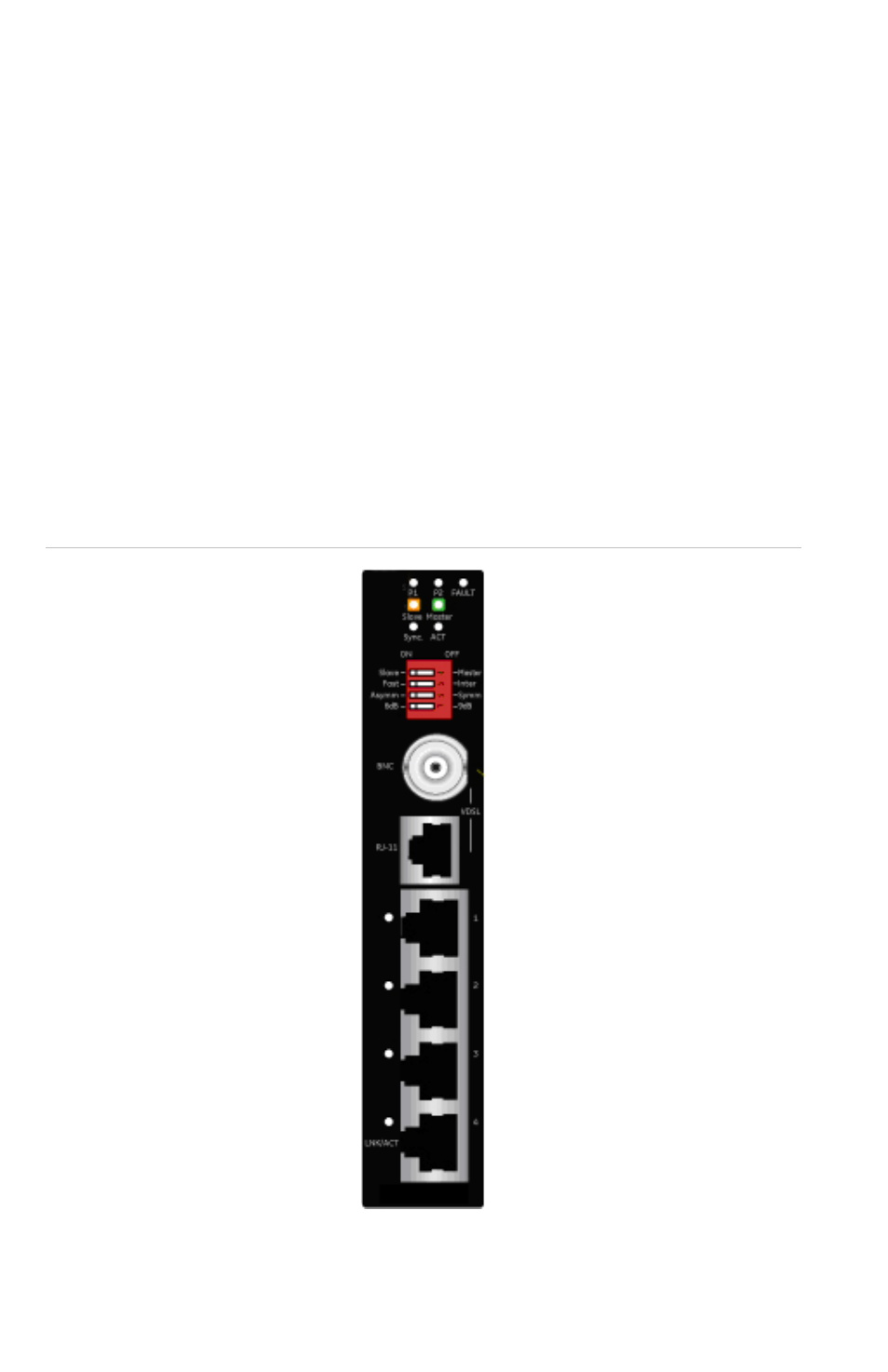

Figure 1: Front Panel
