Cateye Ergociser Series 1000 Service Manual
44
EC-1200 EC-1600 EC-3600 EC-3700 Applicable Models:
Cotterless Gear Crank
Removing/Fastening Tool
Cotterless Gear Crank
Removing/Fastening Tool
Upper Part of Large Gear
ON
OFF
MS-8
MS-8

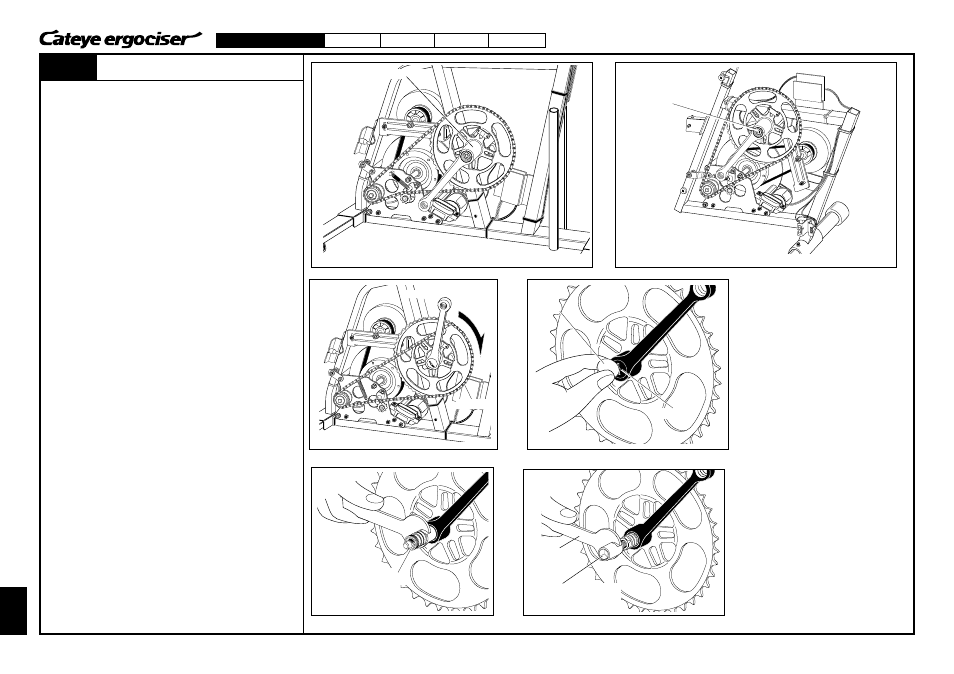

Replacing the Crank Set (1)
Removing the Gear Crank (Crank)
1. Remove the frame cover by referring to the Sections D-1 & D-
2 "Removing the Frame Covers."
2. Detach the chain by referring to the Section MS-4 "Replacing
the Chain." (Fig. 1)
3. Detach the crank cap with a coin or the like. (Fig. 2)
4. Use a cotterless gear crank removing/fastening tool and a
wrench, rotate the crank nut to remove it. (Fig. 3)
5. Change the sides of a cotterless gear crank removing/
fastening tool, and rotate it clockwise to remove the gear crank
(crank) from the crank shaft. (Fig. 4)
- to be continued to the next page -
Crank Set
EC-1200 & EC-1600
Crank Set
EC-3600 & EC-3700
Fig. 1
Chain
Fig. 2
Coin
Crank Cap
Fig. 3
Wrench
Fig. 4
Wrench
Replacing the Crank Set (1)
