7
16

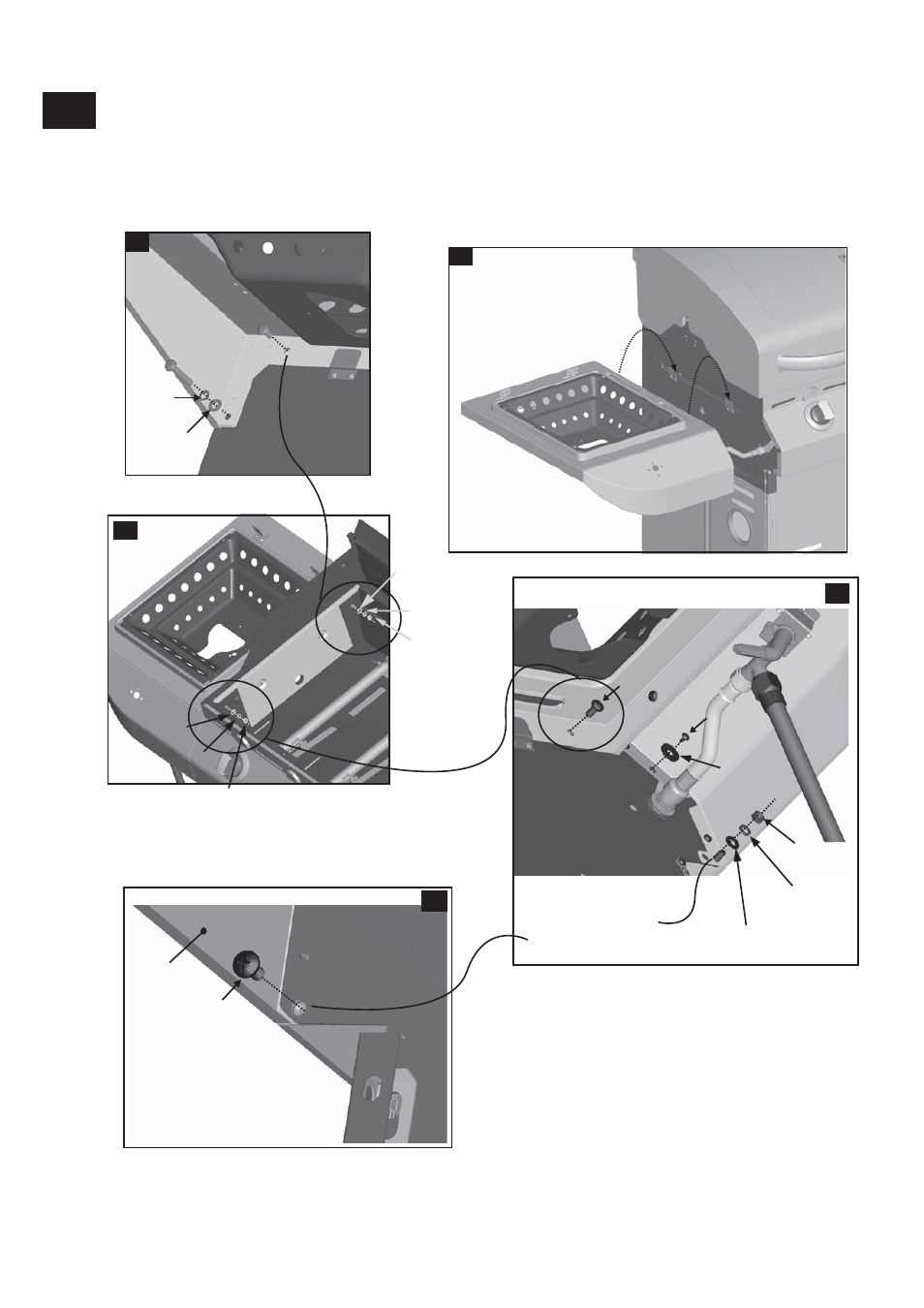

Insert tabs on left sideburner shelf assembly into rectangular slots in side of firebox, shown A.
Attach rear of shelf using one1/4-20x3/4” screw, 7mm flat washer,7mm lock washer and 1/4”nut in upper hole; and
using 1/4-20x1½” screw, 7mm lock washer, 7mm flat washer in lower hole, shown B/C.
Attach front of shelf and fascia using two 1/4-20x3/4” screws, 7mm flat washers, 7mm lock washers and 1/4”nuts, and
one #8x3/8” self-tapping screw with large washer, shown C/D/E.
Now you may fully tighten lower screws on upper back panel.
A
B
D
C
1/4-20x3/4”
screw
1/4-20x3/4”
screw
large flat washer
1/4-20x3/4”
screw
screw
1/4-20x1½”
7mm lock
washer
7mm lock
washer
washer
7mm lock
7mm lock
washer
1/4”nut
1/4”nut
1/4”nut
7mm flat
washer
7mm flat
washer
7mm flat
washer
7mm flat
Front of Shelf
#8x3/8” tapping
screw
washer
E Back of main control panel
Control panel
*Insert this screw from
the back of main control
panel
