Char-Broil 463271309 User Manual
Page 13

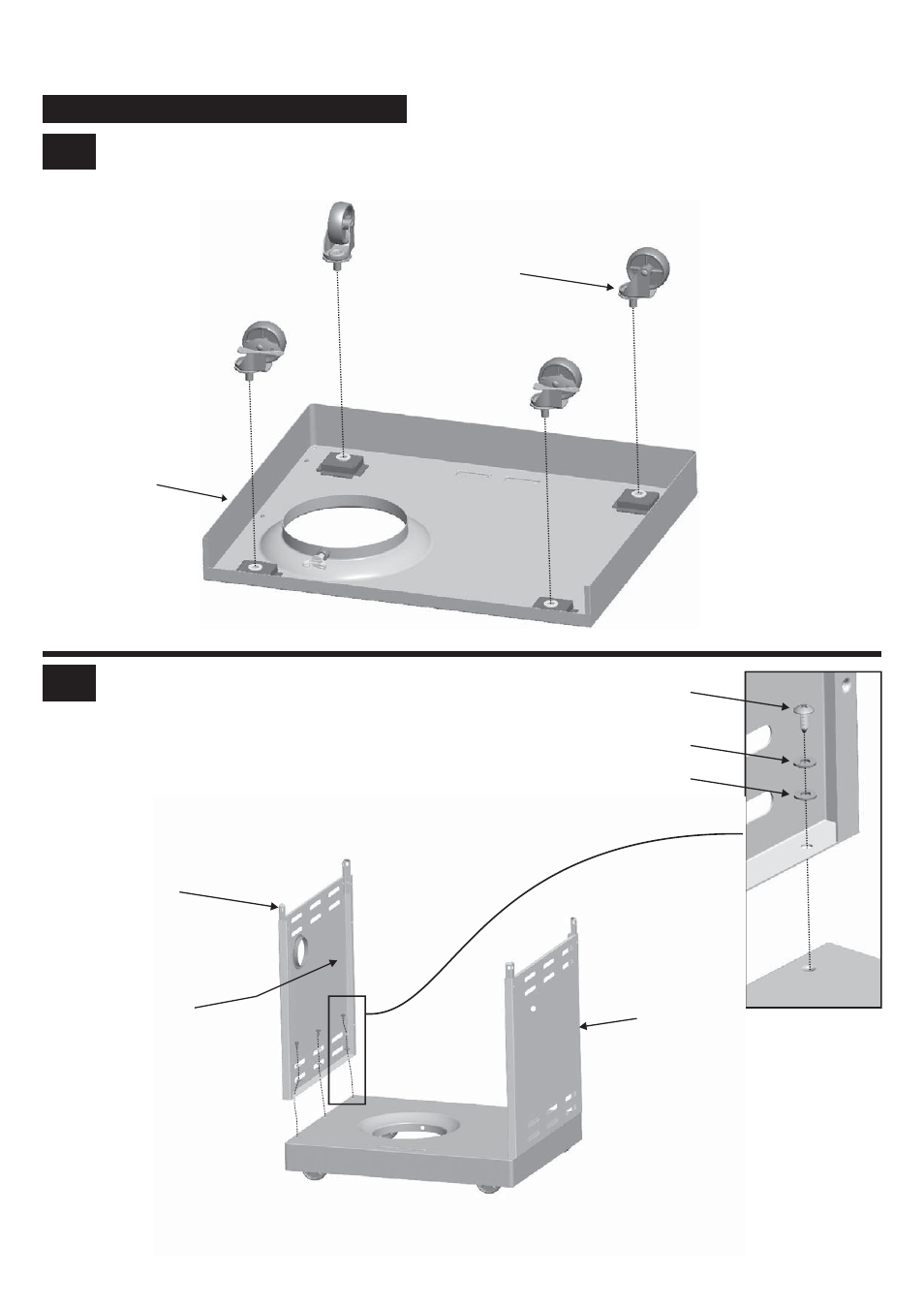

ASSEMBLY
2
1/4-20x1/2” screw
1
Attach side panels to bottom shelf using three
1/4-20x1/2” screws, 7mm lock washers, and
7mm flat washers per panel.
IMPORTANT: Panel with large hole must
Be on left side of bottom shelf.
7mm lock washer
7mm flat washer
Attach the two locking casters at the rear of the bottom shelf and the two fixed casters at the front.
Use the provided caster wrench to fully tighten casters.
Locking caster
Bottom shelf
Rear
Fixed caster
Front
13
Left side panel
(with large hole)
Make sure side panels
are pushed as far to the
rear of bottom shelf as
possible before fully
tightening screws.
Right side panel
