4.4 AC Input Box (Three Phase)

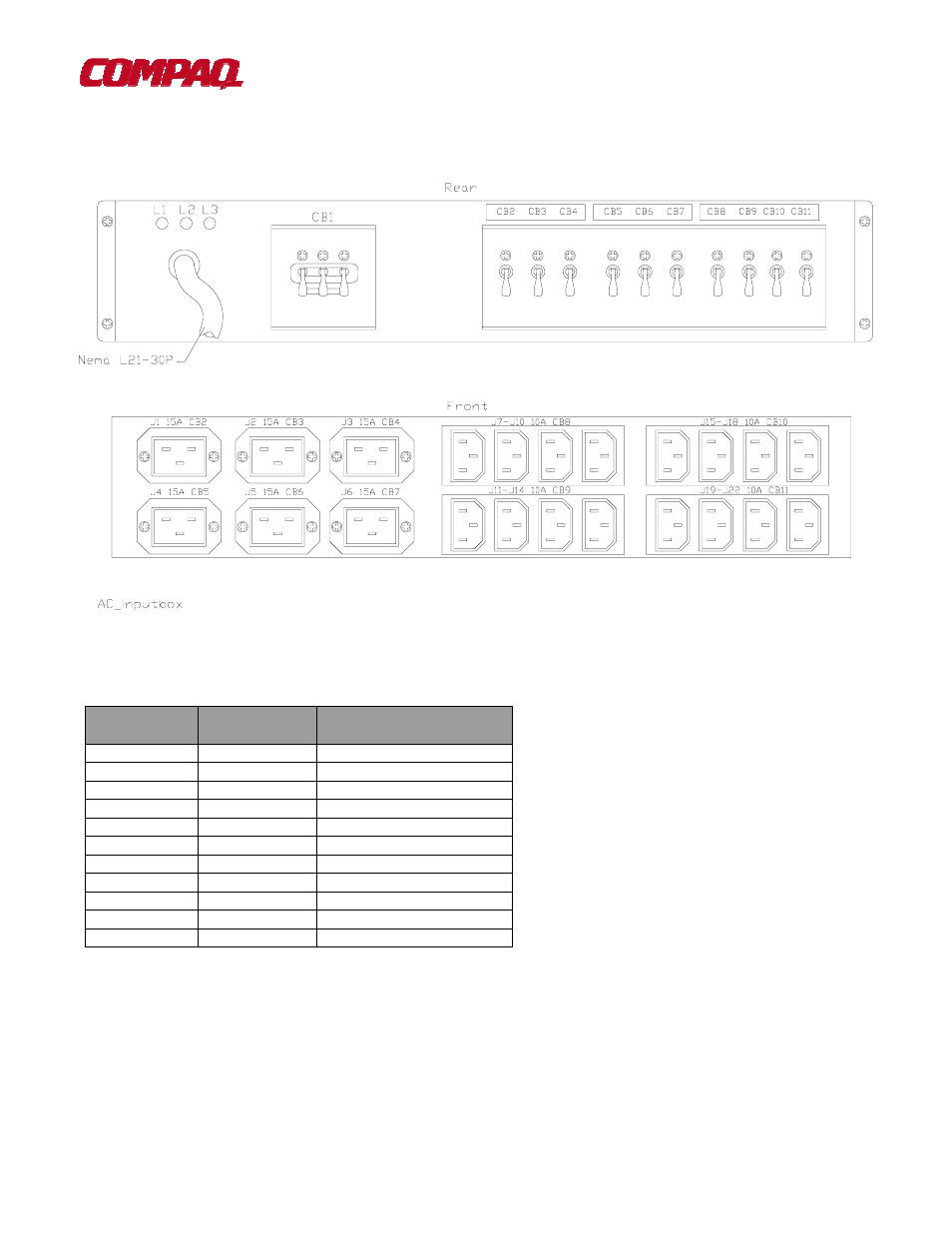

Figure 11 AC Input Box

Note:

Two AC Input Boxes are required for the AlphaServer GS320.

Table 1 AC Input Box Circuit Breaker Line Protection

Circuit
Breaker

Rating
Amps

Outlets Protected

CB1

30

All

CB2

15

J1

CB3

15

J2

CB4

15

J3

CB5

15

J4

CB6

15

J5

CB7

15

J6

CB8

15

J7-J10

CB9

15

J11-J14

CB10

15

J15-J18

CB11

15

J19-J22
