13
4.2 PCI Bus Master

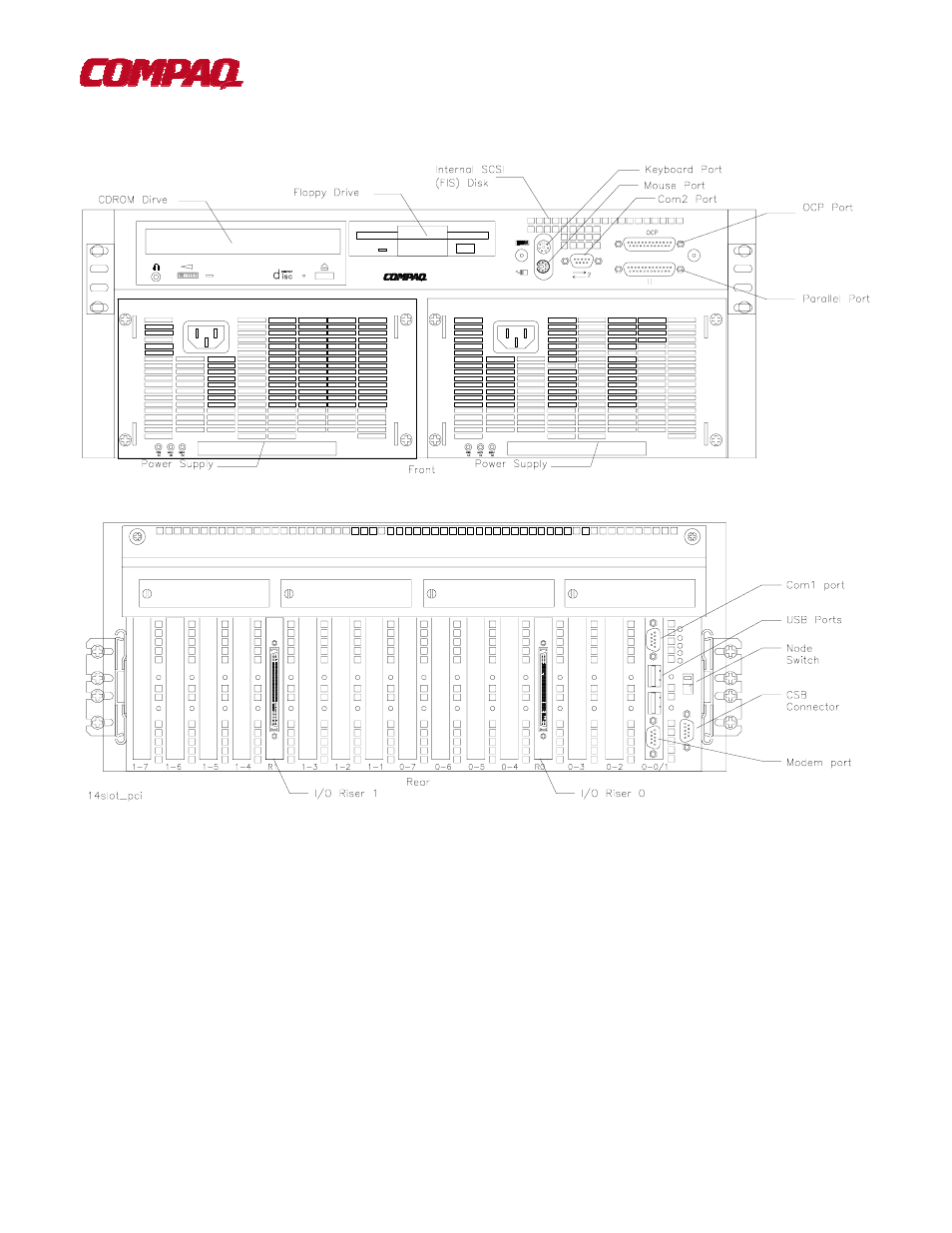

Figure 8 Master PCI Expansion Box
4.2.1 PCI Slot Configuration Guidelines
! I/O riser 0 must be installed.
! The standard I/O module is always installed in riser 0-slot 1.
! Install high-powered modules in slots with one inch module pitch (all slots except riser 0-slot 5, riser 0-slot
6, riser 1-slot 5, and riser 1-slot 6).
! Install high-performance adapters across multiple bus/hose segments to get maximum performance
! VGA graphics options must be installed in riser 0-slot 2 or riser 0-slot 3.
CAUTION: Installing a full-length module next to the standard I/O module requires extra care due to cabling on the
standard I/O module.
