Fuses
u
Fuse Locations
Continued
Han
d
lin
g the U
n
expected

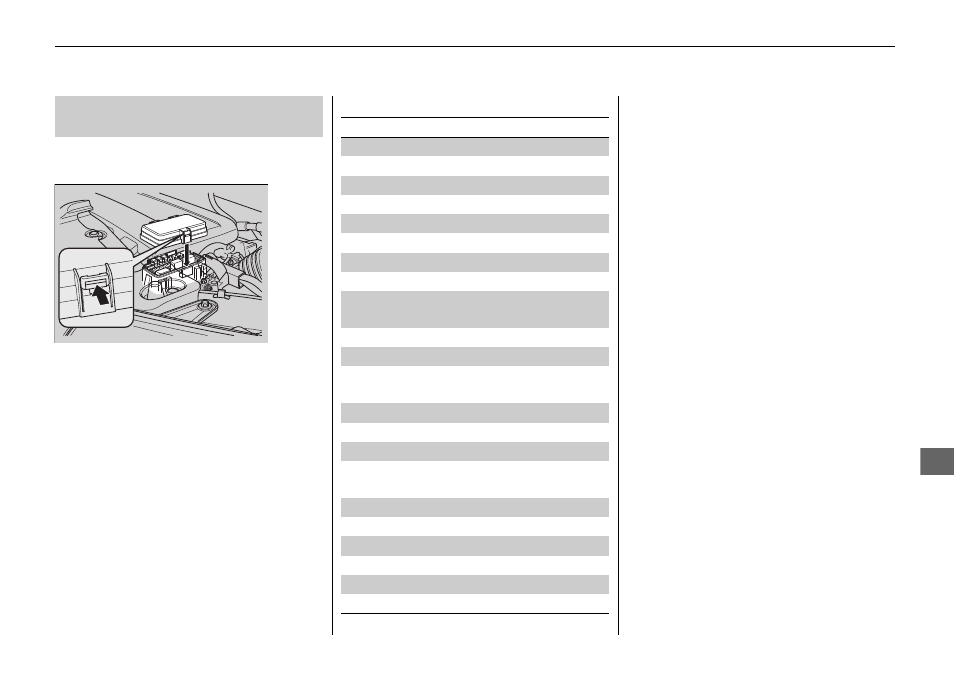

Located near the battery. Push the tabs to
open the box.
■
Engine Compartment Sub Fuse
Box
■
Circuit protected and fuse rating
Circuit Protected
Amps
1
Power Tailgate Motor
*
(40 A)
2
VTM-4
*
(20 A)
3
Trailer Main
(30 A)
4
VSA FSR
40 A
5
Rear Blower
30 A
6
VSA Motor
30 A
7
Hazard
15 A
8
Power Tailgate Closer
*
(20 A)
9
Driver’s Power Seat
Reclining
*
(20 A)
10
Driver’s Power Seat Slide
*
(20 A)
11
Stop & Horn
20 A
12
Rear Console Accessory
Socket
15 A
13
Rear Wiper
10 A
14
Trailer E-Brake
(20 A)
15
Front Heated Seat
*
(20 A)
16
Center Console Accessory
Socket
15 A
17
Trailer Charge
(20 A)
18
Front Accessory Socket
15 A
19
Rear Accessory Socket
15 A
20
Glass Hatch Motor
20 A
21
Rear Heated Seat
*
(15 A)
22
Head Light Washer Motor
(30 A)
* Not available on all models
