INTRODUCTION INTRODUCTION
Thank you for purchasing the Novus Brushless Conversion. The brushless mo-
tor will provide greater power and longer fl ight times in comparison to the stock
brushed motor.
INSTALLATION INSTALLATION
❏

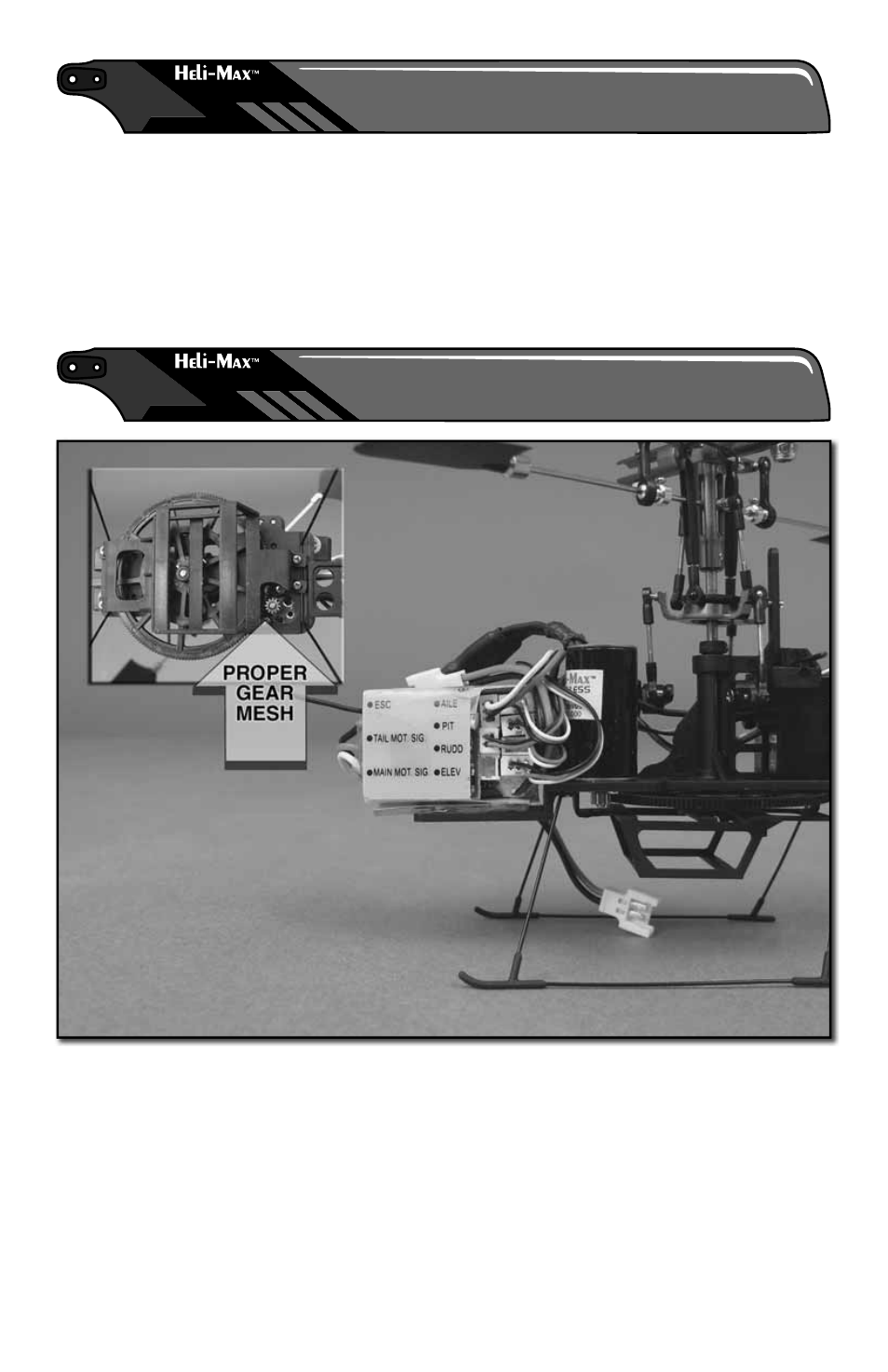

Disconnect the main drive motor from the E-Board and remove the motor
from the helicopter. Install the brushless main drive motor with the wire harness
facing forward as shown. Ensure that the gear mesh is set correctly. Once the
gear mesh has been set correctly there should be a minimum amount of play
between the gears. If you are not comfortable setting the gear mesh by “feel”
then place a thin piece of notebook paper between the pinion and spur gear
to set the mesh. Press the motor towards the main gear and tighten the motor
mounting screws. Remove the paper and turn the gear to verify that it rotates
freely. Repeat this process until you are satisfi ed with the gear mesh.
