Heli-Max HMXE0210 - Manual (Page 4)

4
❏

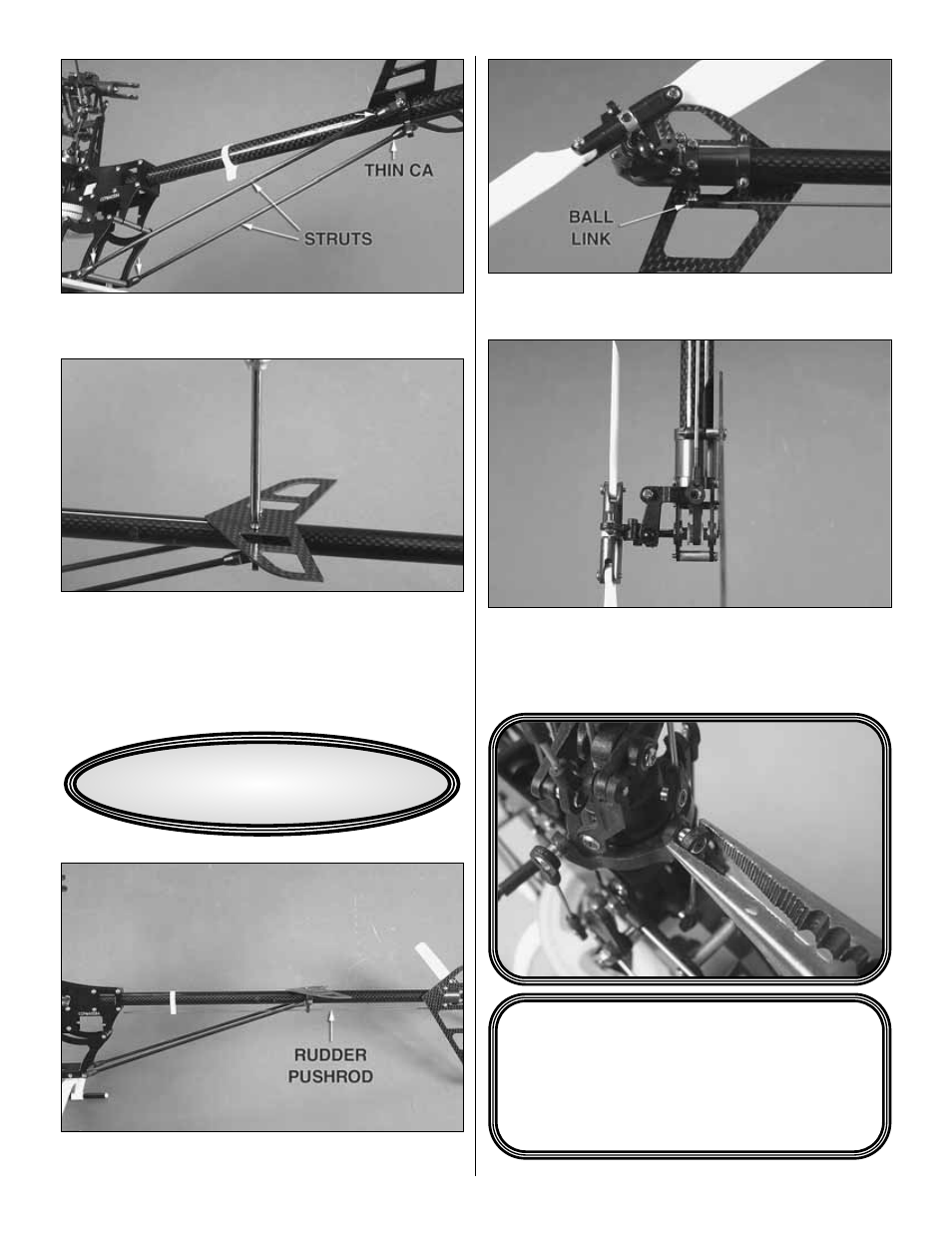

4. Insert the carbon fiber tail struts into the aluminum strut
ends. Secure each end with a drop of thin CA.
❏
5. Finalize the position of the horizontal stabilizer bracket,
and tighten the horizontal stabilizer screws to hold the
assembly firmly in place. Do not over tighten. Use a drop of
threadlocker to secure each screw.
❏
1. Slide the rudder pushrod back through both supports
on the tail boom.
❏
2. Screw a ball link onto the threaded end of the
rudder pushrod.
❏
3. Connect the ball link to the ball on the tail rotor pitch
control horn. Check to see that the ball link runs freely on the
ball, and loosen it if necessary using the following Heli-Max Tip.
HELI-MAX TIP
How to adjust the fit of ball links.
If a ball link does not twist freely on its ball, squeeze it
firmly with a pair of needlenose pliers
while it is
installed on the ball.
INSTALL THE PUSHRODS
