swash plate is level when viewed from the front. If it is not,
adjust the linkages from the aileron control horns to the
swash plate until the swash plate is level.
❏

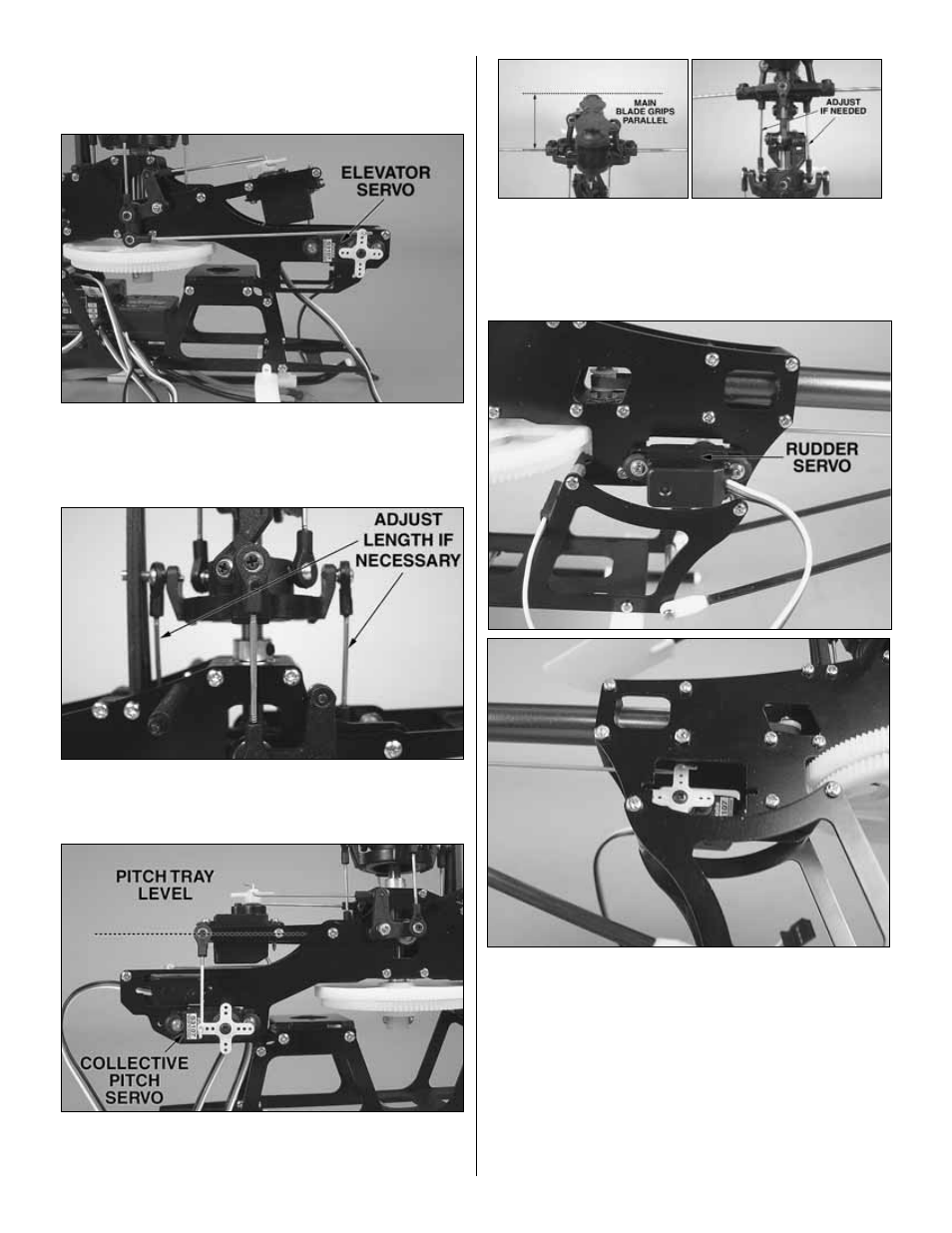

3. Using two plastic servo screw nuts, install the elevator
servo as shown. With the elevator servo centered, the
elevator control horn should be vertical. If the control horn is
not vertical, adjust the elevator pushrod until it is.
❏
4. With the elevator control horn vertical, the swash plate
should be level when viewed from the side. If it is not, adjust
the length of the elevator swashplate linkages.
❏
5. Install the collective pitch servo as shown. With the
servo centered, the pitch pivot tray should be level. If it is
not, adjust the length of the pushrod until it is.
❏
6. With the servo centered and the pitch tray level, the
main blade grips should be parallel to each other. If they are
not, adjust the length of the linkages shown.
❏
7. Install the rudder servo as shown. With the servo
centered, the tail rotor should be at approximately zero
pitch. If it is not, adjust the length of the rudder pushrod.
