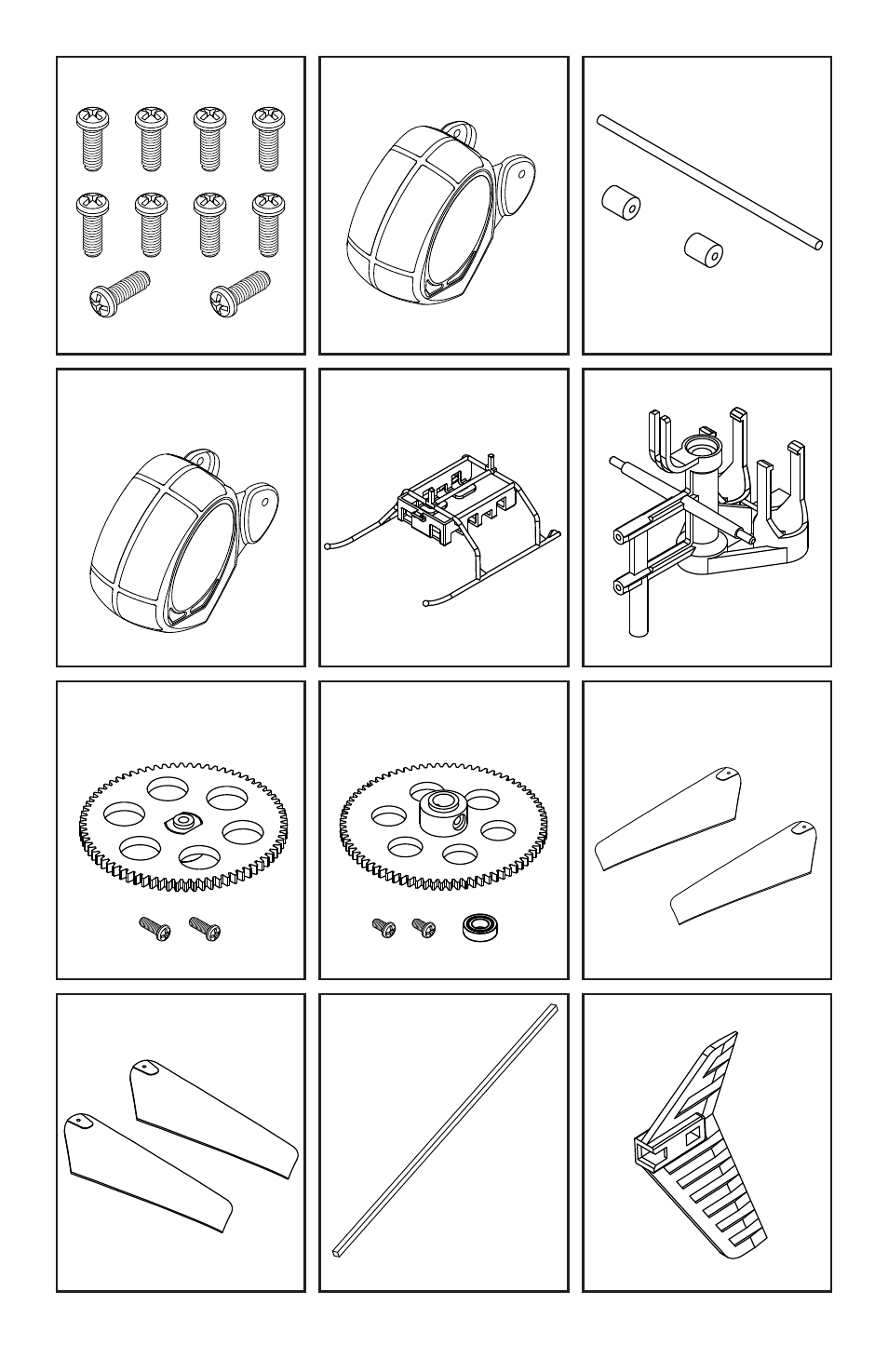

Replacement Screw Set

1 Set

Canopy Red CXn

1Pc

Canopy Rod-Grommets

1 Set

Canopy White CXn

1 Pc

Axe CXn Landing Gear

1 Pc

Main Frame

1 Pc

Upper Rotor Gear

1 Set

Lower Rotor Gear

1 Set

Lower Blades Axe CXn

2 Pcs

Upper Blades Axe CXn

2 Pcs

Tail Boom Axe CXn

1 Pc

Vertical Fin Axe CXn

1 Pc

HMXE7337

HMXE7418

HMXE7419

HMXE7365

HMXE7913

HMXE7914

HMXE8041

HMXE8042

HMXE8290

HMXE8291

HMXE8459

HMXE8460
