E6X Manual
34
When the ECU is “Online” the horizontal black bar will gradually change colour from left to
right indicating the progress of the load process. When the load process is complete a
window will appear with the map details:
Press
Enter
The screen will flash and then return to the title page.
3.1.1.2 Save Map
The ECU programming software allows the user to save all the information in the ECU to a
file on the programming PC. This allows the user to save a map and continue tuning and
then, if required, revert to a previous map.
NOTE:
When the save function is used it saves the current map loaded in the
programming software. If the ECU is “Offline” the map available in the
programming software may not be the map that is stored in the ECU.

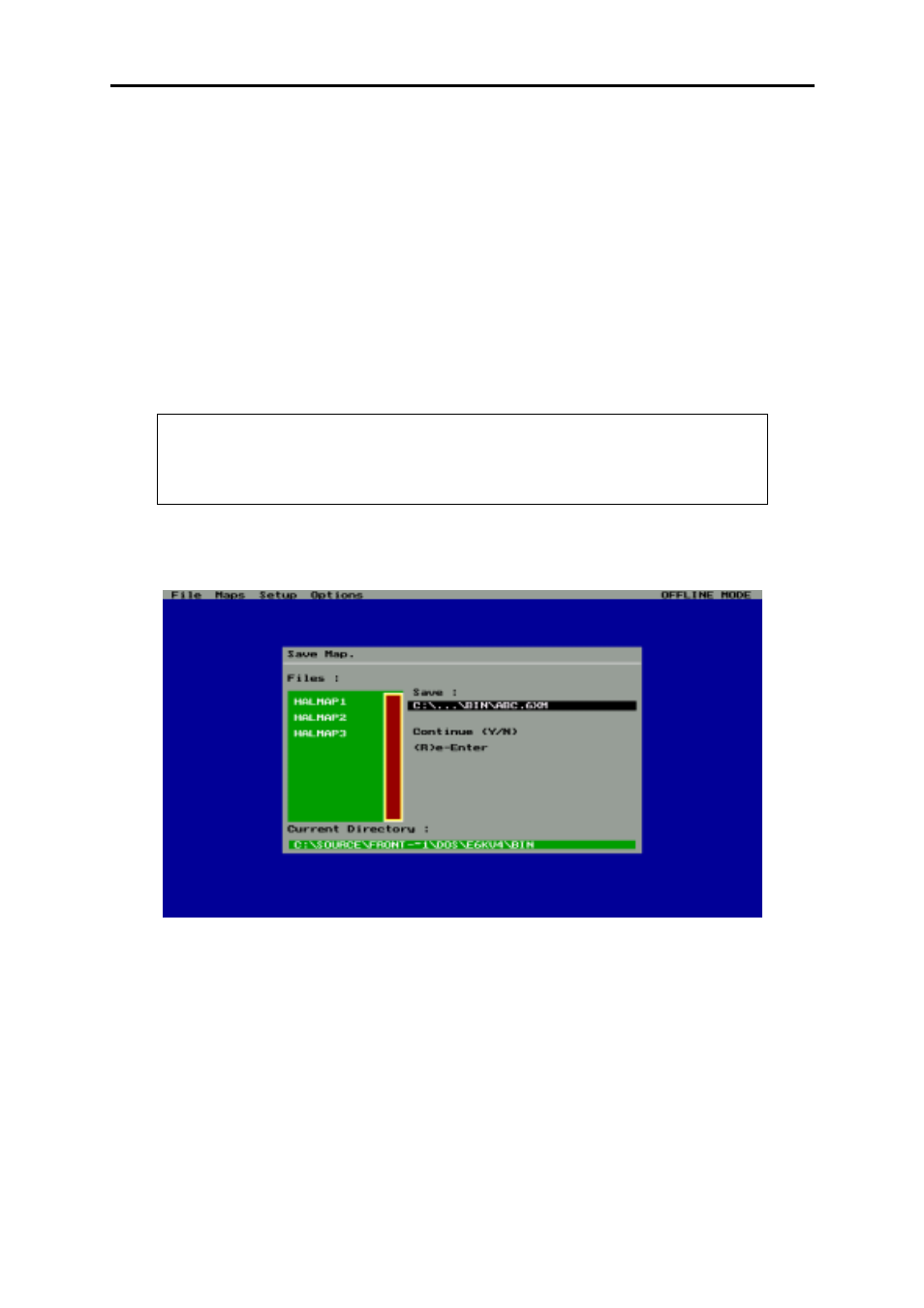

When you choose the “Save Map” menu item a file window will appear in the centre
of the screen. On the left side of the window is list of ECU map files available in the current
directory.
Type a filename for the map. The typed filename will be displayed in the horizontal black bar
below the text “Save”:
Press
Enter
The text “Continue (Y/N)” will appear below the horizontal black line:
Press
Y to continue, N to cancel the save or R to re-enter the filename.
The screen will flash and then return to the title page.
