Each coil igniter will have its own trigger. If using direct fire, a Home signal is needed for
trailing ignition to be generated.
Distributor Direct Fire
Output Function Function
INJ1 Fuel (Primary) Fuel (Primary)
INJ2 Fuel (Secondary) Fuel (Secondary)
IGN OUT Leading Spark Leading Spark (both)
IGN 2 Trailing Spark Trailing Spark front rotor
IGN 3 Digital Output Trailing Spark rear rotor
B.7 Ignition Outputs
The ignition outputs of the ECU are designed to provide the appropriate signal to drive an
ignitor. The ECU is capable of driving either smart (constant duty) or dumb (constant charge)
ignitors.
WARNING:
UNDER NO CIRCUMSTANCES SHOULD THE IGNITION OUTPUTS
OF THE ECU BE USED TO DRIVE THE COILS DIRECTLY. THE
IGNITION OUTPUTS OF THE ECU ARE INCAPABLE OF SINKING
SUFFICIENT CURRENT TO GENERATE SPARK AND WILL
SIMPLY FORCE THE IGNITION DRIVERS INTO SHUTDOWN
B.7.1 Constant Duty vs. Constant Charge
Constant Duty ignitors contain circuitry that will optimise the dwell for the next ignition and
consequently the ECU only needs to provide a signal that has a constant duty cycle and a

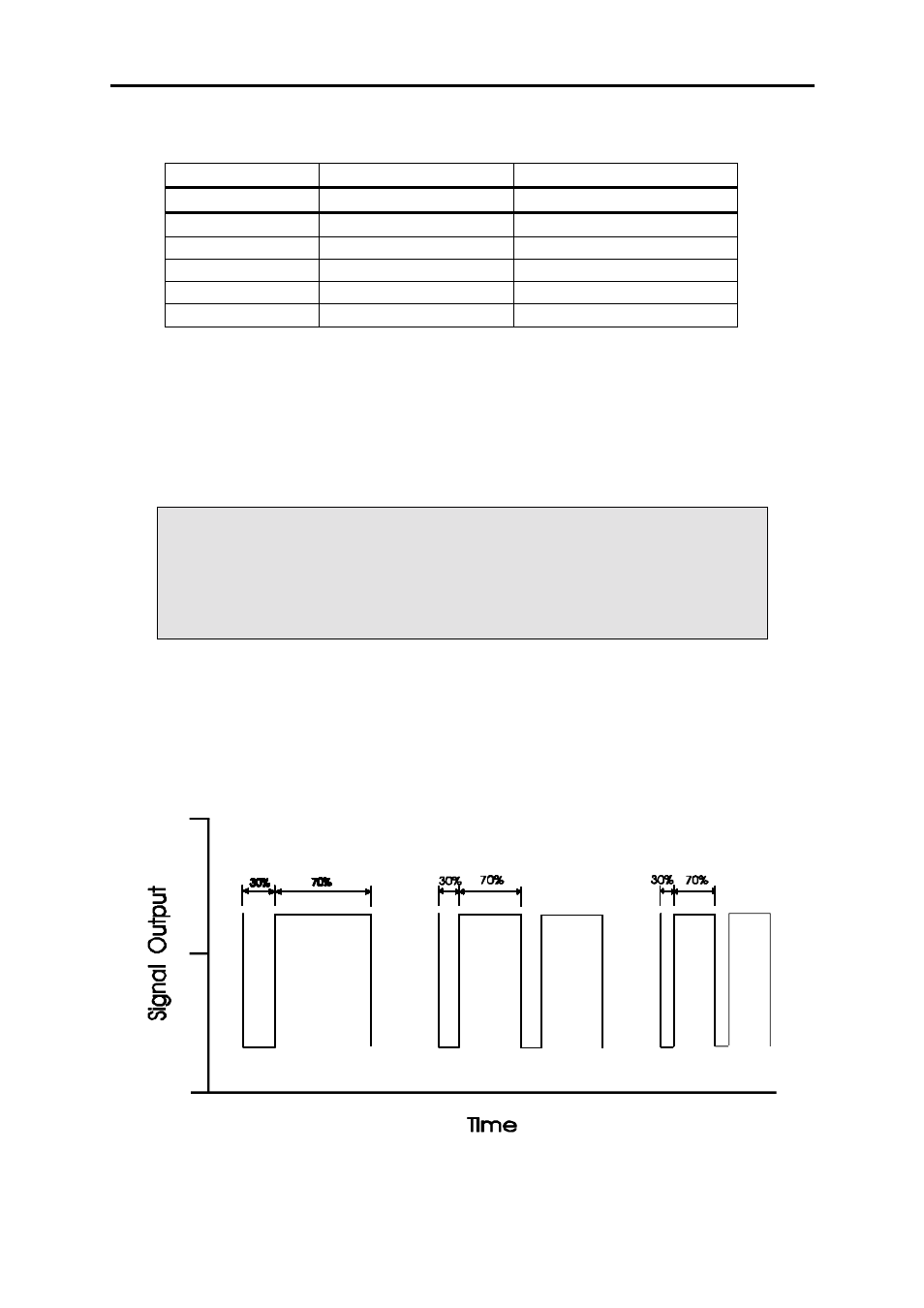

timed edge for ignition. A constant duty ignition signal will appear as below:
A constant charge ignitor requires the ECU to control dwell as well as ignition timing, the
dumb ignitor as it is commonly referred to is basically just a high current switch for the coil.
