6
1. Fuselage
2. Engine Mount
3. Servo Tray Parts
4. Fuel Tank
5. Cockpit
6. Pilot
7. Canopy
8. Tail Wheel Assembly
9. Rudder
10. Stab Tubes
11. Stab & Elevators (L&R)
12. Left Wing Panel
13. Wing Center-Section
14. Right Wing Panel
15. Wire Covers
16. Landing Gear Wire
17. Wheels
18. Wheel Pants (L&R)
19. Wing Joiners (1-aluminum,
2-plywood)
Kit Contents (not photographed)
Kit Contents
(6) 4-40 Threaded Metal Clevis
(5) 4-40 Solder Clevis
(2) Screw-Lock Pushrod Connector
(8) 2-56 Threaded Metal Clevis
(6) 4-40 Nut
(4) 8-32 Blind Nuts
(8) 2-56 Nut
(4) 1/4-20 Blind Nut
(8) Large Nylon Control Horn
(2) 1/4-20 Nylon Bolt
(2) Nylon Retainer
(2) 2" x 9" Hinge Material
(1) 11-3/4" Gray Plastic Outer Tube
(7) 36" Gray Plastic Outer Tube
(17) Clevis Retainer (6) 6-32 x 1/4" SHCS
(2) 4-40 x 1/4" SHCS
(2) #2 x 3/8" Sheet Metal Screw
(2) #4 x 3/8" Sheet Metal Screw
(4) 8-32 x 1-1/4" SHCS
(4) 8-32 x 1" SHCS
(48) #2 x 1/2" Sheet Metal Screw
(2) 3/16" Wheel Collar
(1) .074 x 12" Wire Threaded One End
(4) .095 x 5-3/4" Wire
(2) .095 x 48" Wire Threaded One End
(16) #2 Flat Washer
(8) #8 Lock Washer
(8) #8 Flat Washer
(8) Nylon Landing Gear Straps (5) Nylon Anti-Rotation Pins
(4) Pull-Pull Wire (1020mm in length)
(8)
2-56 Threaded Brass Pull-Pull Connector
(8) Wire Crimp Connectors
(2)
3mm Plywood Wheel Pant Mounting Plate
(1) 152mm Velcro ®
(2) 6 x 13 x 36mm Hardwood Blocks
(4) 5mm Wheel Collar
(6) 3 x 5 x 5mm Plywood
(2) 1/4-20 Nylon Bolt (thumb screw type)
(4)
Laser-Cut Plywood Parts (for the fiberglass
wire covers)
(2) 3 x 25 x 25mm Plywood Plate
Before starting to build, take an inventory of this kit to make sure it is complete, and inspect the parts to make sure they are of
acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly, contact Product
Support. When reporting defective or missing parts, use the part names exactly as they are written in the Kit Contents list.
Great Planes Product Support:
3002 N Apollo Drive, Suite 1
Champaign, IL 61822
Telephone: (217) 398-8970, ext. 5
Fax: (217) 398-7721
E-mail: [email protected]

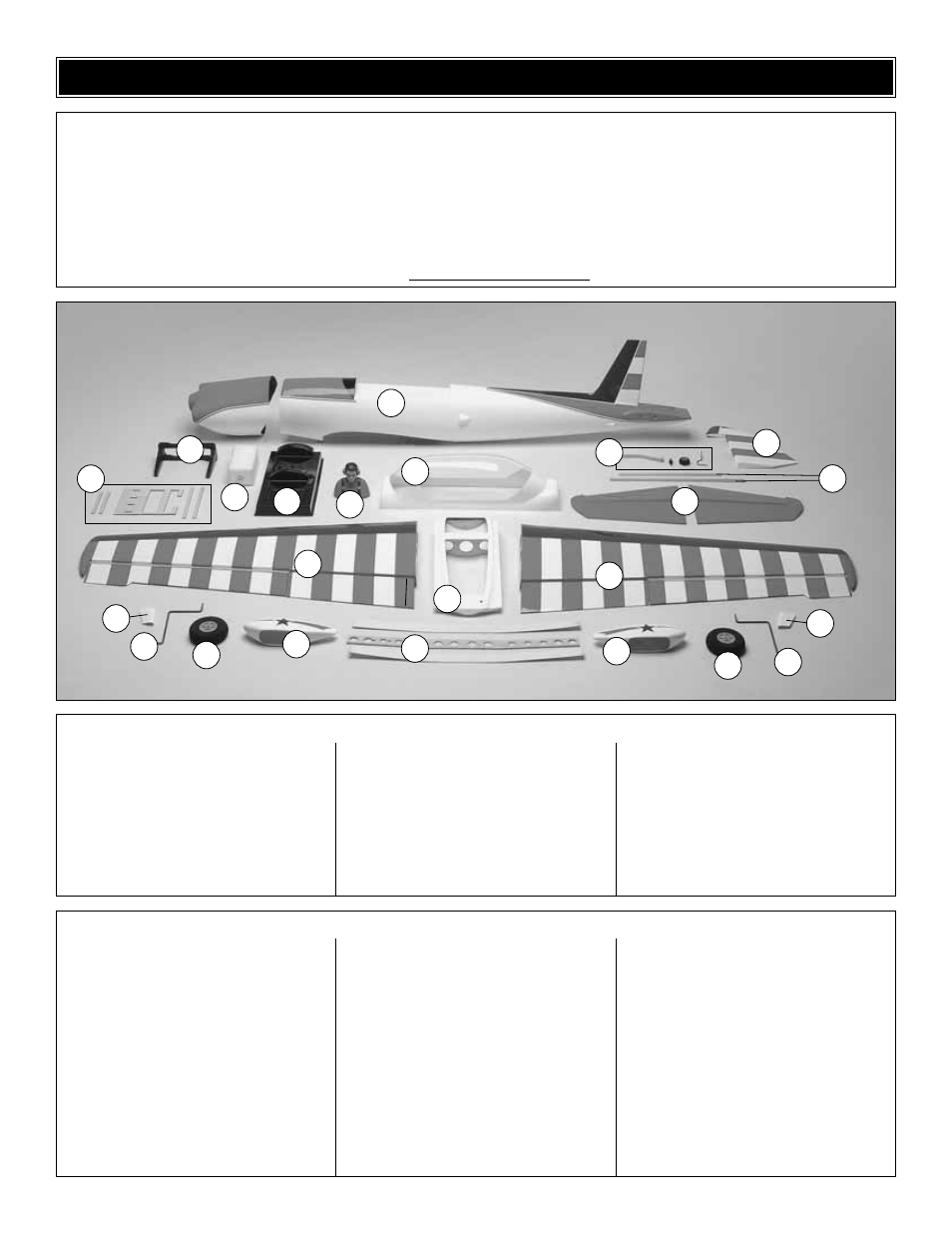

KIT CONTENTS
1
2
4
5
7
6
13
19
12
11
15
16
17
18
15
16 17
18
14
3
8
9
10
