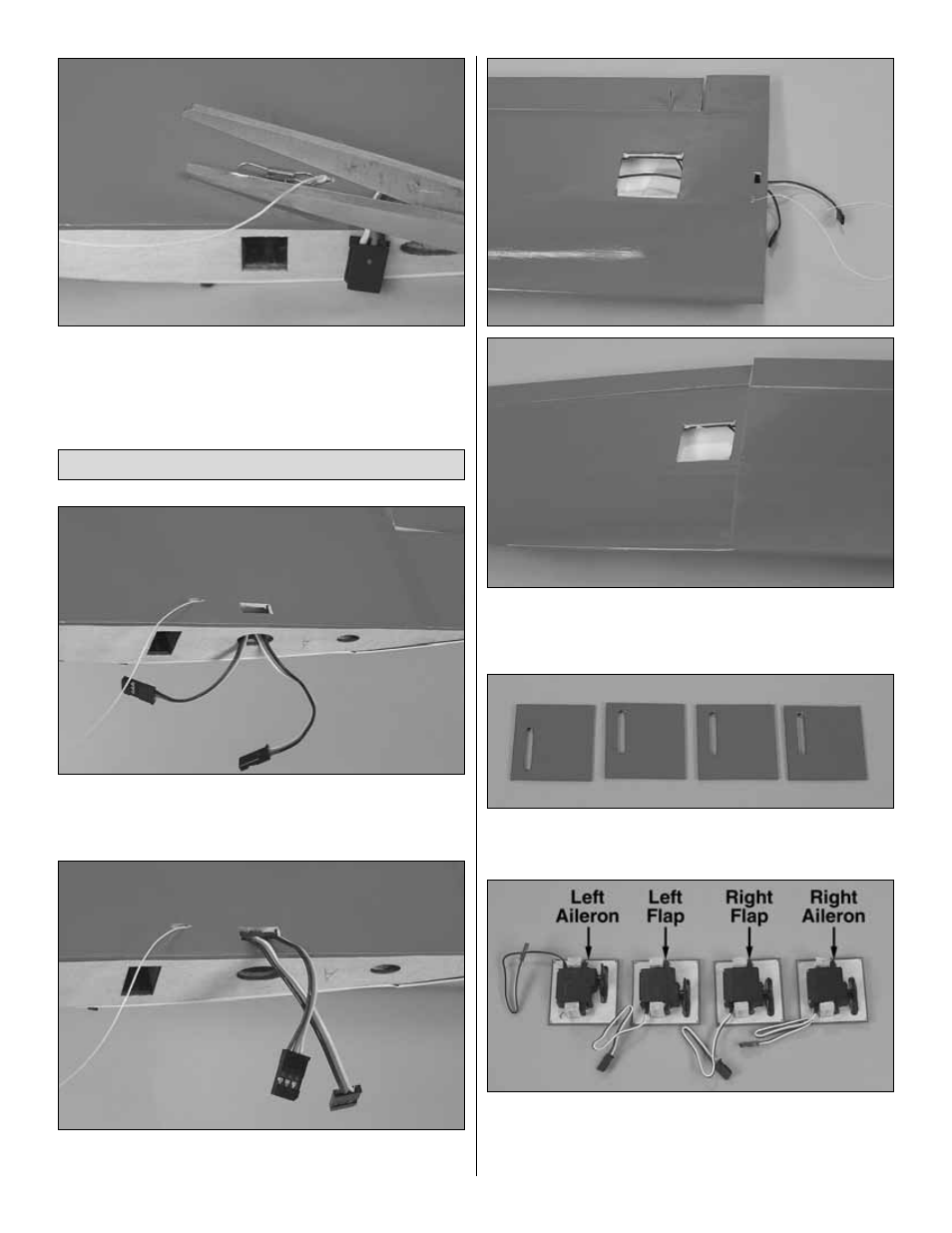

9. Trim the excess string from the spoiler hook.
❏
10. Repeat steps 1-9 for the second spoiler.
❏
1. Cut a 3/16" x 1/2" [4 x 13mm] slot in the bottom of each
wing panel aligned with the hole in the root rib and 3/16"
[4mm] from the wing center.
❏
2. Pull the servo leads up through the 3/16" x 1/2"
[4 x 13mm] slot.
❏
3. Locate the openings for the flap and aileron servos in
the bottom of each wing panel. Trim out the covering and
seal the edges using a sealing iron.
❏
4. Locate the four servo hatch covers and trim out the
servo arm openings. Seal the edges using a sealing iron.
❏
5. Trial fit your servos on the covers and mark the
locations of the servo blocks. Using epoxy, glue the servo
blocks to the hatch covers. NOTE: The flap servos should be
oriented the same for both wing panels.
Install the Aileron and Flap Servos
8
