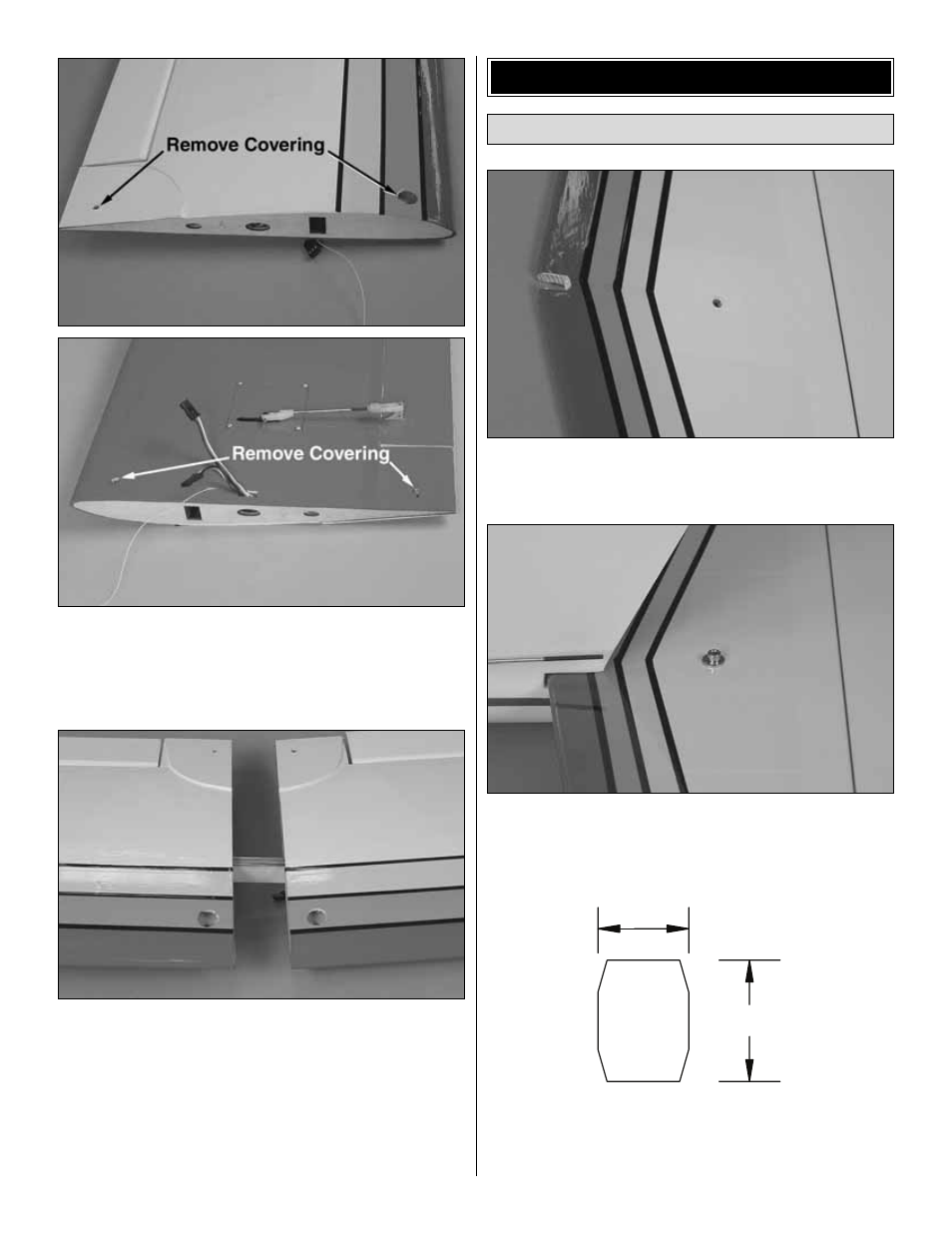

2. Remove the covering from the top and bottom of the
four wing bolt holes on the wing.
❏
3. After the epoxy on the wing joiner has fully cured fit the
joiner in the wing. It might be necessary sand the joiner so it
will fit in the wing. The fit needs to be tight so sand small
amounts and take your time.
❏
1. Trim the covering on the horizontal stabilizer from the
LE slot and the bolt hole. Apply thin CA to the exposed wood
in the LE slot.
❏
2. Mount the stabilizer to the fuse with a 6-32 x 3/4"
[19mm] socket head cap screw and #6 washer.
❏
3. Cut three 3/4" x 1" [19 x 25mm] CA hinges from the
supplied 2" x 9" [50 x 230mm] CA hinge strip. Snip off the
corners so they go into the rudder/fin easier.
1" [25mm]
3/4" [19mm]
Attach the Tail
ASSEMBLE THE FUSE
