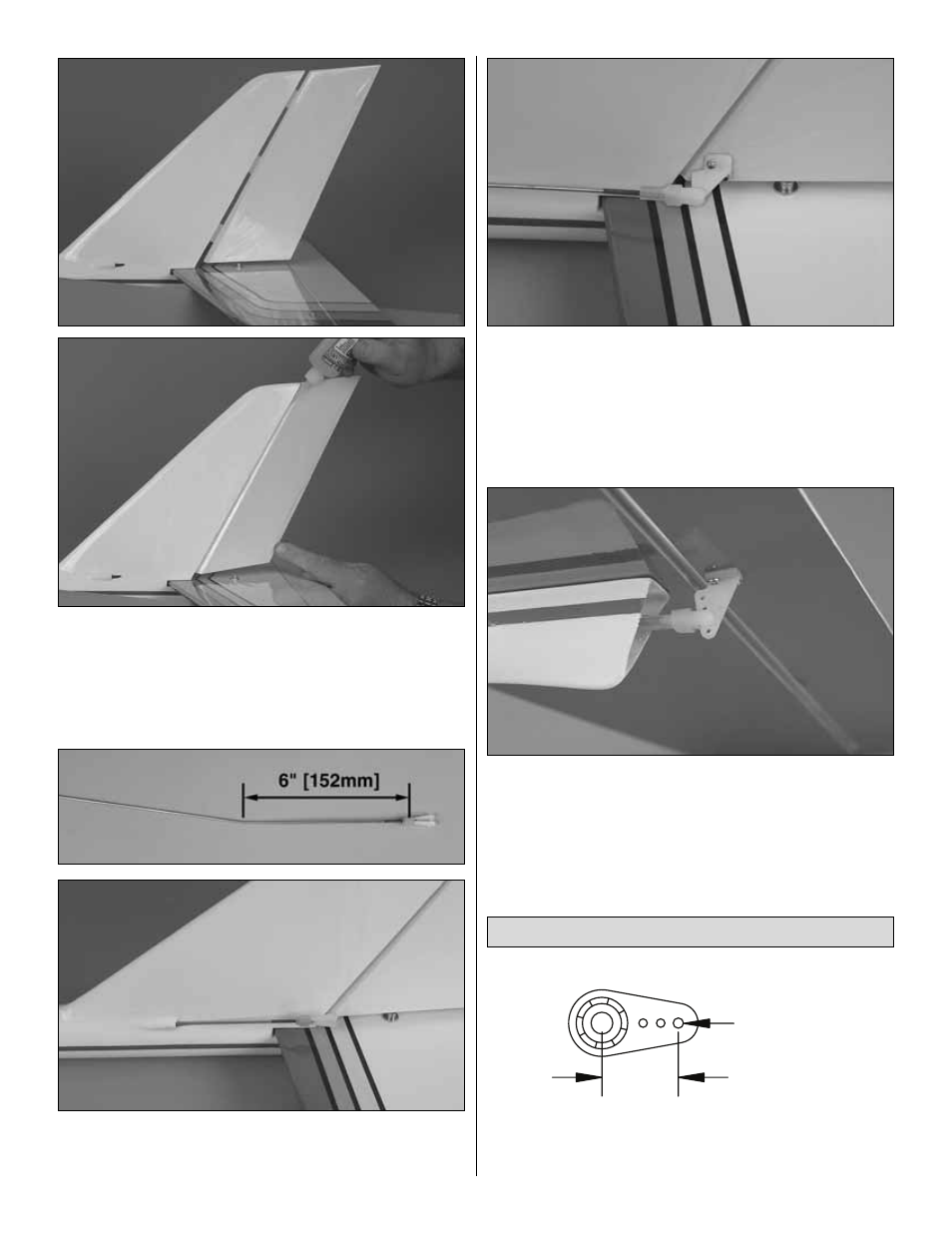

4. Fit the rudder to the fin with the hinges. Glue both sides

of each hinge with 3 drops of thin CA.

❏

5. Screw a nylon clevis 15 turns onto both of the 42"

[1067mm] pushrods. Slide a silicone retainer on each of the
nylon clevises.

❏

6. If necessary, bend a slight angle in one of the pushrods

6" [150mm] from the end of the clevis. Slide this pushrod into
the rudder pushrod tube.

❏

7. Align the rudder control horn with the rudder pushrod.

Glue the control horn to the rudder with a small drop of CA.

❏

8. Drill two 1/16" [1.6mm] holes through the rudder.

Secure the control horn with two 2-56 x 3/4" [19mm] SHCS
and the nylon control horn back. Attach the clevis to the
outer hole on the control horn.

❏

9. Slide the second 42" [1067mm] pushrod into the

elevator pushrod tube from the rear.

❏

10. Mount the elevator control horn with two 2-56 x 5/8"

[15.9mm] screws. Attach the clevis to the second from the
outer hole.

❏

1. Make two single sided servo arms that have the outer

hole 1/2" [13mm] from the servo mounting hole. Enlarge the
outer hole with a 5/64" drill bit.

1/2" [13mm]

5/64" [2mm]

Install the Fuselage Servos
