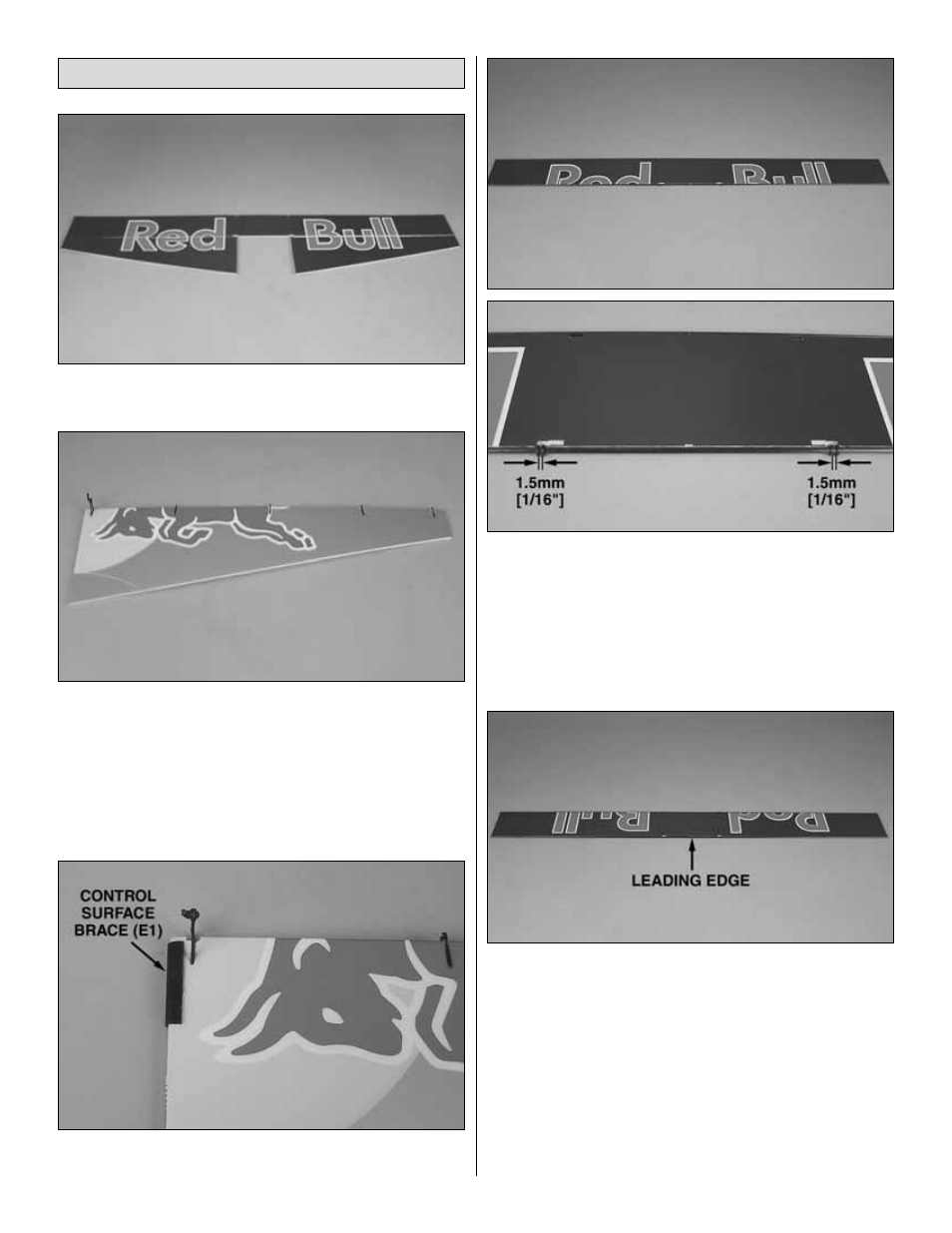

Great Planes Edge 540 FlatOuts 3D EP ARF - GPMA1113 - Manual (Page 9)

❏
1. Cut the wing and ailerons from the foam sheet.
❏
2. Insert offset Z-bend clevises (A2) into opposing sides
of two clip hinge control horns. Following the Expert Tip
previously described, use the 3 x 900mm [1/8" x 35-1/2"] wing
trailing edge tube as a guide to glue four hinges and a control
horn into each aileron. The control horns should protrude from
the bottom of the ailerons, and the offset Z-bend clevises
should be on the inboard sides of the horns. Remove the tube
once the CA has hardened.
❏
3. Glue a control surface brace (E1) onto the roots of
the ailerons.
❏
4. Slide four hinge retainer rings (C3) onto the wing
trailing edge tube. Position the rings so that they align with
the outer slots in the TE of the wing. Secure each retainer
with a drop of glue on the outside of the gap. Glue the
trailing edge tube to the TE of the wing. Be careful not to get
glue between the rings.
❏
5. Glue the 3 x 900mm [1/8" x 35-1/2"] wing leading
edge tube to the LE of the wing.
Assemble the Wing
9
