Finish the landing gear – Great Planes Edge 540 FlatOuts 3D EP ARF - GPMA1113 User Manual
Page 13

❏

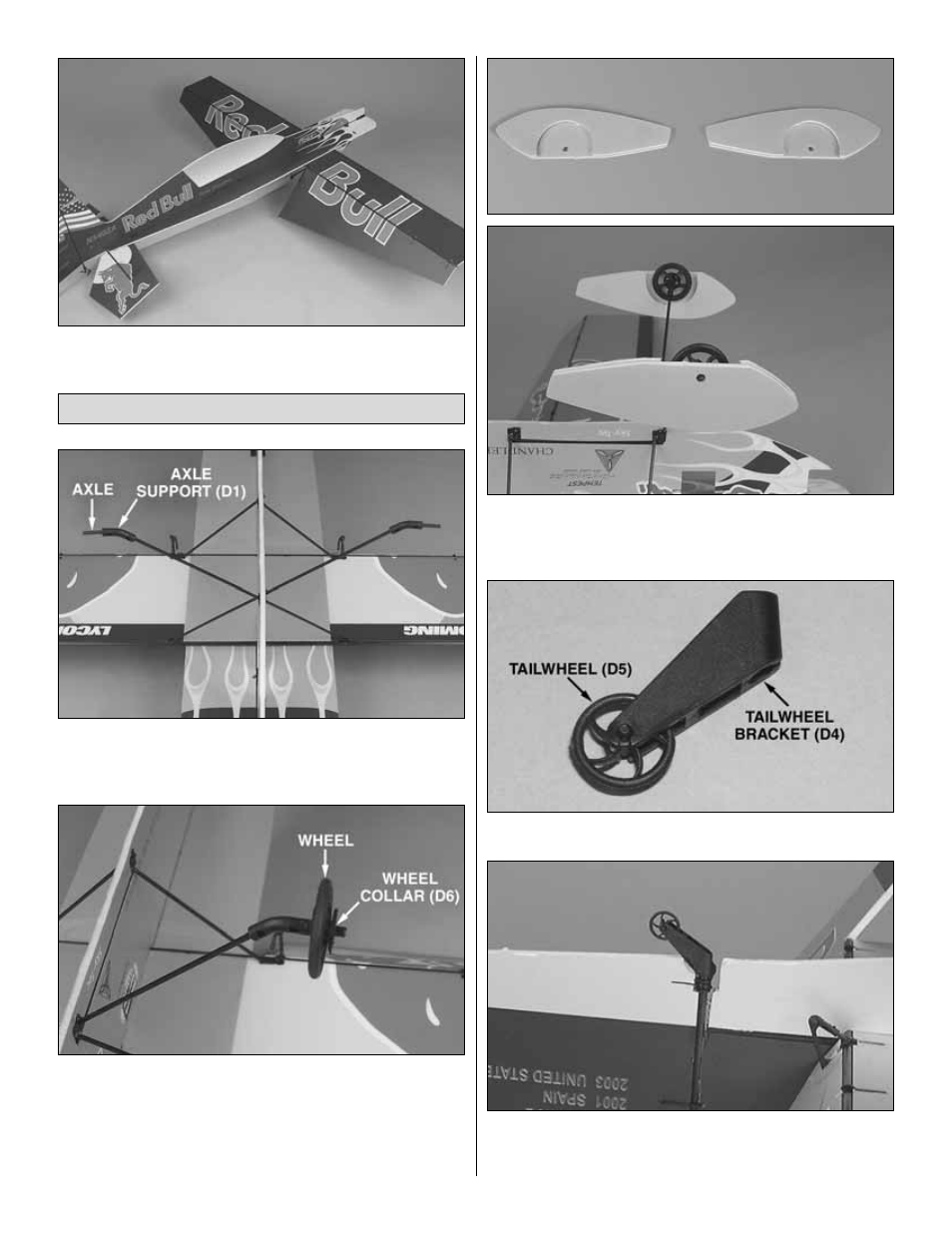

21. Snap the ailerons onto the wing TE.
❏
1. Install a 2 x 17mm [5/64" x 21/32"] axle and axle
support (D1) onto each landing gear leg. Make sure that
the axles are perpendicular to the centerline.
❏
2. Slide the wheels onto the axles and secure them with a
wheel collar (D6). The flat side of the wheel collar should be
toward the wheel. Secure the wheel collar with a drop of glue
in the
teeth opposite the wheels. Align the wheels with the
centerline and secure the axles and supports with a drop of
glue through the holes in both sides of the axle supports.
❏
3. Make two wheel pants by gluing the inner and outer
wheel pant parts together. Be sure to make a right and a
left. Glue the inside of both wheel pants to the wheel collars.
❏
4. Snap the tailwheel (D5) into the tailwheel bracket (D4).
❏
5. Slide the tailwheel bracket over the rudder and rudder
post. Glue the bracket to the rudder
only. Do not glue the
bracket to the rudder post.
