Page 11

❏

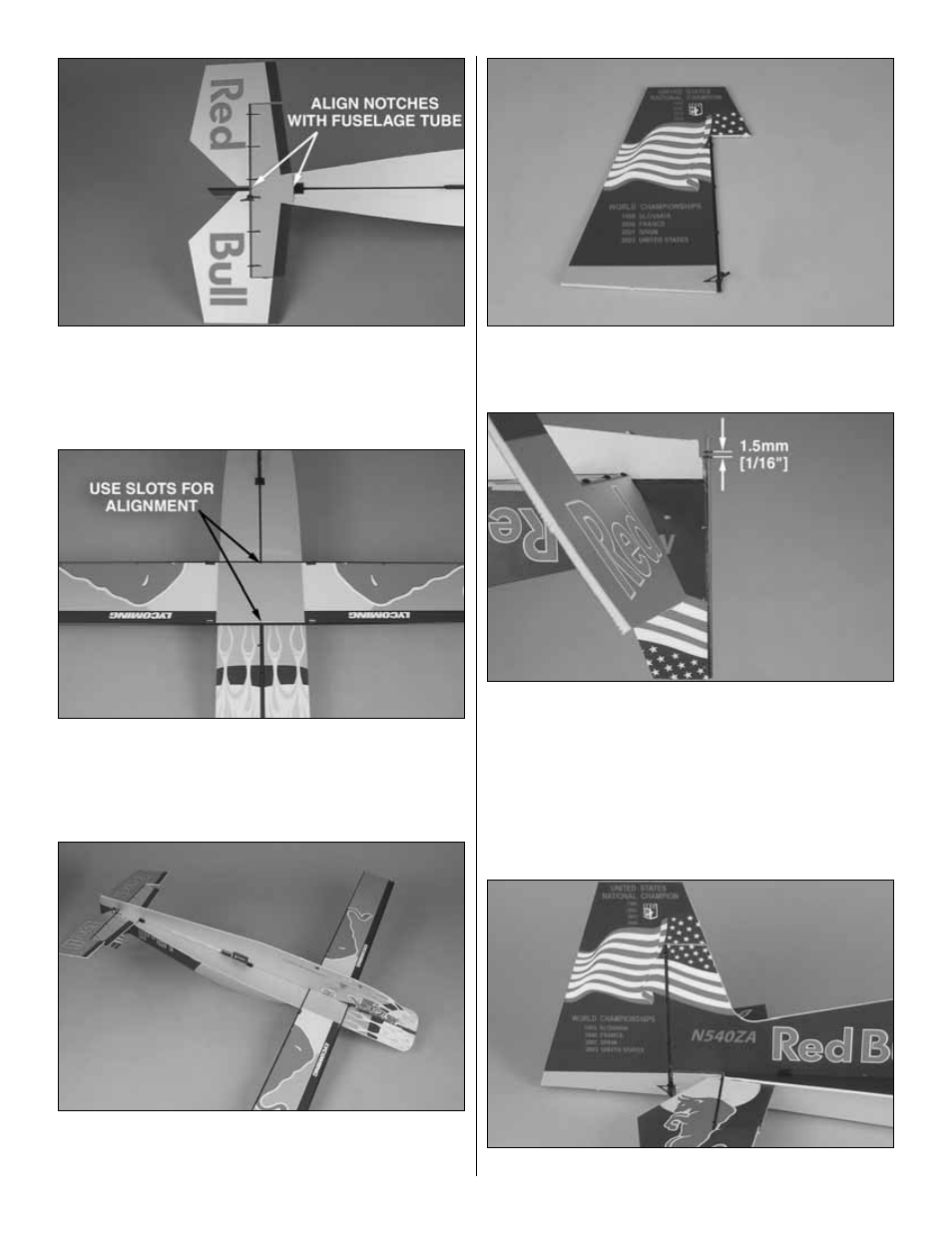

7. Glue the stabilizer into position with the leading edge
of the stab butted against the rear fuselage joiner. Align the
notches in the stab with the fuselage tube.
❏
8. Glue the wing into position with the leading edge of the
wing against the rear end of fuselage doubler tube. Align the
notches in the wing with the fuselage tube.
❏
9. Glue the lower vertical fuselage half to the fuselage
tube. Make sure to keep it parallel with the upper half and
perpendicular to the horizontal fuselage.
❏
10. Using the 3 x 154mm [1/8" x 6"] rudder post tube as
a guide, glue three clip hinges and a clip hinge control horn
to the rudder.
❏
11. Remove the rudder post tube from the rudder. Slide
two hinge retainer rings onto the bottom of the rudder post.
Align the rings with the slot in the TE of the fuselage. Secure
each ring with a drop of glue on the outside. Be careful not
to get glue between the rings.
❏
12. Glue the rudder post tube to the TE of the vertical fuse.
❏
13. Snap the rudder onto the rudder post.
11
