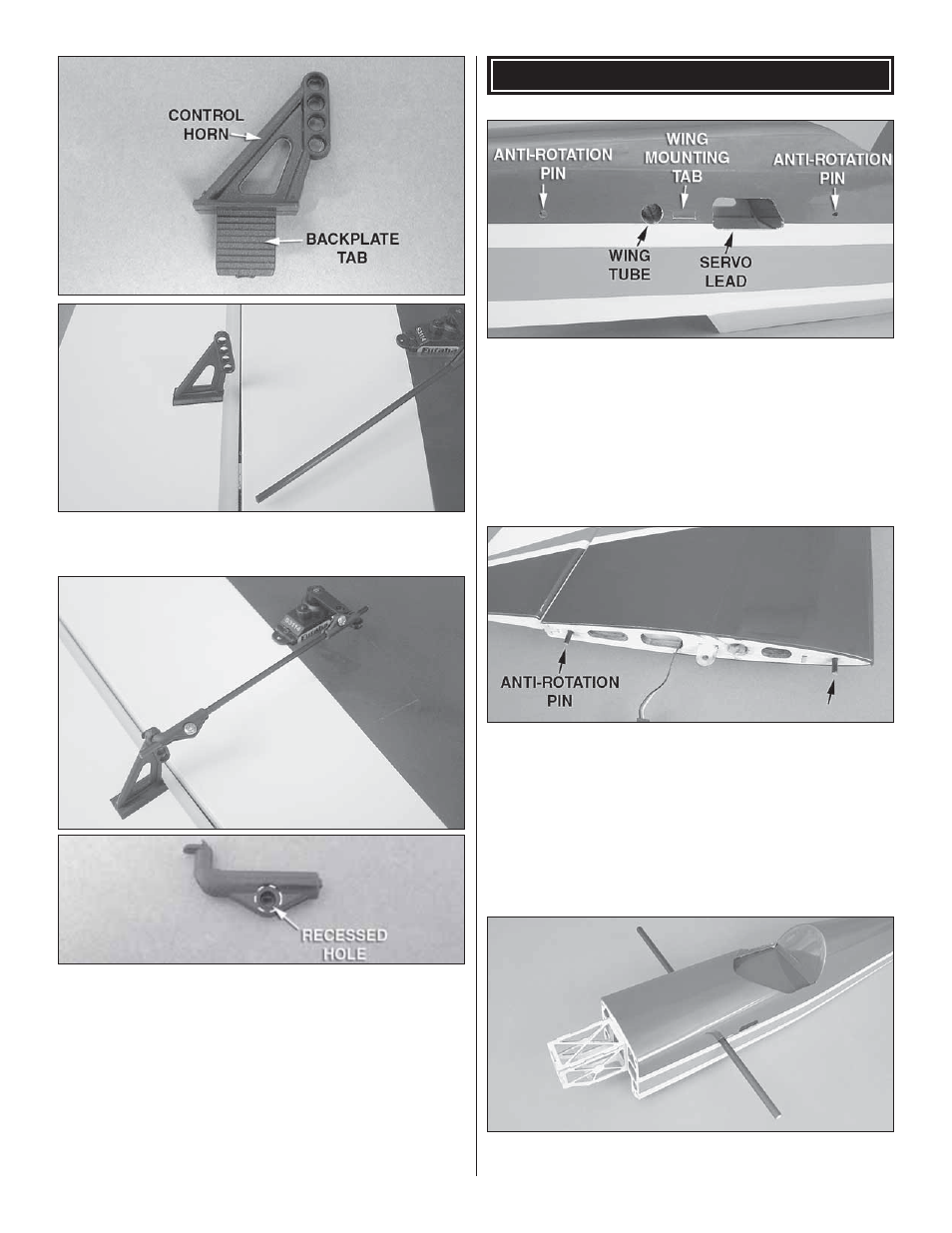

10. Coat the control horn backplate tabs with medium

CA and press them into the slots in the ailerons.

❏

11. Attach an adjustable clevis to the outer hole in each

aileron control horn. Fit the other ends of the pushrods
into the clevises on the control horns. With the servo arms
perpendicular to the servo cases and the ailerons in the
neutral positions, center the length of the pushrods between
the two clevises. When satisfi ed, lock the clevises onto the
pushrods by threading a 2 x 4mm screw into each clevis
screw hole. The screw head should fi t into the recessed hole
in the adjustable clevises as shown (installing the screws
in the wrong direction may not properly tighten the
clevises onto the pushrods).

INSTALL THE WING PANELS

❏

1. Trim the covering in the fuselage for the wing tube, wing

mounting tabs, servo lead holes, and anti-rotation pins.

❏

2. Glue the 3 x 15mm carbon fi ber anti-rotation pins

halfway into the holes in the wing root ribs.

❏

3. Slide the carbon wing tube into the wing tube channel

in the fuselage and center its position.
