10
❏

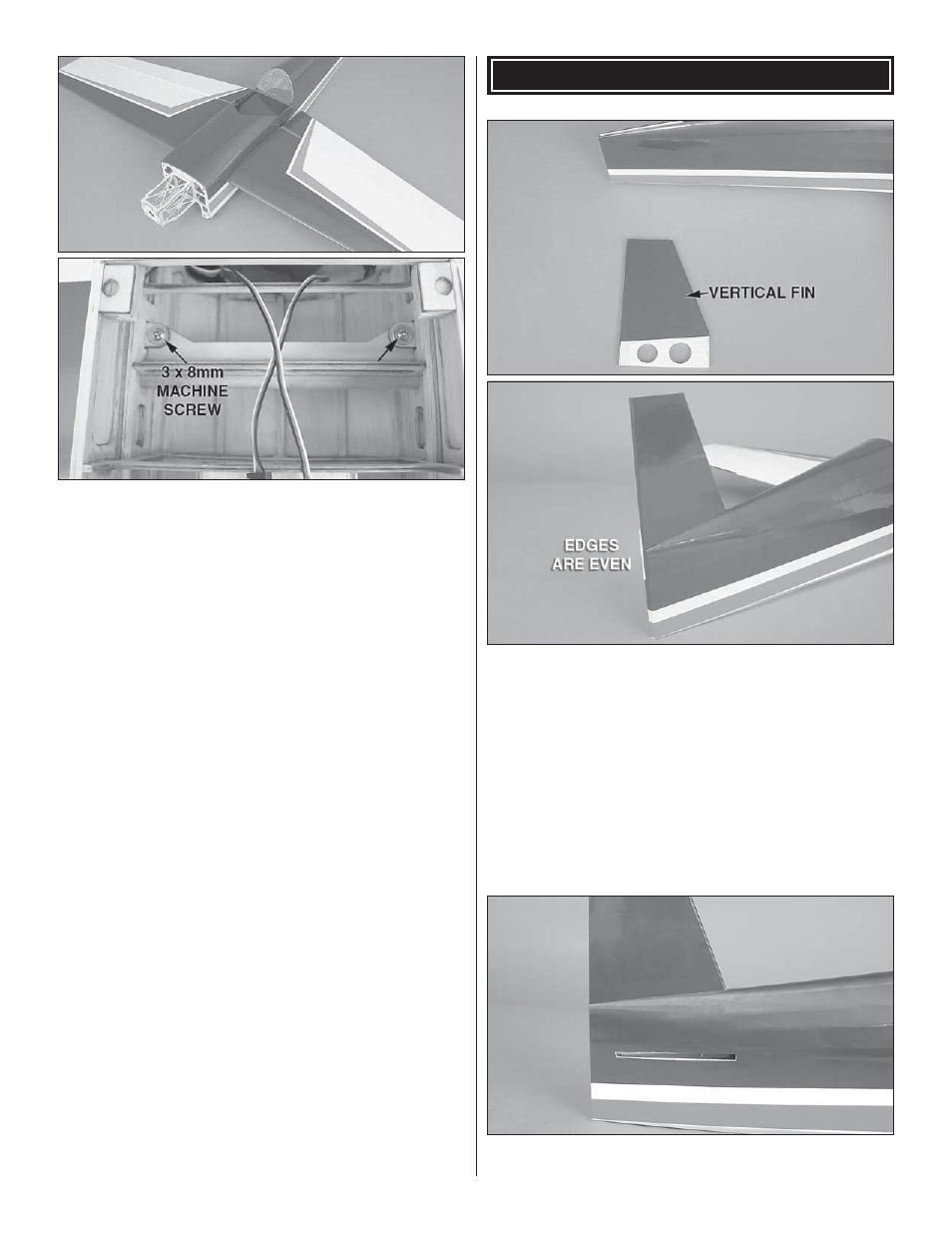

4. Slide the wing panels onto the wing tube and push them
in place against the fuselage sides by fi tting the anti-rotation
pins into their mating holes. Use two 3 x 8mm machine
screws, two 3mm fl at washers and threadlocking compound
to secure the wing panels to the fuselage.
ASSEMBLE THE TAIL SECTION
❏
1. Test fi t the vertical fi n into the slot at the aft end of the
fuselage. Confi rm that the fi n is perpendicular to the wings. If
not, carefully sand the slot as necessary until the correct fi t is
achieved. When satisfi ed, glue the fi n into the slot.
❏
2. Trim the covering from the horizontal stabilizer slot
in the fuselage.
