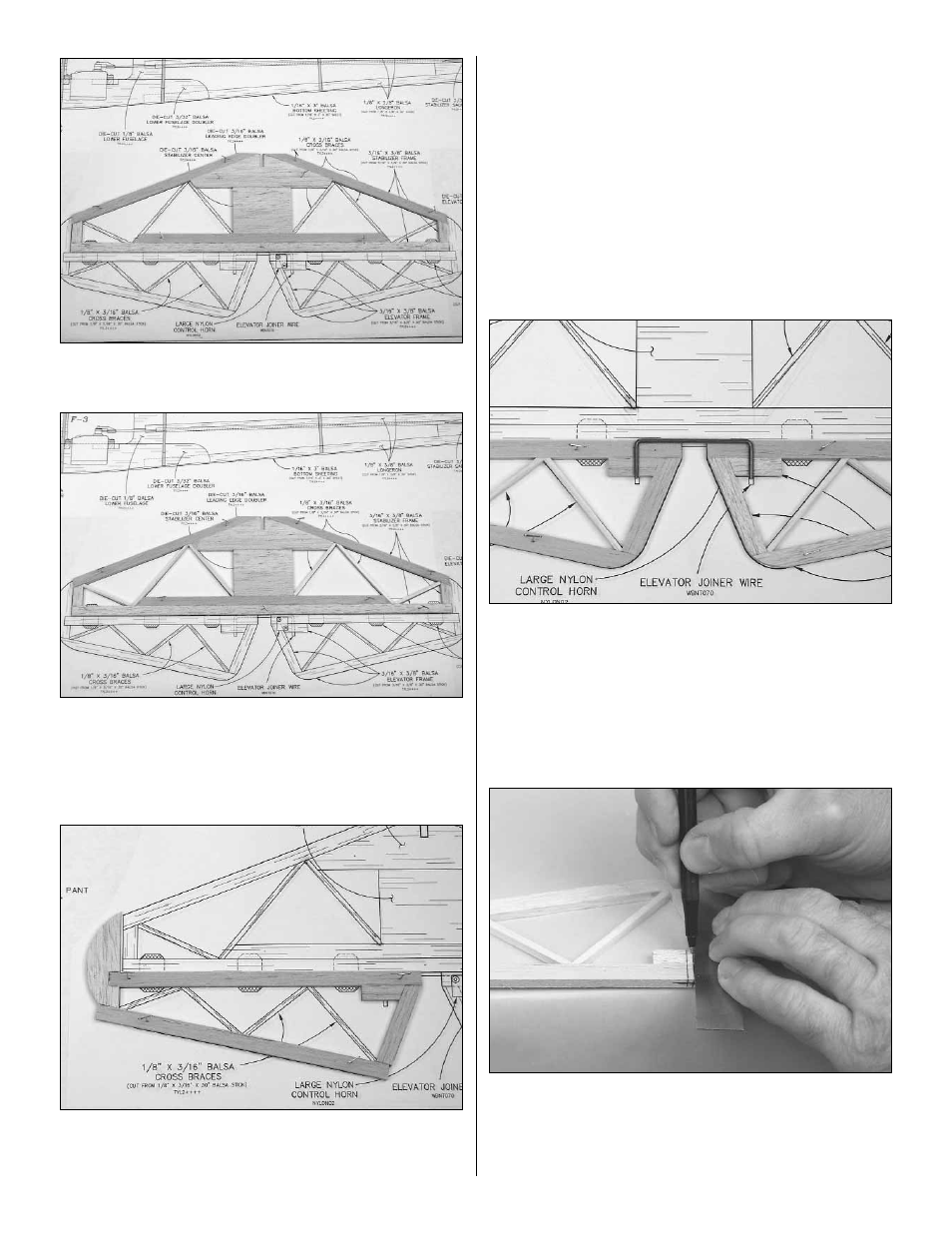

❏ 4. Finish constructing the stab frame from a 3/16" x 3/8" x
30" balsa stick.
❏
5. From the 1/8" x 3/16" x 30" balsa stick, cut and glue the
stab braces to the stab frame.
❏
6. Remove the stab from your building board. Inspect,
glue and sand as you did with the fin.
❏ ❏
7. From a 3/16" x 3/8" x 30" balsa stick, cut the elevator
leading edge to length and pin it over the elevator plan. Pin
and glue the die-cut 3/16" balsa elevator counter balance
to the LE. Construct the remaining elevator frame from a
3/16" x 3/8" x 30" balsa stick.
❏ ❏ 8. From the 1/8" x 3/16" x 30" balsa stick, cut and glue
the elevator cross braces to the frame.
❏ 9. Repeat steps 7 and 8 to build the second elevator half.
❏
10. Remove the elevators from your building board.
Inspect, glue and sand as you did with the fin.
❏ 11. Pin both elevators in position over the plan. Lay the
3/32" elevator joiner wire on top of the elevators in the
position shown on the plan. Use a pencil to lightly mark the
outline of the joiner wire on the elevators.
❏ 12. Using a straightedge, extend the sidelines of the
elevator joiner outline forward to the leading edge. Also, use
a Precision Hinge Marking Tool to draw a centerline on
the leading edge. Using these lines, you can determine
exactly where to drill the holes for the elevator joiner wire.
8
