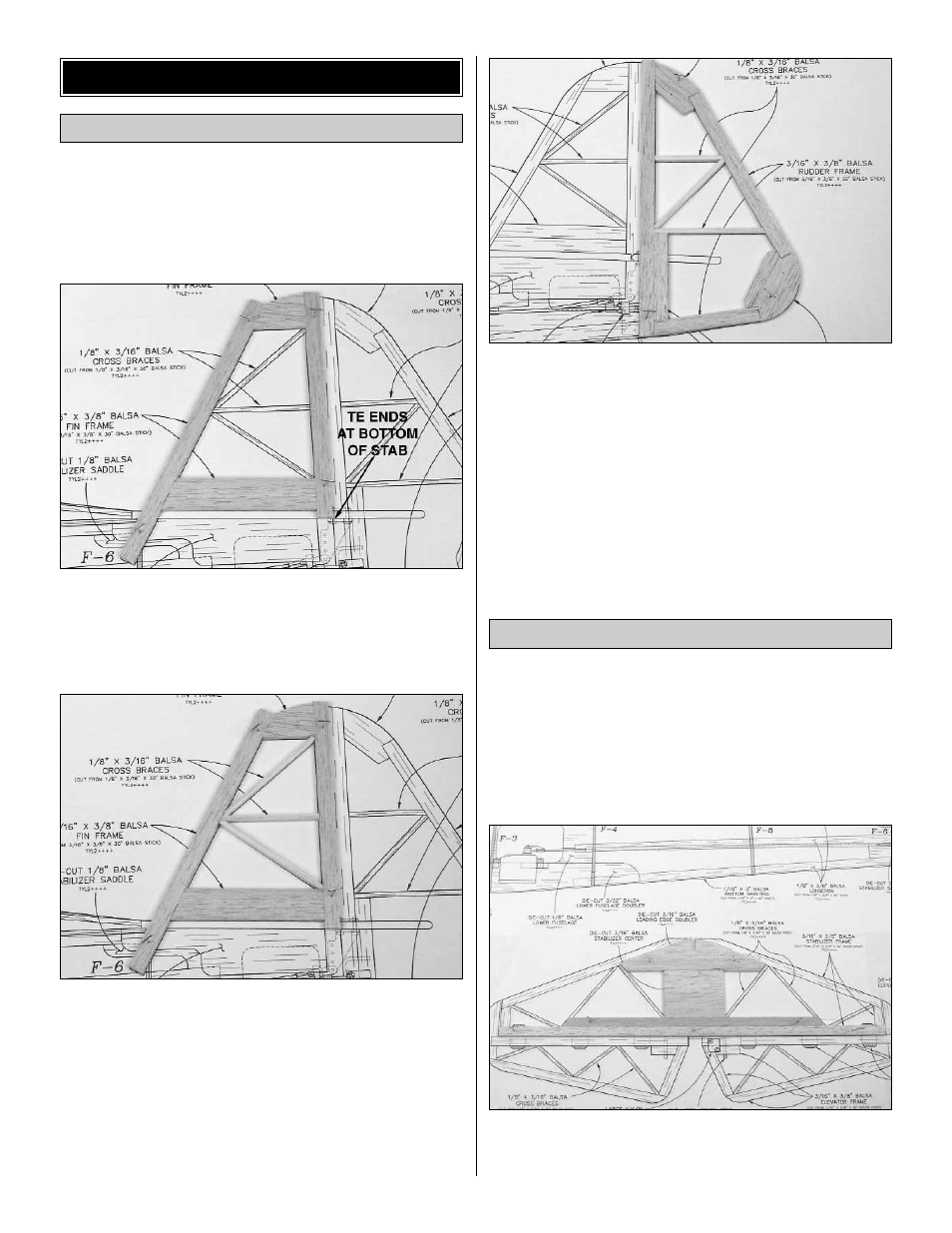

❏ 1. Cover the fin/rudder portion of the plan with wax paper
or Great Planes Plan Protector.
❏ 2. Pin the die-cut 3/16" balsa fin frame V-1 in position on
the fuse plan.
❏ 3. From one of the 3/16" x 3/8" x 30" balsa sticks, cut and
glue the fin frame together. Note that there are two pieces
along the bottom of the fin and that the TE ends at the
bottom of the stabilizer.
❏
4. From the 1/8" x 3/16" x 30" balsa stick, cut and glue the
fin cross braces to the frame.
❏
5. Remove the fin from your building board. Inspect all the
glue joints and add CA to any joints that don't look strong.
Fill any gaps with balsa sanding dust and a drop or two of
thin CA.
❏
6. Build the rudder frame from the die-cut 3/16" balsa
R-1 and R-2 frame pieces and leftover 3/16" x 3/8" balsa stick.
❏ 7. From the leftover 1/8" x 3/16" balsa stick, cut and glue
the rudder ribs and cross brace to the frame.
❏
8. Remove the rudder from your building board. Inspect all
the glue joints and add CA to any joints that don't look strong.
First, sand both sides of the rudder and fin flat and even.
Then, sand the rudder and fin to shape using the fuse plan
as a guide. Be careful that you don't sand any area too thin.
❏
1. Cover the stabilizer/elevator portion of the plan with
waxed paper or Plan Protector.
❏
2. From one of the 3/16" x 3/8" x 30" balsa sticks, cut the
stabilizer trailing edge and trailing edge doubler to
match the stabilizer plan. Glue the TE doubler to the TE and
pin them over the plan.
❏
3. Pin the die-cut 3/16" balsa leading edge doubler S-1
and stab center S-2 in position. Glue S-2 to S-1 and to the
front of the stab TE doubler.
Build the Stabilizer & Elevators
Build the Fin & Rudder
BUILD THE TAIL SURFACES
7
