16

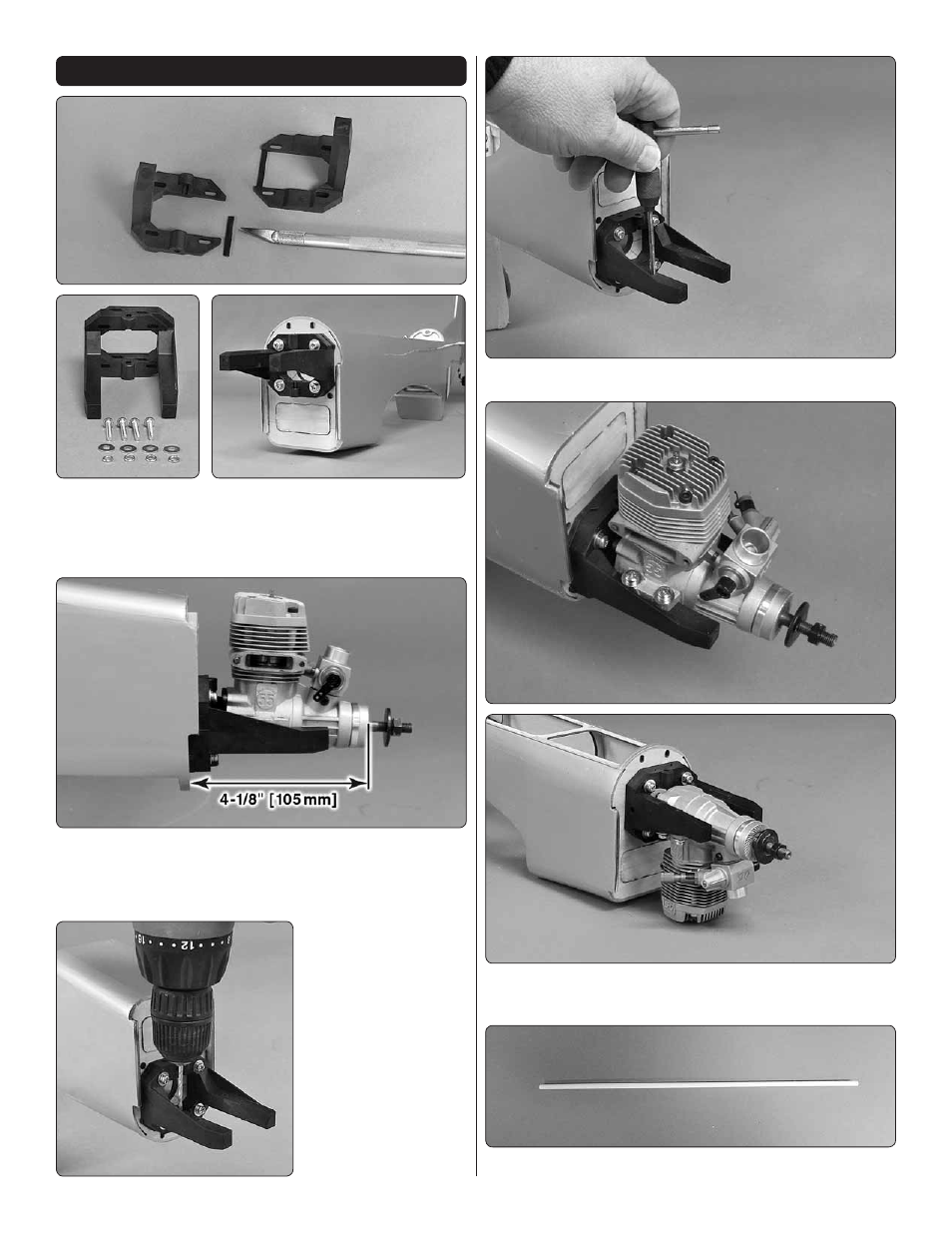

ENGINE INSTALLATION
❏
1. Cut the tabs from the motor mount. Slide the motor
mount together. Locate the four 6-32 x 1" [25mm], #6 fl at
washers and #6 lock washers. Install the mount to the fi rewall
as shown. The engine will be mounted inverted.
❏
2. Place the engine onto the engine mount, spacing it 4-1/8"
[105mm] from the fi rewall. Mark the location of mounting holes
for the engine onto the motor mount.
❏
3. Drill four 7/64"
[2.8mm] holes on each
of the marks, drilling
through the engine
mount.
❏
4. Tap each of the four holes with a 6-32 tap.
❏
5. Mount the engine with four 6-32 x 3/4" [19mm] screws,
#6 fl at washer and #6 lock washers.
❏
6. Locate the 11-1/2" plastic pushrod tube.
