5.2.3 Product desciption, rear panel connections
5.2.4 Communications ports
The TX150 and TXF200 provide a RS232 and a USB data port for communication with a
PC running Grant Labwise
™ software. Labwise™ provides the abilty to remotely
configure, control, monitor programs as well as log program temperature data.
Only use a RS232 cable supplied by Grant instruments.
The USB cable is a Type A to Type B style
5.2.5 Switched relay port
An internal relay provides switch over contacts that can be used to control external
equipment. See Section 5.1.5 for details of the relay contacts and connector type.
5.2.6 External probe input
For connecting an external PT1000 thermocouple temperature probe available from
Grant instruments
RS232 communcations
port

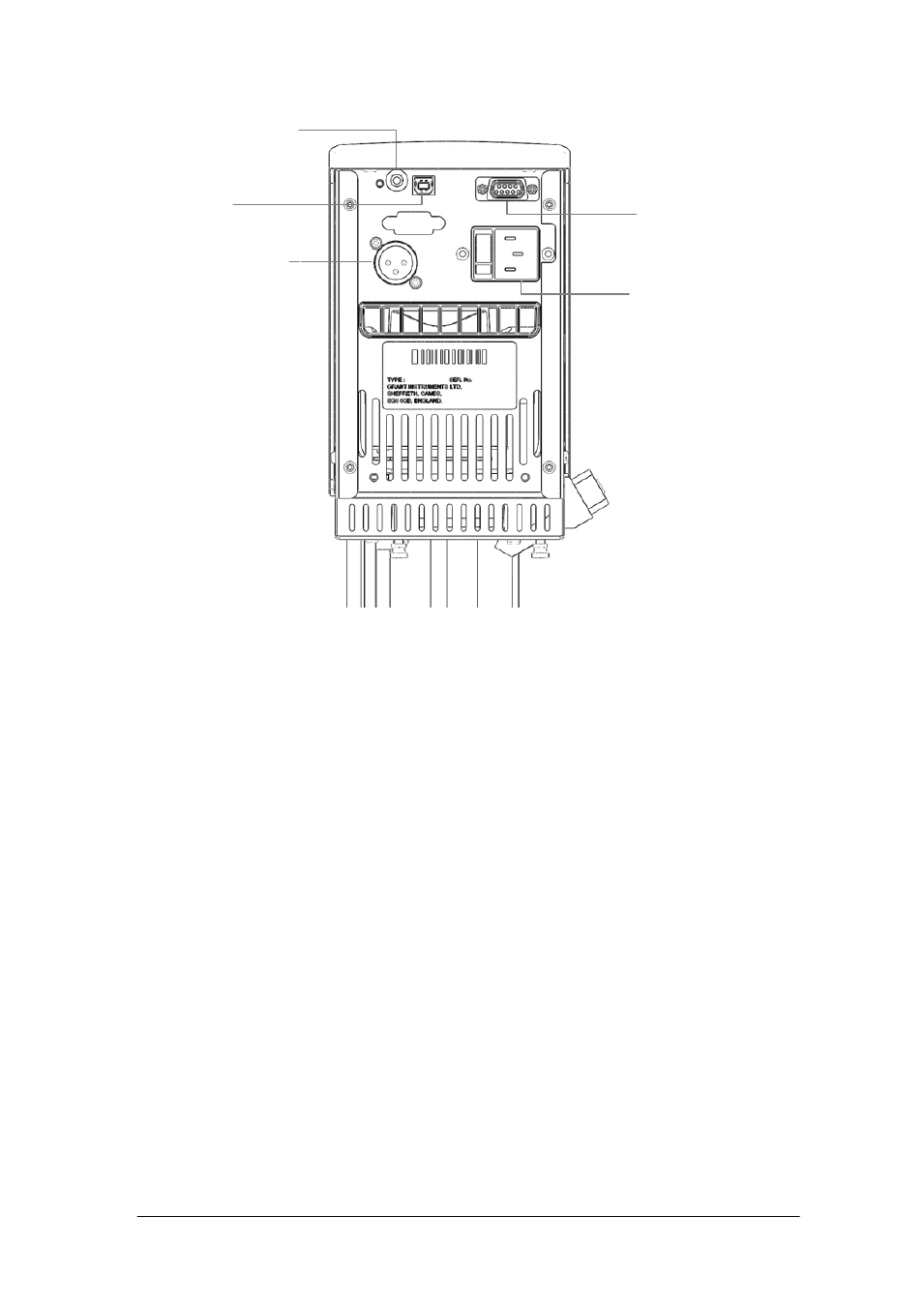

Mains power input
USB port
Switched relay port
External probe input
