5.2 Using the LTC4

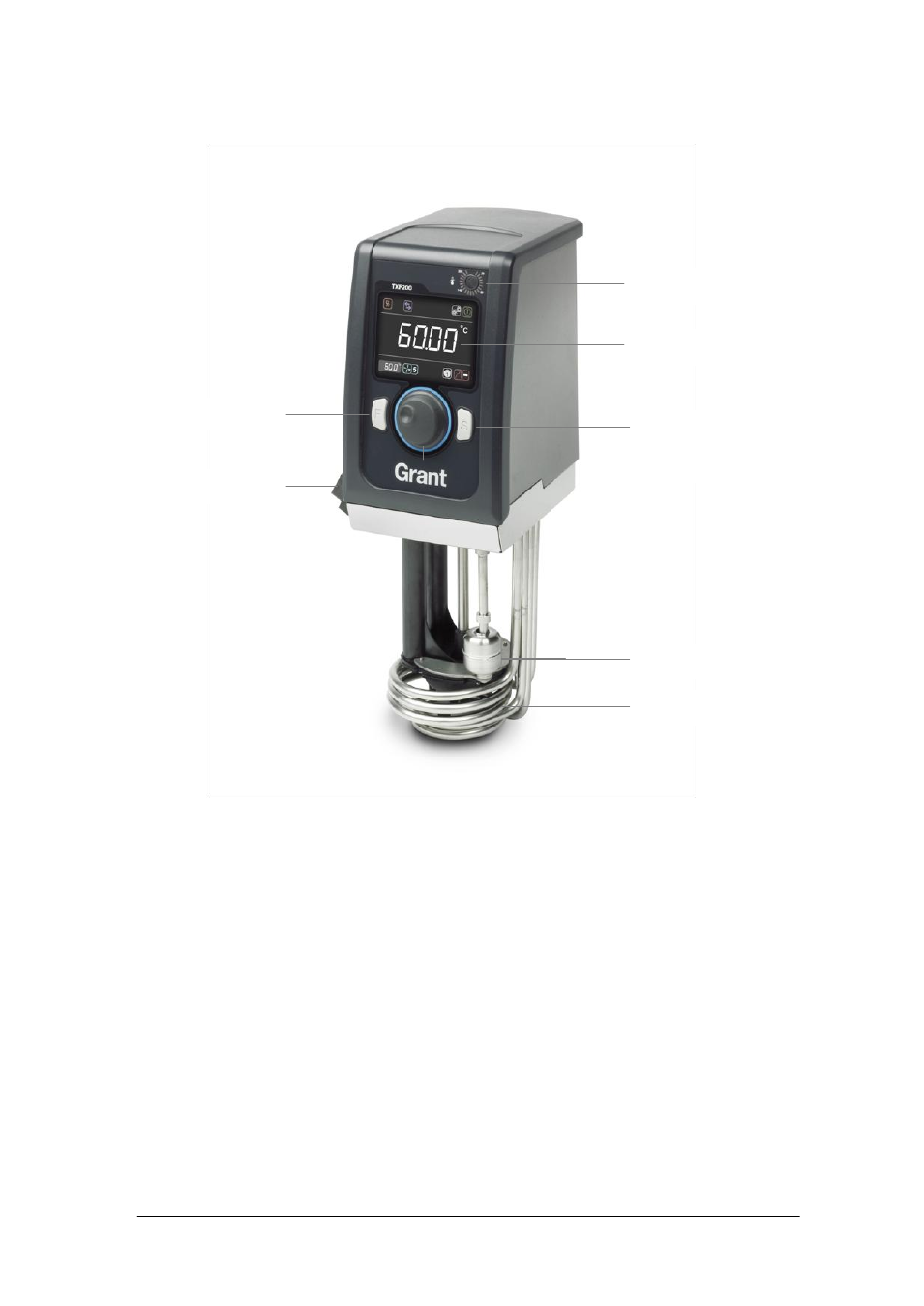

5.2.1 Product description, control unit
5.2.2 Product description, user interface and controls
The TX150 features a full colour graphic display, a main dial and two buttons F and S.
All functions (setting temperature, pump speed, countdown timer, presets, programs
settings and standby mode) can be configured from the home screen. Navigation around
the home screen is achieved by rotating the main dial which moves a white curser to
highlight function icons. Pressing the S button whilst the icon is highlighted will change
the colour of the curser to red, make the icon active and allow changes to be made, or in
the case of the settings icon, further menus to be displayed.
The primary function of the F button is to exit functions and menus. If F is pressed when
in the home screen whilst the cursor is white the settings menu is displayed
Over-temperature dial
Full colour display
Select button
Main dial
Float switch
Heater coils
Pump outlet plate
Function button
