MOUNTING YOUR MICRO SPOT SERIES SPEAKERS
The Micro Spot VC comes equipped with a stand mount bracket kit,
while the Powered Micro Spot is supplied with a bracket kit that
allows either stand or wall mounting. Wall mount options are
available for the Micro Spot VC from any Galaxy Audio dealer, or
online at
Stand Mounting

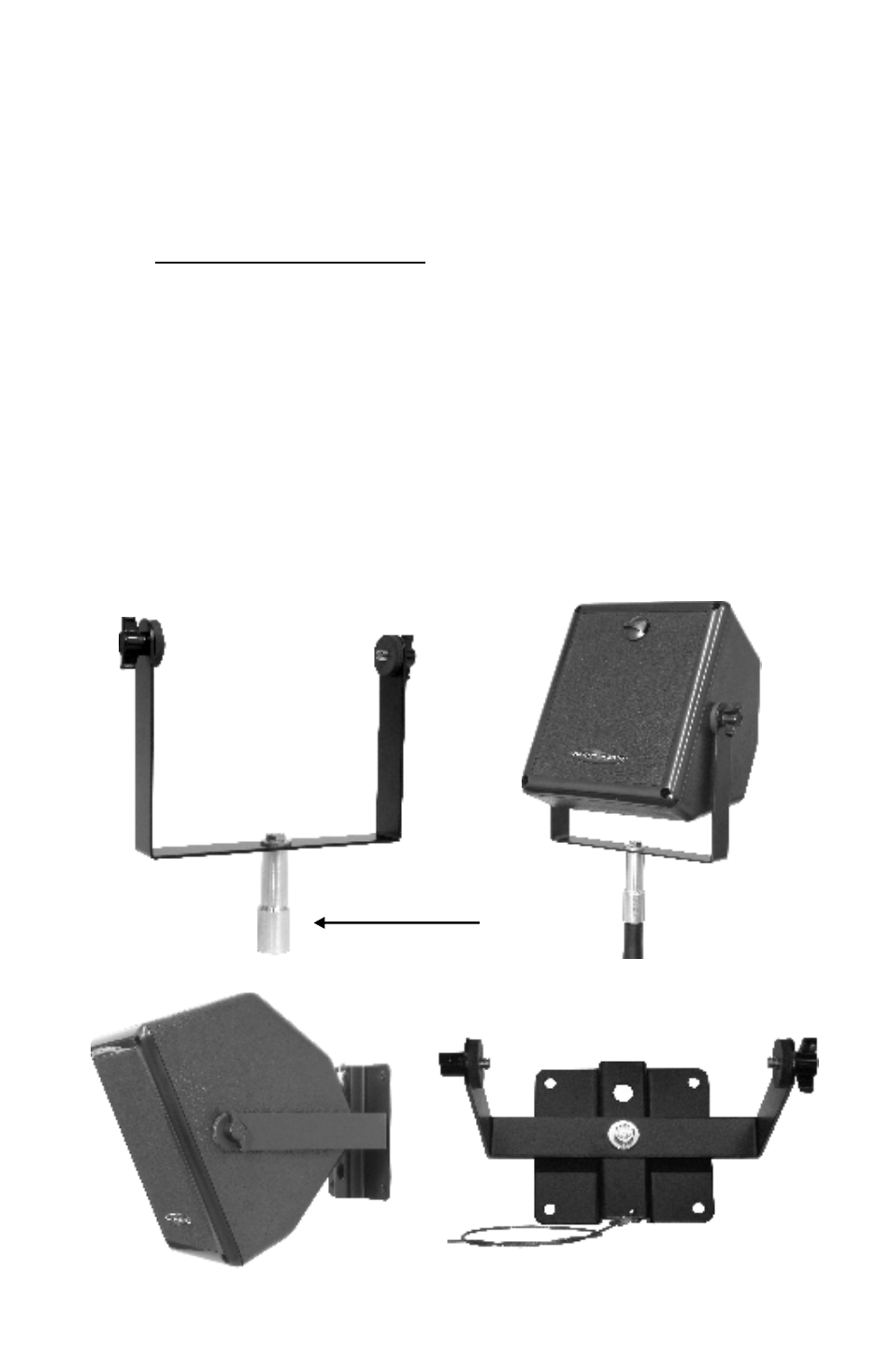

To install the yoke bracket, attach the SA-1 to the yoke bracket
using the included ¼-20 hex bolt and washer as shown in picture
below (A.1). Tighten using a 7/16 wrench or socket. The yoke
bracket assembly can now be screwed on to the microphone
stand. Remove the two plastic threaded inserts from the T-nuts in
each side of the Micro Spot with a small flat blade screwdriver.
Place the Micro Spot into position so that the wing screws at the
ends of the yoke line up with the T-nuts in the cabinet. Tighten the
wing screws by hand.
www.galaxyaudio.com
(A.1)
(SA-1)
Stand Adaptor
