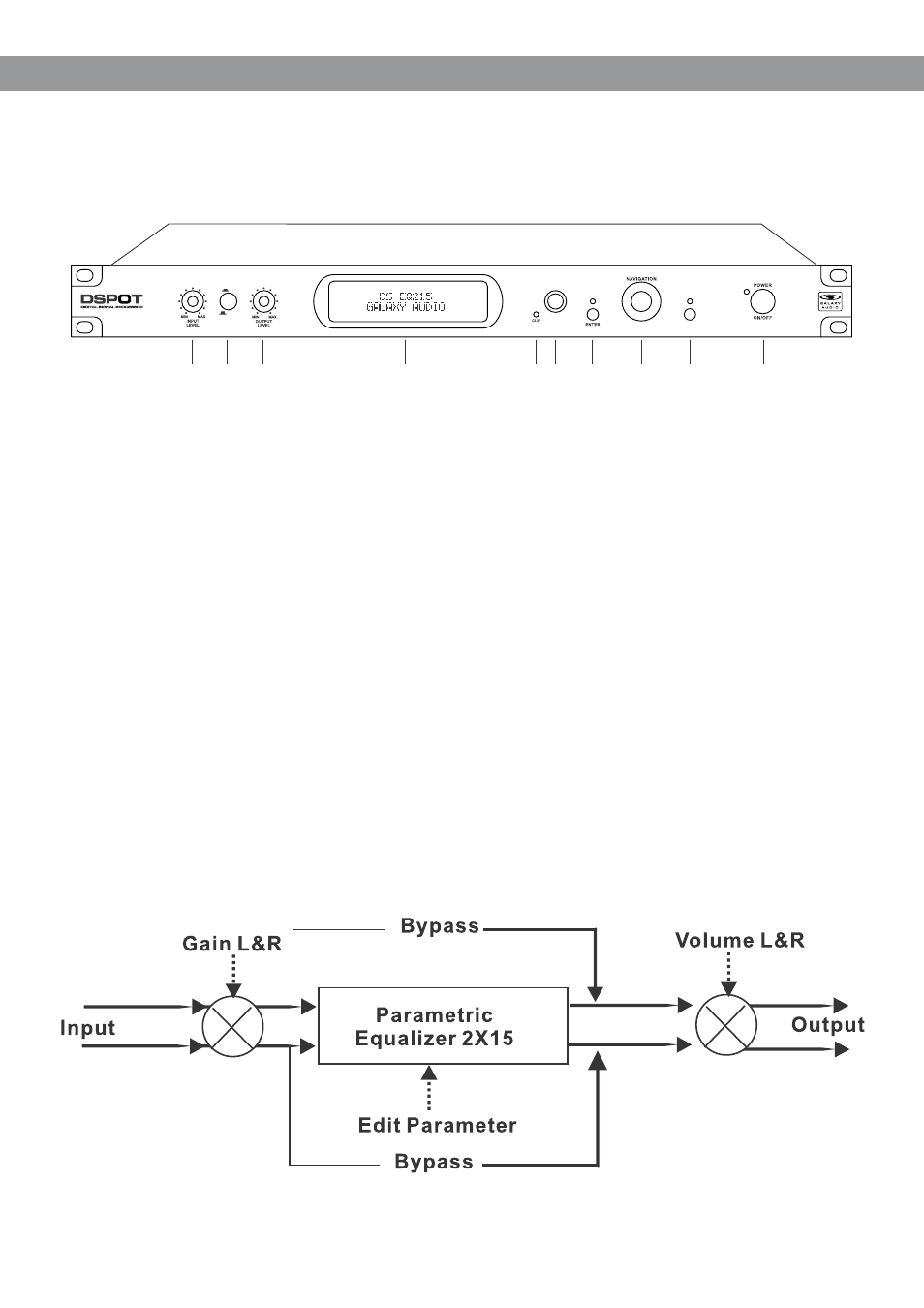

Described below are the functions of the front panel control buttons and encoders for the DS-EQ215
Parametric Equalizer.
® DS-EQ215
IN
OUT
EQUALIZER
PARAMETER
ESCAPE
3
1 2 3 4 5 6 7 8 9 10
1 - Input Level: Input Gain Left, Right
2 - EQ Bypass
3 - Output Level: Output Volume Left, Right
4 - LCD Display
5 - Clip LED: Process Overflow
6 - Parameter Key: Parameter Variation
7 - Enter Key: Enters Sub-Menus
8 - Navigation Key: Navigation Menus
9 - Escape Key: Exit Sub-Menus
10 - Power Button
