Futaba 7FGH - Manual (Page 15)

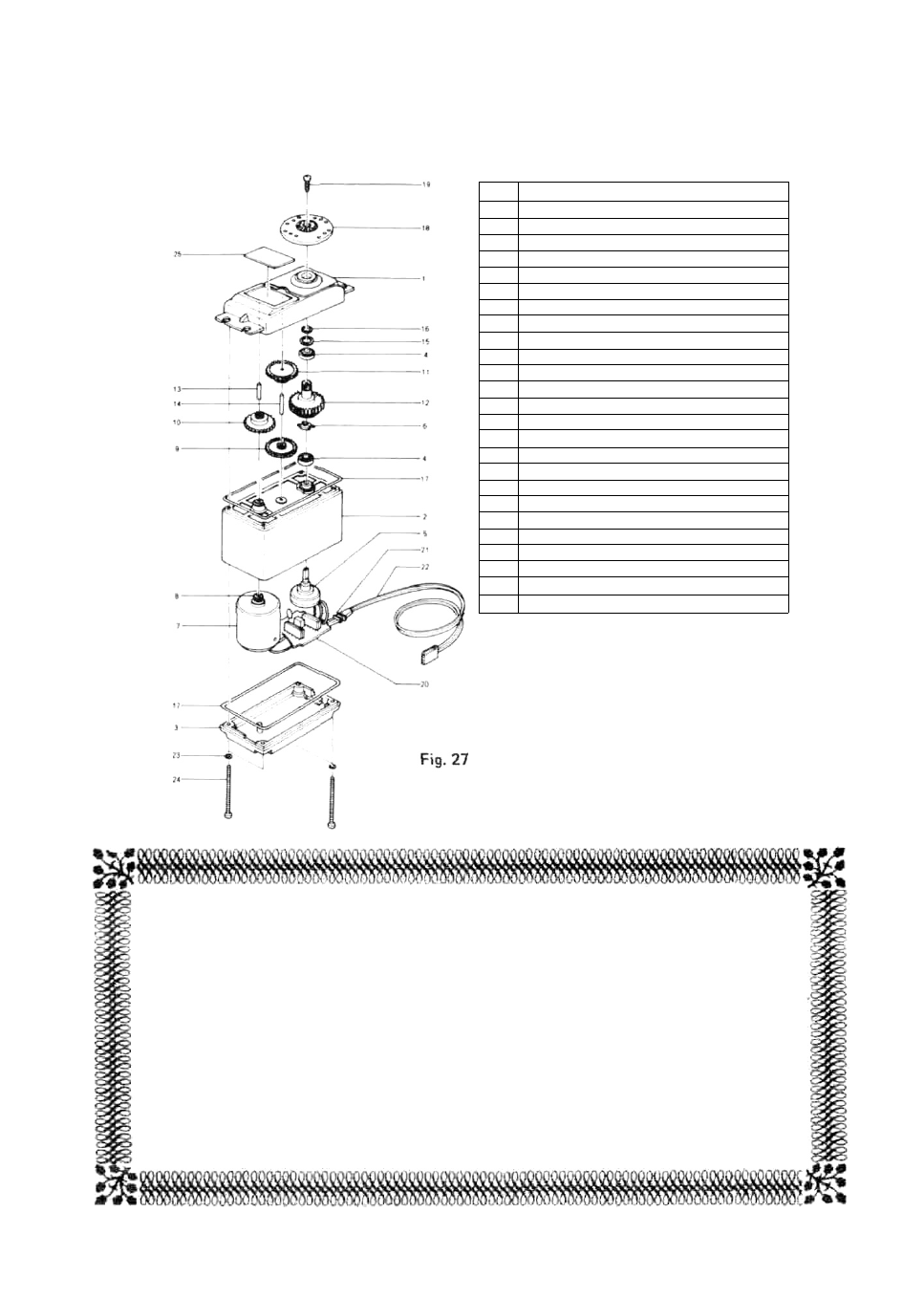

FP-130 EXPLODED VIEW
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
Part Name Part No.
Upper case FCS 30
Middle case FCS-30
Bottom case FCS 30
Ball bearing S04130
Potentiometer 139995
VR drive plate S02753
Motor S91243
Motor pinion S02461
1st gear FGS30
2nd gear FGS-30
3rd gear FGS 30
Final gear FGS-30
2nd shaft S02481
Intermediate shaft S02480
Spacer washer 0.3T S02486
Seal ring S90415
0-ring S90426
Servo horn D FSH-6W
Horn mounting screw FSH-41
Printed wiring board S130 AS1220
Lead wire packing S90045
S130 3PB-WRB-300 FPC-8M
Screw 0-ring S90410
Case mounting screw J50085
S130 Nameplate S60101
GUARANTEE
Your NEW FUTABA Digital Proportional R/C system is guaranteed against defects in
workmanship and material for 180 days from the date of purchase when the attached
registration card is returned to us within ten days of purchase.
This Guarantee is null and void if the R/C system has been improperly handled,
damaged in a crash, or tampered with and does not cover the replacement of plastic
housings or electronic components damaged due to the use of improper voltages.
When service is required, please take your equipment to your local authorized service
station or ship it directly to us. All postage, shipping, and insurance changes must be
paid by the user.
This guarantee only applies to the continental U.S.A., Hawaii, and Alaska.
