Futaba 7FGH User Manual
Page 12

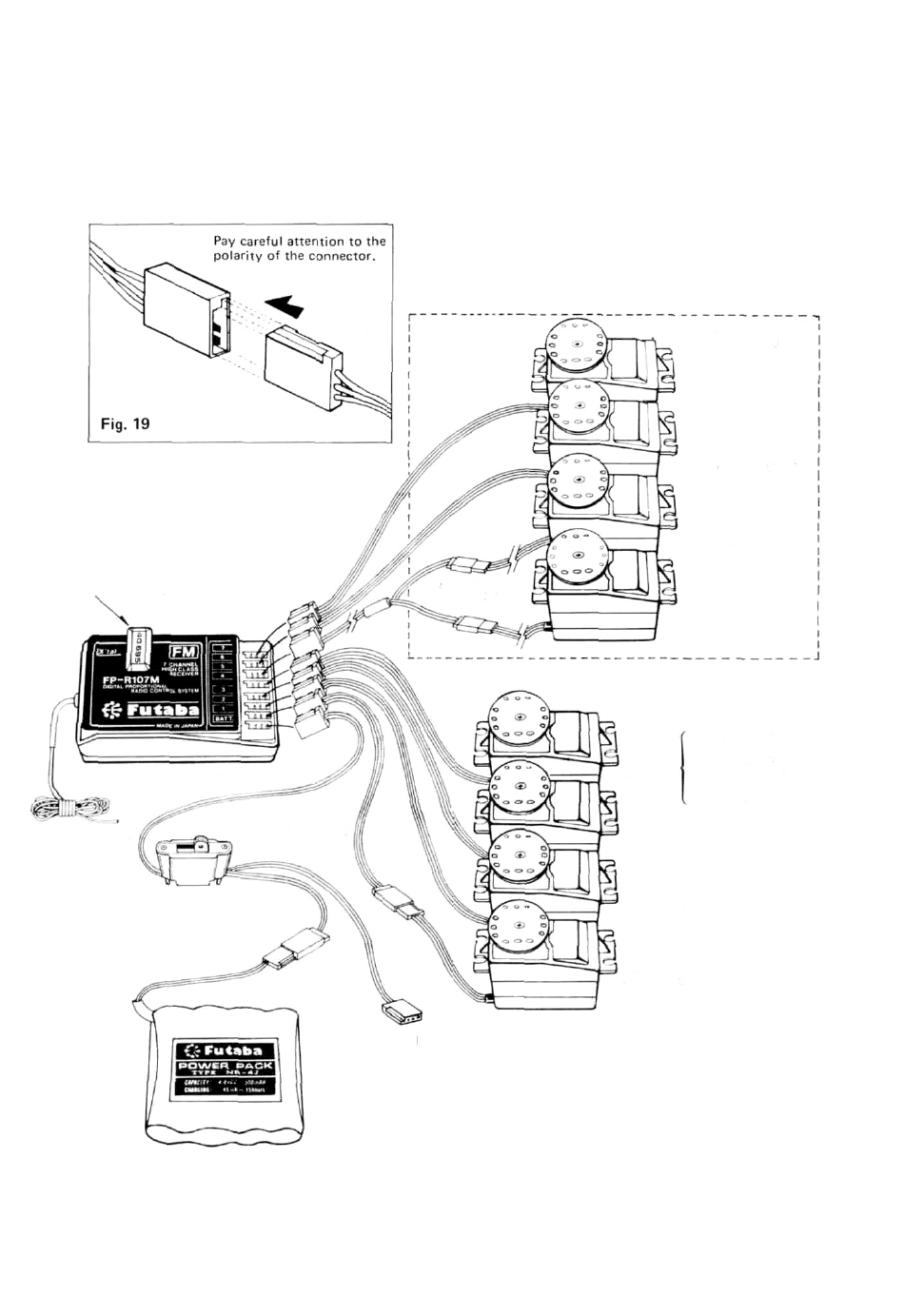

• RECEIVER, SERVO, SWITCHES, AND Ni-Cad BATTERY
CONNECTIONS AND USAGE PRECAUTIONS
10
Charging plug
Aileron servo
Elevator servo
Throttle servo
Extension
cord
R4-SWJ
Rudder
servo
When a rate gyro
is used, this servo
connects to the
receiver through
the rate gyro.
(Landing gear servo)
(Landing gear servo)
Pitch control servo
CH7 servo
The parts inside
the dotted
lines are sold
separately.
Landing gear
adapter
Received crystal
FP-R107M 7 channel FM receiver
Antenna
Fig. 20
