TRAINER

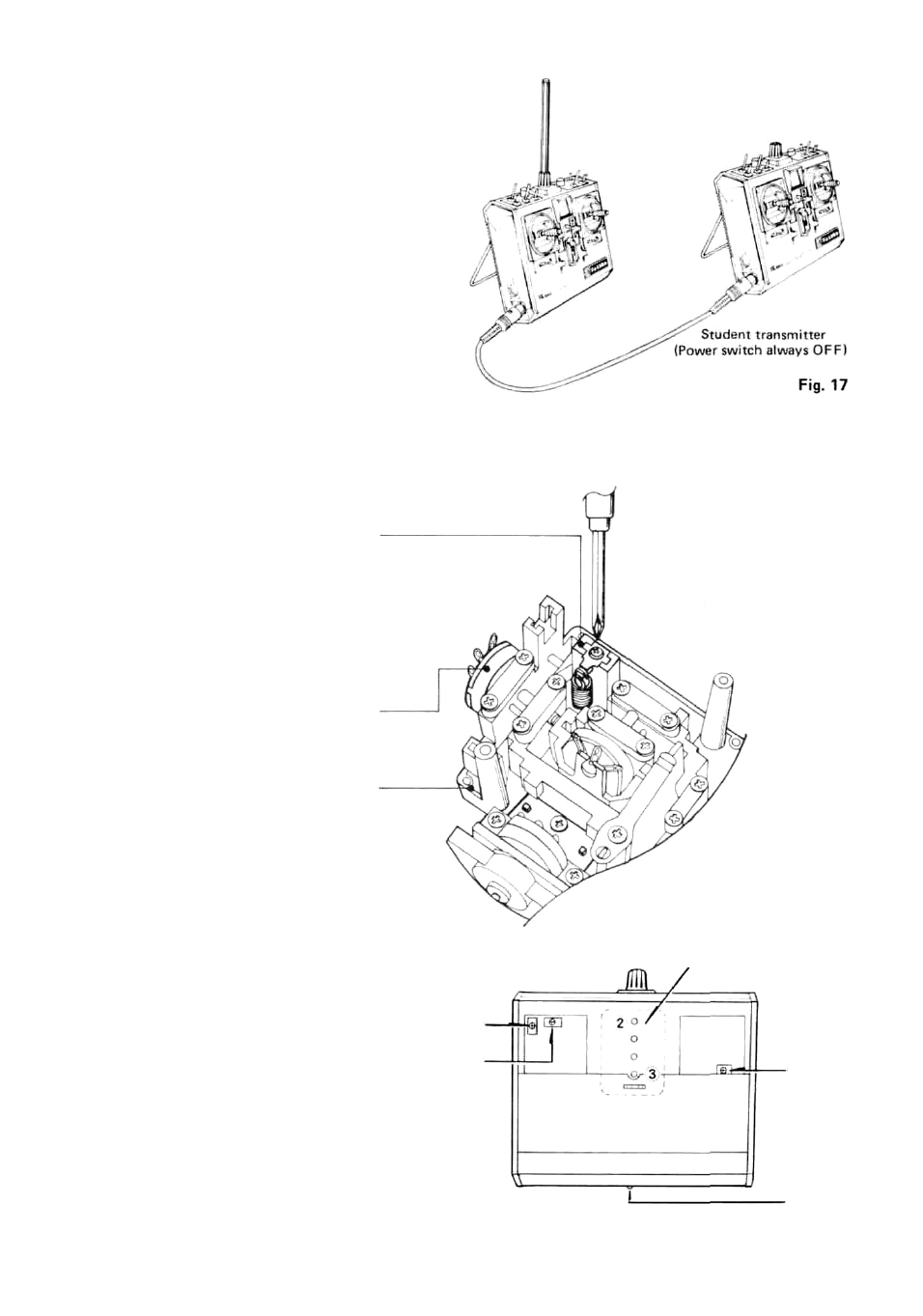

Connect the transmitters with the trainer cord
(M-TC, purchased separately) as shown in Fig.
When the switch is in the ON (pull) position,
the student's transmitter operates and when the
switch is in the OFF position, the instructor's
transmitter operates. The transmitter at which
the trainer switch is operated on-off becomes
the instructor's.
Instructor transmitter
(Power switch ON and transmitter operating)
STICK MECHANISM AND ITS ADJUSTMENT
•The new gimbal is open. This
one has been used only for the
most expensive radio controls. It
also has the built-in tension ad-
justment mechanism on open
gimbal for the first time. You can
adjust tension of spring for your
best stick feeling.
•CP variable resistor improved the
neutral characteristics and resolu-
tion tremendously.
•All molded parts made of high-
grade polycarbonate that virtually
eliminates the effects of tempera-
ture and humidity.
•Turn with a Phillips
screwdriver.
•When the core rises,
the spring tension
increases.
Fig. 18
9
Module OFF
1 To adjust spring tension, remove
case back. Loosen and remove
screw 1 & 2 . Lift off case back
from bottom side first.
2 Adjust spring tension with
Phillips screw driver at opening
A, B, C for MODE II transmitters.
AD
A
B
C
