Transmitter rf module – Futaba 7FGH User Manual
Page 10

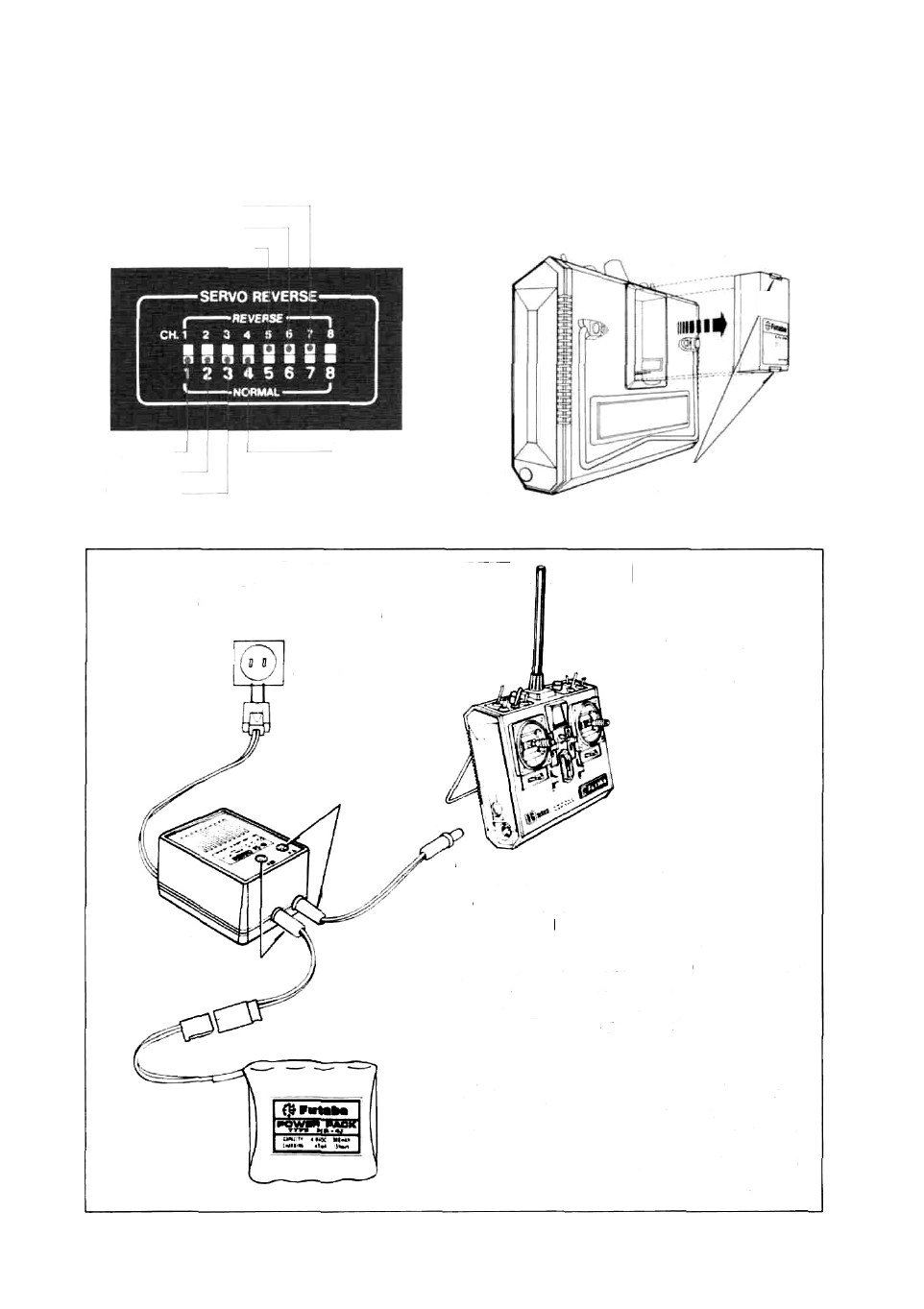

22 Servo reversing switches These switches
reverse the direction of the servos. It is very
convenient when connecting the linkage.
43 CH7 lever channel
42 CH6 pitch control
41CH5 switch channel
40 Rudder
37 A i l e r o n
38 Elevator
[39] Throttle
Transmitter RF module
Change this module to switch to any fre-
quency among 27, 29. 35, 40. 53 & 72
MHz bands.
Transmitter
I
6
Remove the module by
pulling it forward while
pressing this tab inward.
Fig. 15
NORM: Forward
REV: Reverse
Fig. 14
CHARGING OF TRANSMITTER AND RECEIVER
Ni-Cad BATTERIES:
Fig. 16
Recharge the receiver and
transmitter Ni-Cad
batteries as shown
in Fig. 16
Charger FBC
-2
•Connect the charging plug of the FBC-2 charg-
er to the transmitter charging jack, connect the
3P connector of the FBC-2 to the receiver Ni-
Cad battery NR-4J, and plug the FBC-2 to a
110VAC (220V,240V) outlet as shown in this
figure. The TX and RX charging LED light; in-
dicating that the batteries are being charged.
•The Receiver battery can be used about 10
times at 10 minutes per flight between recharg-
ings.
•Charge the batteries for about 15 hours. When
the set is not in use for some time, repeat dis-
charge and charge, two to three times before
use. (If the batteries are not used for a long
time, their capacity will go down).
•FBC-2 charges transmitter and receiver Ni-Cad
batteries independently or simultaneously.
AC-110V
(220V, 240V)
TX
Charging plug
RX
NR-4J
8
