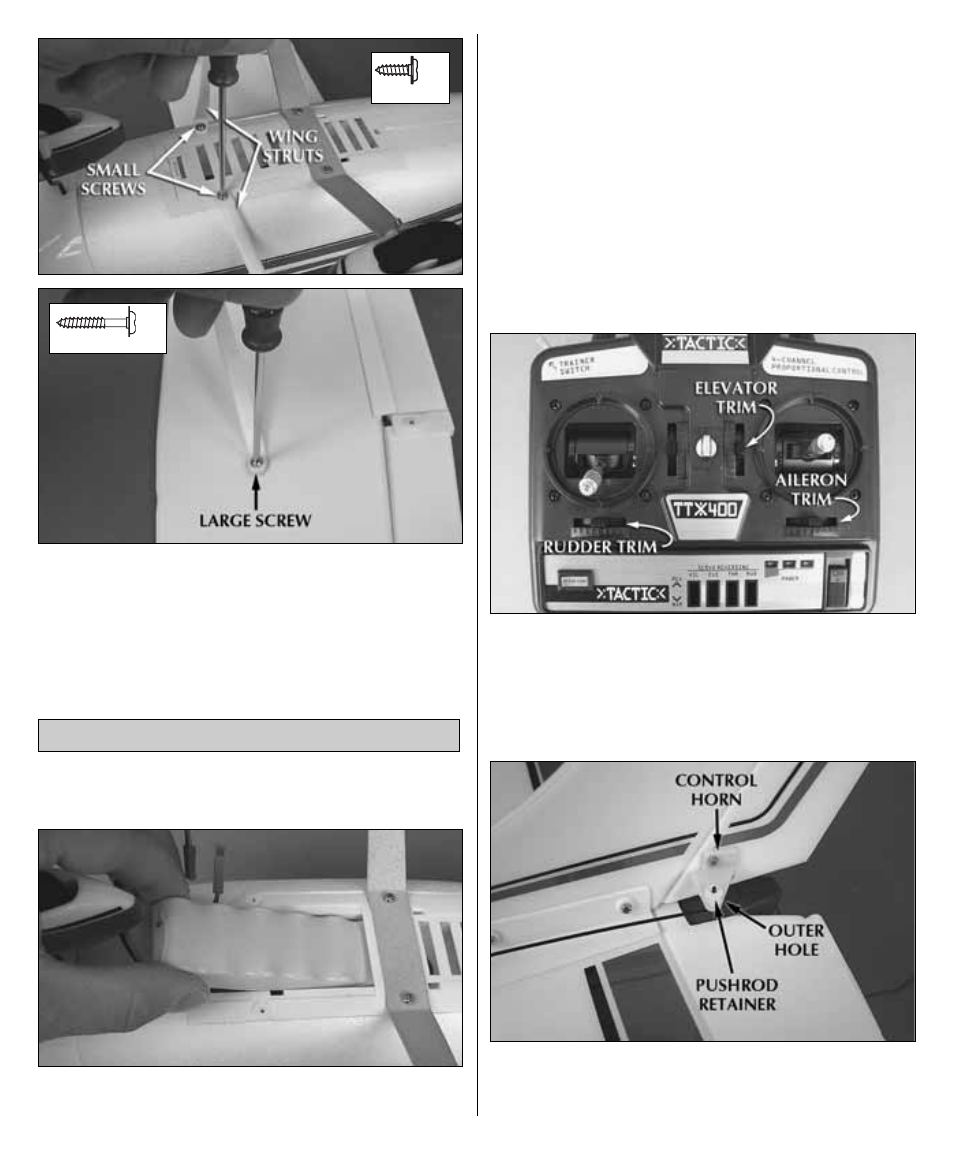

❏ 3. Turn the plane over and attach the wing struts to
the battery tray and the wing with two small screws
and two large screws (the wing struts are marked “L”
and “R”). Important: The Cessna 182 Skylane must
never be flown without the wing struts attached. The
wing struts help support the wing.
Check and tighten the screw in the prop adapter
before each flight.
❏ 1. Switch on the transmitter. Make sure all three
LEDs are on. Open the battery hatch cover on the
bottom of the plane and attach the battery to the
connector. Turn on the plane by moving the switch
on the left side of the fuselage.
CAUTION: Once the battery is connected to the ESC
and the plane is turned on, stay clear of the propeller.
❏ 2. Center the rudder, aileron, and elevator trim.
❏ 3. Install the rudder pushrod in the outer hole of
the control horn. Slide a pushrod retainer over the
pushrods to secure it.
RADIO ADJUSTMENT
7
x 2
ACTUAL SIZE
x 2
ACTUAL SIZE
