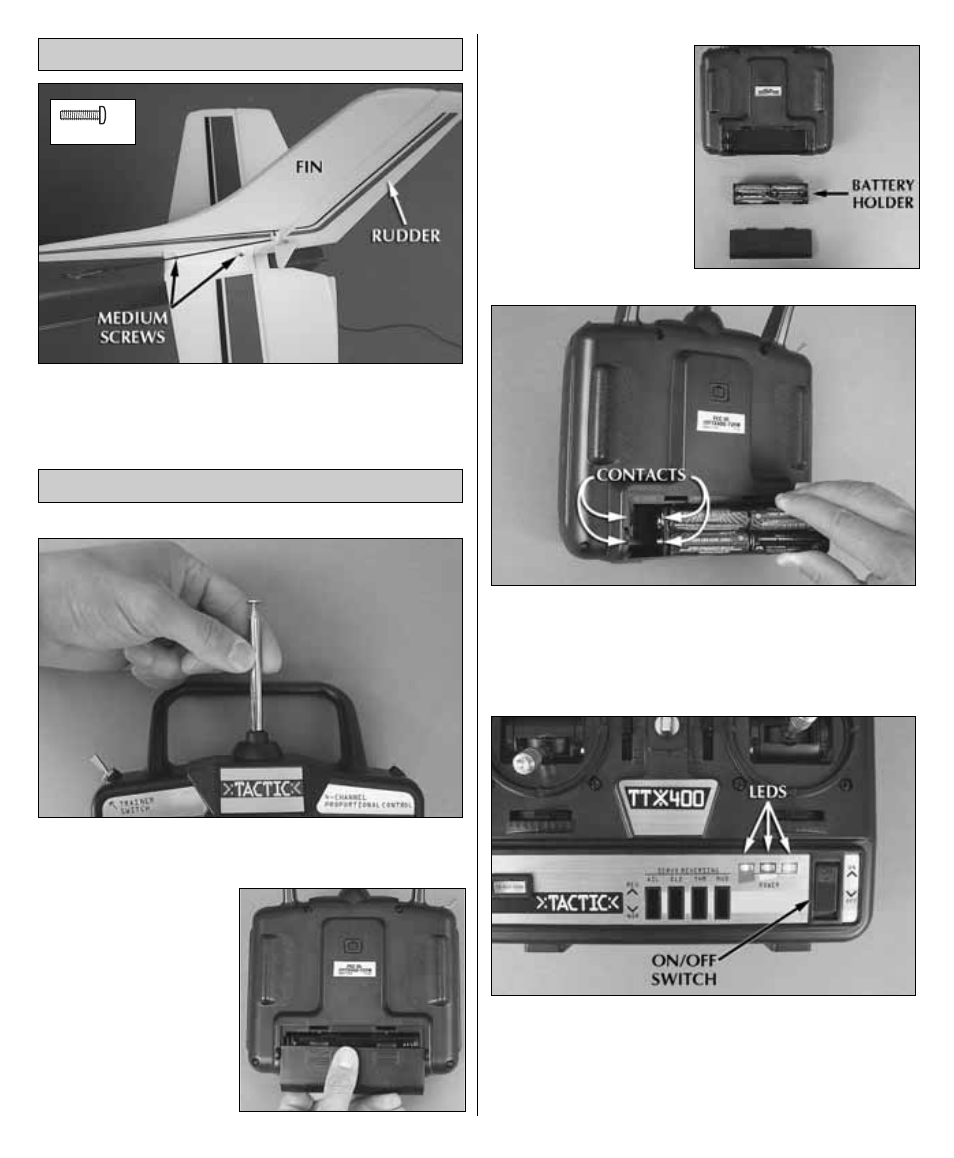

❏ Insert the fin into the fin holder. Use two medium
screws to attach the fin to the holder. Be careful to
not over tighten the screws.
❏ 1. Install the antenna into the transmitter by screwing
it on until tight.
❏ 2. The transmitter that
controls your airplane
requires power, in the
form of eight “AA”
batteries. To install the
batteries, remove the
battery hatch on the
back of the transmitter.
❏ 3. Pull the battery
holder out of the
transmitter case and
install eight new “AA”
batteries, following the
diagram on the holder.
❏ 4. Insert the battery holder in the transmitter case so
that the two contacts on the battery holder align with the
contacts in the transmitter case. Reinstall the battery door
on the transmitter case.
❏ 4. Switch on the transmitter and check the LED on the
front of the transmitter. The LEDs keep you informed of
the amount of battery power remaining during flying.
When all three LEDs are illuminated, it is safe to fly. As
battery power is depleted, the green and yellow LEDs
PREPARE THE TRANSMITTER
INSTALL THE FIN
4
x 2
ACTUAL SIZE
