EN 10
FZP 3714 B
Machine description and included contents

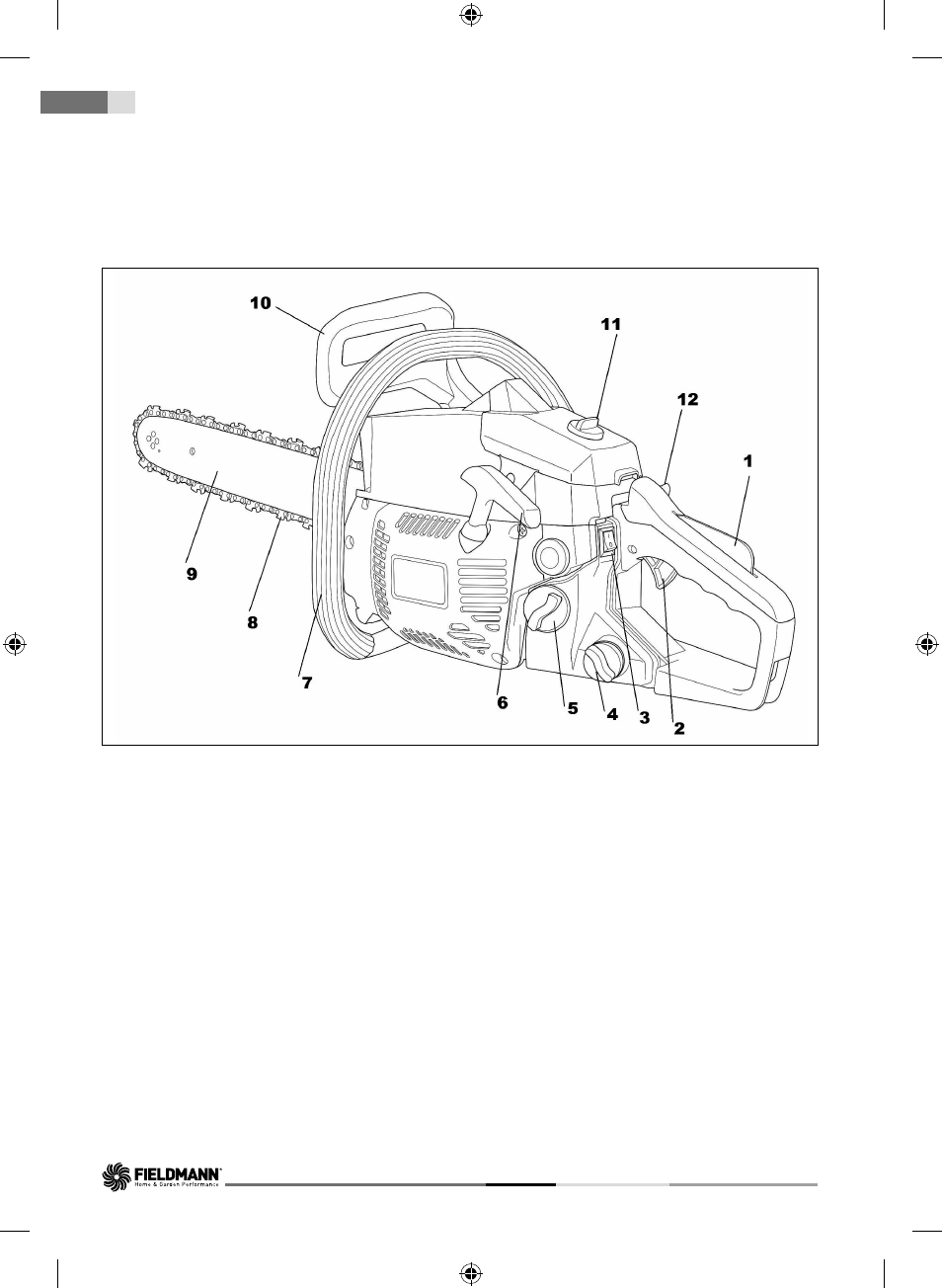

Description of the power tool (see Fig. 1)
1. Throttle safety switch
2. Throttle
trigger
3. Main power switch
4. Oil tank cap
5. Fuel tank cap
6. Starting cord handle
7. Front handle
8. Chain
9. Guide
bar
10. Safety brake
11. Air fi lter cover screw
12. Choke lever
4. MACHINE DESCRIPTION AND INCLUDED
CONTENTS
Fig. 1
Included contents: Petrol chain saw, 355 mm guide bar, chain, plastic guide bar cover, calibrated fuel mixing
container, spare spark plug, tool set with fi le.
