-5-
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton:
• 1x DVI-7520-TX or DVI-7525-TX HDMI HDBaseT Transmitter
• 1x DVI-7520-Rx or DVI-7525-RX HDMI HDBaseT Receiver
• 1x User Guide
• 1x External AC Power Adapter (+12 VDC)
• 1x IR Transmitter
• 1x IR Receiver
• 2x 3-pin RS-232 Phoenix Connectors
• 4x Mounting Brackets with Screws
• 2x HDMI Jack Screws
Note: Please retain the original packing material in case you need to return the unit. If you
find any items are missing, contact your reseller or DVIGear immediately. Please have the
Model Number, Serial Number, and Invoice Number available for reference when you call.
4.0 CONNECTING THE HARDWARE

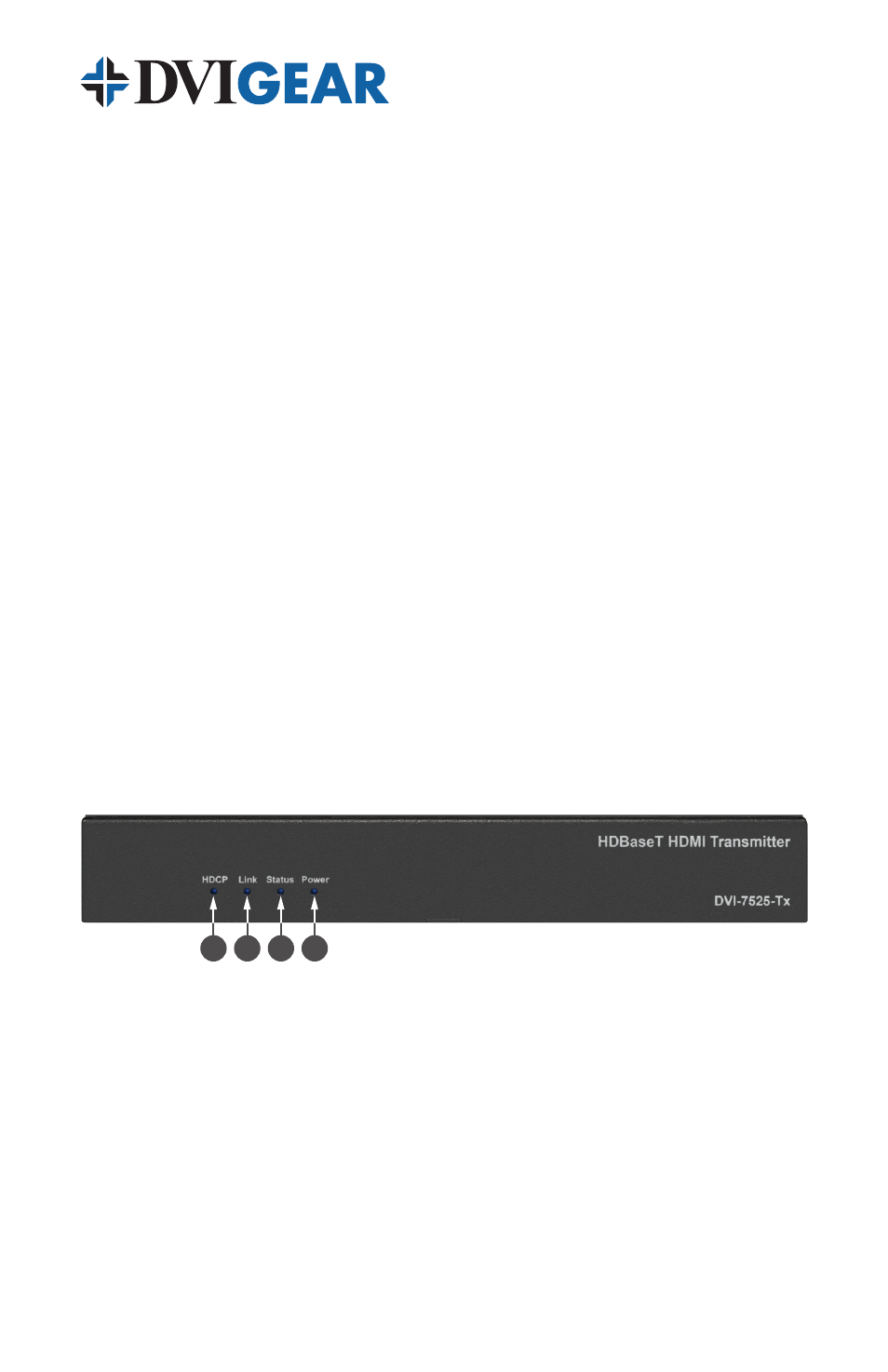

Please study the images below and become familiar with the signal inputs,
outputs, and the location of the power connector.
1 HDCP LED: ON indicates HDCP encrypted signal is present, blinking
indicates non-encrypted signal, OFF indicates no signal.
2 Link LED: monitors the link status between the HDBaseT transmitter and
receiver. When a proper connection is established, the LEDs on both Tx
and Rx are ON, otherwise both LEDs are OFF.
3 Status LED: monitors internal HDBaseT activity, blinking when normal.
4 Power LED: ON when an active power source is applied.
Note: The configuration of the front panel LEDs on the DVI-7520 and DVI-7525 are identical.
1 2 3 4
