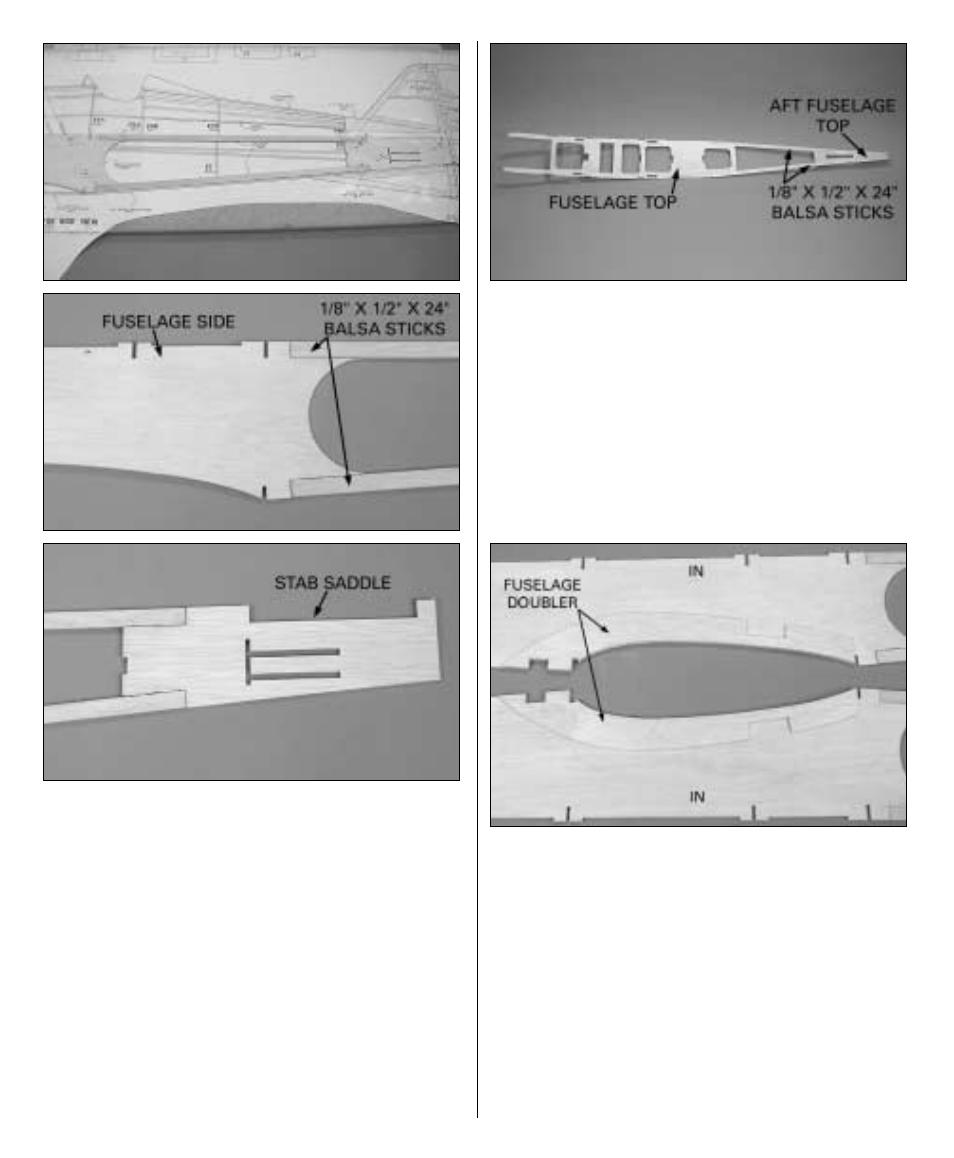

2. Make a fuselage side by gluing together a
die-cut 1/8" [3.2mm] plywood fuselage side
(FS), two 1/8" x 1/2" x 24" [3.2 x 12.7 x 610mm]
balsa sticks and the die-cut 1/8" [3.2mm]
plywood stab saddle (SS). Use T-pins to hold
the parts over their location on the plan as you
proceed.
❏
3. After the glue from the previous step has
hardened, remove the fuselage side from the
plan. Make another fuselage side the same way.
After the glue dries, sand both assemblies flat
and even.
❏
4. Switching to the fuselage bottom view,
build the fuselage top over the plan from the
die-cut 1/8" [3.2mm] plywood forward and aft
fuselage tops (FFT, AFT) and two 1/8" x 1/2" x
24" [3.2 x 12.7 x 610mm] balsa sticks. Remove
the fuselage top from the plan, then sand flat
and even.
❏
5. Arrange both fuselage sides as shown in
the photo. Use a ballpoint pen to write “IN” on
the outward facing sides. Glue a die-cut 1/8"
[3.2mm] plywood fuselage side doubler
(FSD) to the inside of each fuse side.
❏
6. Glue the die-cut 1/8" [3.2mm] plywood
former F3D to the front of die-cut 1/8" [3.2mm]
plywood former F3.
