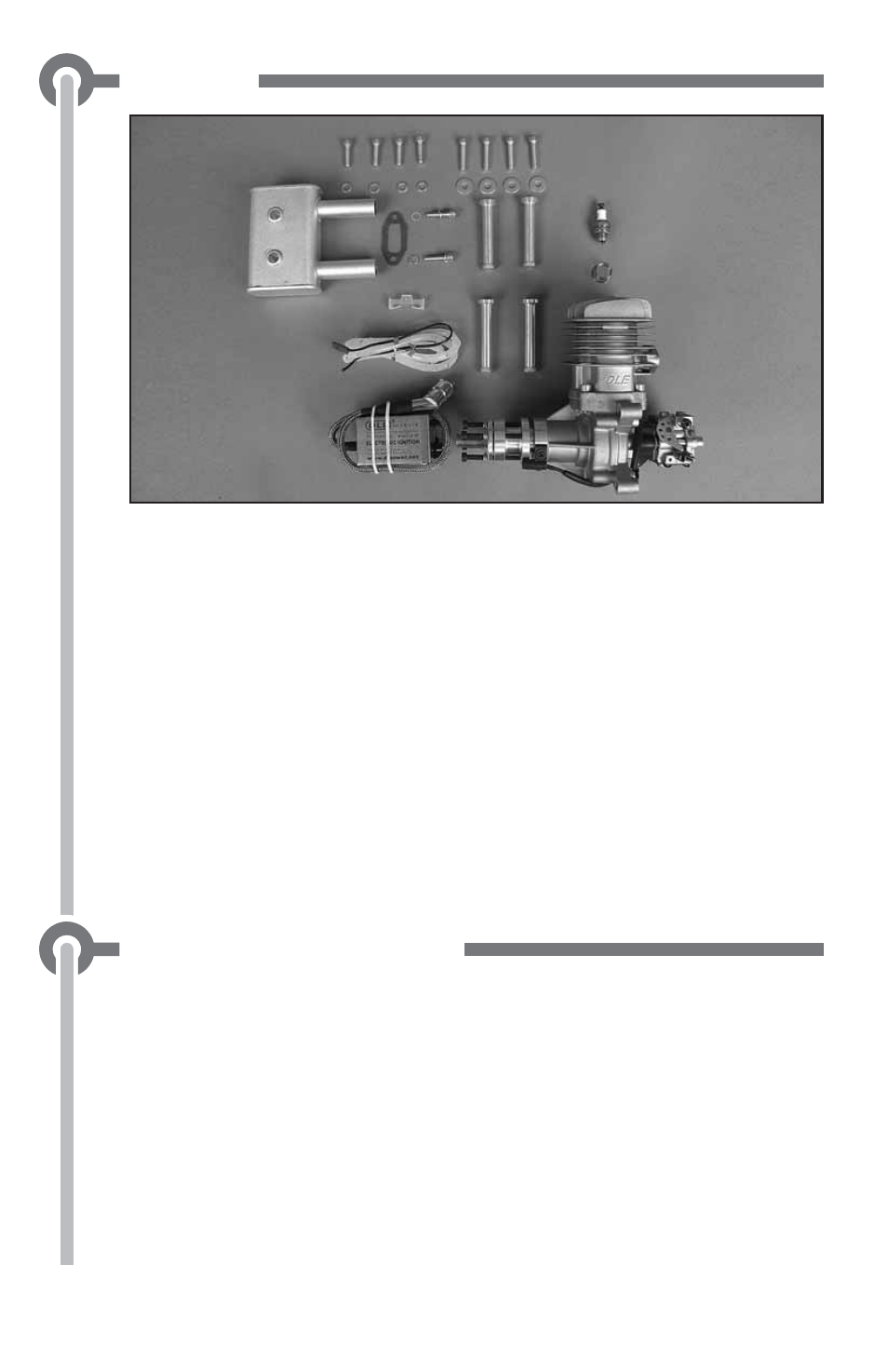

Parts List
(1) DLE-35RA Gas Engine with DLE Carburetor
(1) CM6 Spark Plug with Spare Ignition Wire Spring
(1) Muffl er w/Gasket
(2) 5 x15mm SHCS with 5mm Lock Washers (muffl er mounting)
(1) Electronic Ignition Module w/ Additional Tachometer Lead
(4) 60mm Engine Mounting Standoffs
(4) 4x40 mm SHCS with 4mm Lock Washers & Flat Washers (propeller mounting)
(4) 5 x20 mm SHCS with 5 mm Flat Washers (mounting engine to standoffs)
(1) Silicone Pick-up Wire Cover / Ignition Wire Cover
(1) Red Three Pin Connector Lead w/ Pig Tail (for ignition switch)
(2) Three Pin Connector Securing Clips
(1) DLE Decal
(4) 5 x25 mm SHCS with 5 mm Washers
(2) 20 x 60mm White Exhaust Tubes with Clamps (not pictured)
Safety Tips and Warnings
● This engine is not a toy. Please place your safety and the safety of
others paramount while operating. DLE will not be held responsible
for any safety issues or accidents involving this engine.
● Operate the engine in a properly ventilated area.
● Before starting the engine, please make sure all components
including the propeller and the engine mount are secure and tight.
It is strongly recommended that a screw sealant is used (Great
Planes Threadlocker GPMR6060) during engine installation.
● During the break-in period, it is recommended that the engine be
installed on the aircraft or a test stand with an appropriate shock
absorber. Otherwise it is probable that vibration could rebound
