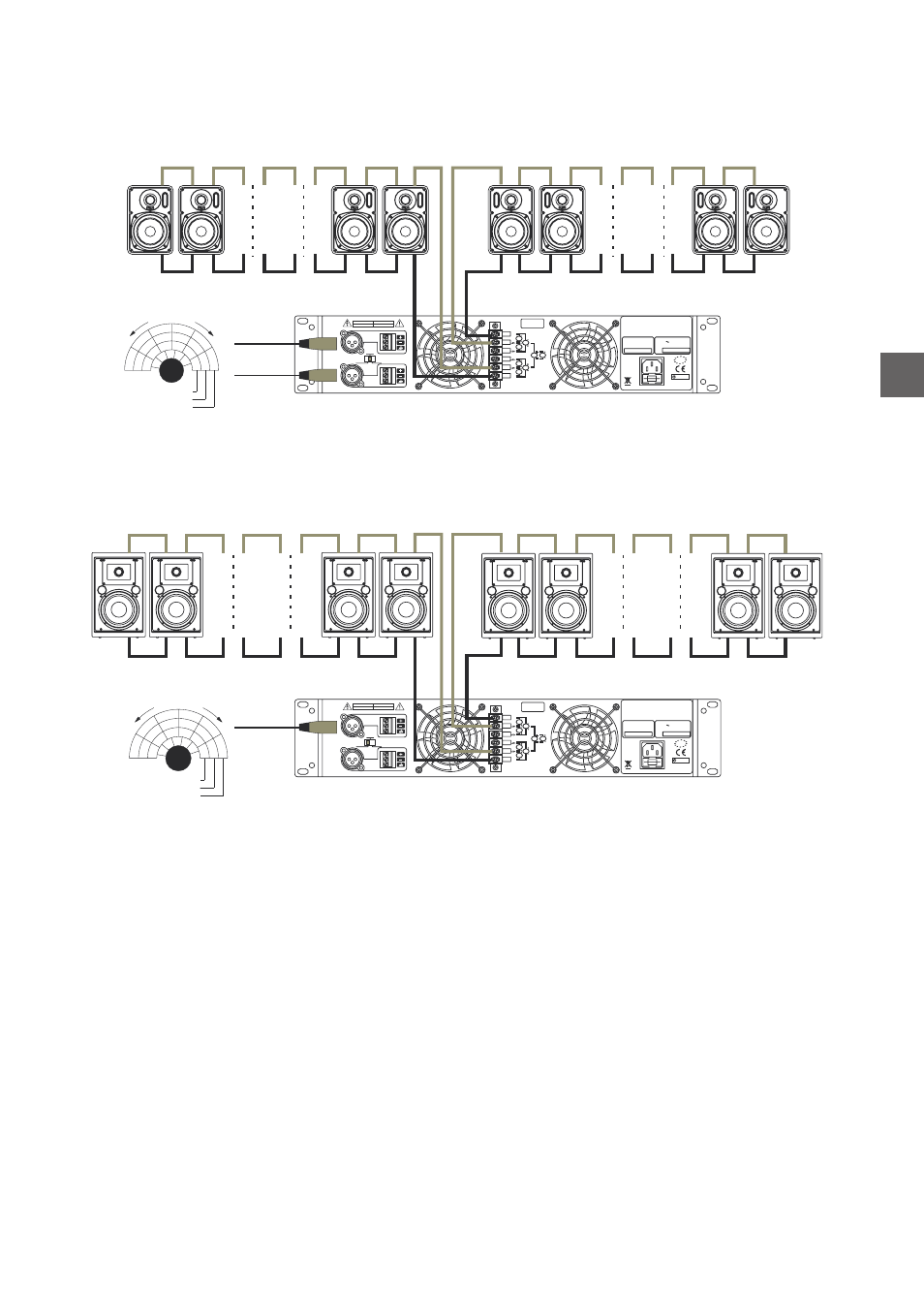

Ejemplo 3: , salida de 70 V, modo stereo. Carga 20 por canal (cada una de ellas
en posición de 15 W).
CSA-600T factor 5T
Ejemplo 4: , salida de 70 V, modo paralelo. Carga 10 por canal (cada una de ellas
en posición de 30 W).
CSA-600T factor 8T
