Crosman PG521 - Manual

to change the spin on the BB as it leaves the muzzle, allowing you to adapt your shot for different
distances.
Locate the hop-up adjustment lever on the left side of the gun above the forearm. •
Move the lever back for more spin. •
Move the lever forward for less spin. •
7. Aiming And Firing SAFely
A. Firing SAFely
You and others with you should always wear eye protection designed for airsoft to protect your •
eyes.
Always point your airsoft gun in a SAFE DIRECTION. •
Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or •
ricochet and hit someone or something you had not intended to hit.
DO NOT re-use plastic BBs because they could possibly cause damage to your airsoft gun. •
Your airsoft gun is designed for target shooting and is suited for both indoor and outdoor use. Al- •
ways remember to place your target carefully. THINK about what you will hit if you miss the target.
When you are sure of your target and backstop, and the area around the target is clear, load and •
charge the airsoft gun following sections 3 and 4. Take the airsoft gun “OFF SAFE”(section 2A)
aim and pull the trigger to fire.
B. AdjuSting the SightS
reAr Sight
Your rear sight has four peep sight settings. •
To select your preference, simply turn the
rear sight left or right until it clicks into the
desired position.
The airoft gun is correctly aimed when the •
front sight blade is positioned exactly in the
center of the notch or peep of the rear sight. The top of the front
sight blade should be even with the top of the notch or peep in
the rear sight. The bulls-eye should appear to rest on the top of
the front sight .
To adjust for windage (left or right) loosen the sight screw on
the back of the rear sight. Do not remove the screw, loosen just
enough for the sight to have a little play in it.
Turn the windage screw on the right side of the sight counter- •
clockwise to move the point of impact to the left. Turn the
windage screw clockwise to move the point of impact to the right.
When the windage adjustment is complete tighten the rear sight screw. •
8. mAintAining your AirSoFt gun
DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Tampering with the airsoft gun or attempts to •
change the airsoft gun in any way may make it unsafe to use, may cause serious injury or death
and will void the warranty.
If you drop your airsoft gun, visually check to see that it works properly before you use it again. If •
anything seems changed, like a shorter or weaker trigger pull, this may mean parts are worn out
or broken. Call Customer Service at Crosman for assistance before using your airsoft gun again.
9. replAcing the FuSe
Make sure the airsoft gun is “ON SAFE” (section •
2A) and is UNLOADED.
Point the airsoft gun in a SAFE DIRECTION. •
Remove the butt plate by pushing it downward. •
Pull out the connector wires. •
Open the fuse box and remove the fuse. •
Replace the fuse with a new 20A Glass Tube Fuse •
(not included).
Close the fuse box. •
10. trouBle Shooting/increASing your Shooting enjoyment
Occasionally shake the gun to ensure smooth BB feeding. •
This is a high precision airsoft rifle. Prevent dust and dirt from getting into the magazine to help •
maintain the performance of your airsoft rifle.
If the efficiency of BB feeding seems to decrease, remove all the BBs from the magazine and •
spray silicone oil for 1 to 2 seconds. (Note that the hop-up operation may become unstable for a
while after using silicone oil).
An odor may be generated from the motor initially from a new airsoft gun, this is normal. •
If the airsoft gun does not fire in semi-auto mode, follow safe shooting rules and turn the gun to •
full auto mode for 5 to 10 shots before returning to semi-auto mode.
Change the battery if firing cycle becomes slow. •
Give the airsoft gun a rest for 5 to 10 minutes after about 500 BBs have been fired. •
cleAring A jAm
never look down the end of barrel to see if a jam has been cleared.
Make sure the airsoft gun is “ON SAFE” and pointed in a SAFE DIRECTION. 15.
Remove magazine. 16.
Insert the tapered end of the cleaning rod into the barrel, with the angle toward the breech 17.
(where the magazine connects).
CAREFULLY and slowly apply more pressure until you push the BB out of the breech. 18.
Reinstall the magazine and test gun. 19.
11. reviewing SAFety
Do not ever point the airsoft gun at any person. Do not ever point the airsoft gun at anything you •
do not intend to shoot.
Always treat the airsoft gun as though it is loaded and with the same respect you would a firearm. •
Always aim in a SAFE DIRECTION. Always keep the muzzle of the airsoft gun pointed in a SAFE •
DIRECTION.
Always keep the airsoft gun “ON SAFE” until you are ready to shoot in a SAFE DIRECTION. •
Always check to see if the airsoft gun is “ON SAFE” and unloaded when getting it from another •
person or from storage.
Always keep your finger off the trigger and out of the trigger guard until ready to shoot. •
You and others with you should always wear eye protection to protect your eyes. •
Always wear eye protection designed for airsoft over your regular glasses. •
Use 6 mm plastic BBs only. •
Do not reuse plastic BBs because they could cause possible damage to your airsoft gun. •
Do not shoot at hard surfaces or at the surface of water. The plastic BBs may bounce off or •
ricochet and hit someone or something you had not intended to hit.
Replace the backstop if it becomes worn. Place the backstop in a location that will be safe should •
the backstop fail.
Your backstop should be checked for wear before and after each use. All backstops are subject •
to wear and will eventually fail. Replace your backstop if the surface is worn or damaged or if a
ricochet occurs.
Do not attempt to disassemble or tamper with your airsoft gun. •
DO NOT MODIFY OR ALTER YOUR AIRSOFT GUN. Attempts to modify the airsoft gun in any way •
may make your airsoft gun unsafe to use, cause serious injury or death and will void the warranty.
Using unauthorized repair centers or modifying the function of your airsoft gun in any way may be •
unsafe and will void your warranty.
Do not put the airsoft gun away loaded. Make sure ALL of the plastic BBs are unloaded from the •
airsoft gun.
Always store this airsoft gun in a secure location. •
SpeciFicAtionS
Mechanism/Action Electronic
Caliber/Ammunition 6mm Plastic BBs
Magazine Up to 200 6 mm BBs
Safety Lever
Velocity Up to 400 fps
Battery 8.4V battery / 1500 MAH
Fuse 20A Glass Tube Fuse
perFormAnce: Many factors can affect velocity, including brand of projectile, type of projectile
and barrel condition. We recommend using only Crosman brand airsoft BBs. Use of other than
Crosman brand can damage your airsoft gun.
do not return thiS product to the Store.
Our friendly customer service representatives will be glad to help. You can get answers to frequently
asked questions at www.crosman.com or you can contact us directly at 1-800-7AIRGUN (1-800-724-7486)
cuStomer Service
If your airsoft gun is not functioning, we recommend that you call Crosman Corporation Customer
Service at 1-800-724-7486 or 585-657-6161. (International customers should contact their dis-
tributor.) DO NOT ATTEMPT TO DISASSEMBLE IT! If you take it apart you probably will not be able to
reassemble it correctly. Crosman assumes no warranty responsibility under such circumstances.
limited 90 dAy wArrAnty
This product is warranted to the retail consumer for 90 days from date of retail purchase against
defects in material and workmanship and is transferable.
whAt iS covered
Replacement parts and labor. Transportation charges to consumer for repaired product.
whAt iS not covered
Transportation charges to Crosman for product. Damages caused by abuse, modification or failure
to perform normal maintenance. Any other expense. CONSEQUENTIAL DAMAGES, INCIDENTAL
DAMAGES, OR INCIDENTAL EXPENSES, INCLUDING DAMAGE TO PROPERTY. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
wArrAnty clAimS
USA Customers: Attach your name, address, description of problem, phone number and copy of
sales receipt to product. Package and return to Crosman Corporation, Routes 5 & 20, East Bloom-
field, NY 14443.
International Customers: Please return product to your nearest distributor. If you do not know your
distributor, please call 585-657-6161 and ask for our International Department for assistance.
implied wArrAntieS
ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 30 DAYS FROM DATE OF
RETAIL PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
To the extent any provision of this warranty is prohibited by federal, state, or municipal law which
cannot be preempted, it shall not be applicable. This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.
CROSMAN is a registered trademark of Crosman Corporation in the United States.
model pg521
AirSoFt gun
6mm plAStic BB
owner’S mAnuAl
Distributed by
Crosman Corporation
7629 Routes 5 & 20
East Bloomfield, NY 14443
www.crosman.com
1-800-724-7486
Made in Hong Kong PG521A515
This is not a toy. Adult supervision is required.
Misuse may cause serious injury, especially to the eye. Eye protection
designed for airsoft guns must be worn by the user and any person in
range. May be dangerous up to 100 yds. Read the owner’s manual
before using.
WARNING:
Do not brandish or display this airsoft gun in
public – it may confuse people and may be a crime. Police and others
may think it is a firearm. Do not change the coloration and markings to
make it look more like a firearm. That is dangerous and may
be a crime.
WARNING:
note: Charge the battery 9-10 hours prior to initial use. This airsoft gun will not operate properly
without a fully charged battery. DO NOT OVERCHARGE THE BATTERY. UNPLUG THE BATTERY
CHARGER WHEN NOT IN USE.
READ ALL INSTRUCTIONS AND WARNINGS IN THIS MANUAL BEFORE USING THIS AIRSOFT GUN.
BUYER AND USER HAVE THE DUTY TO OBEY ALL LAWS ABOUT THE USE AND OWNERSHIP OF THIS
AIRSOFT GUN.
Recommend 18 years or older to purchase. Intended for use by those 16 or older.
Please read this owner’s manual completely. Remember to treat this airsoft gun with the same
respect you would a firearm. Always carefully follow the safety instructions found in this owner’s
manual and keep this manual in a safe place for future use.
If you have any questions regarding your new airsoft gun, please contact Crosman Customer
Service at: 1-800-724-7486, 585-657-6161 or www.crosman.com.

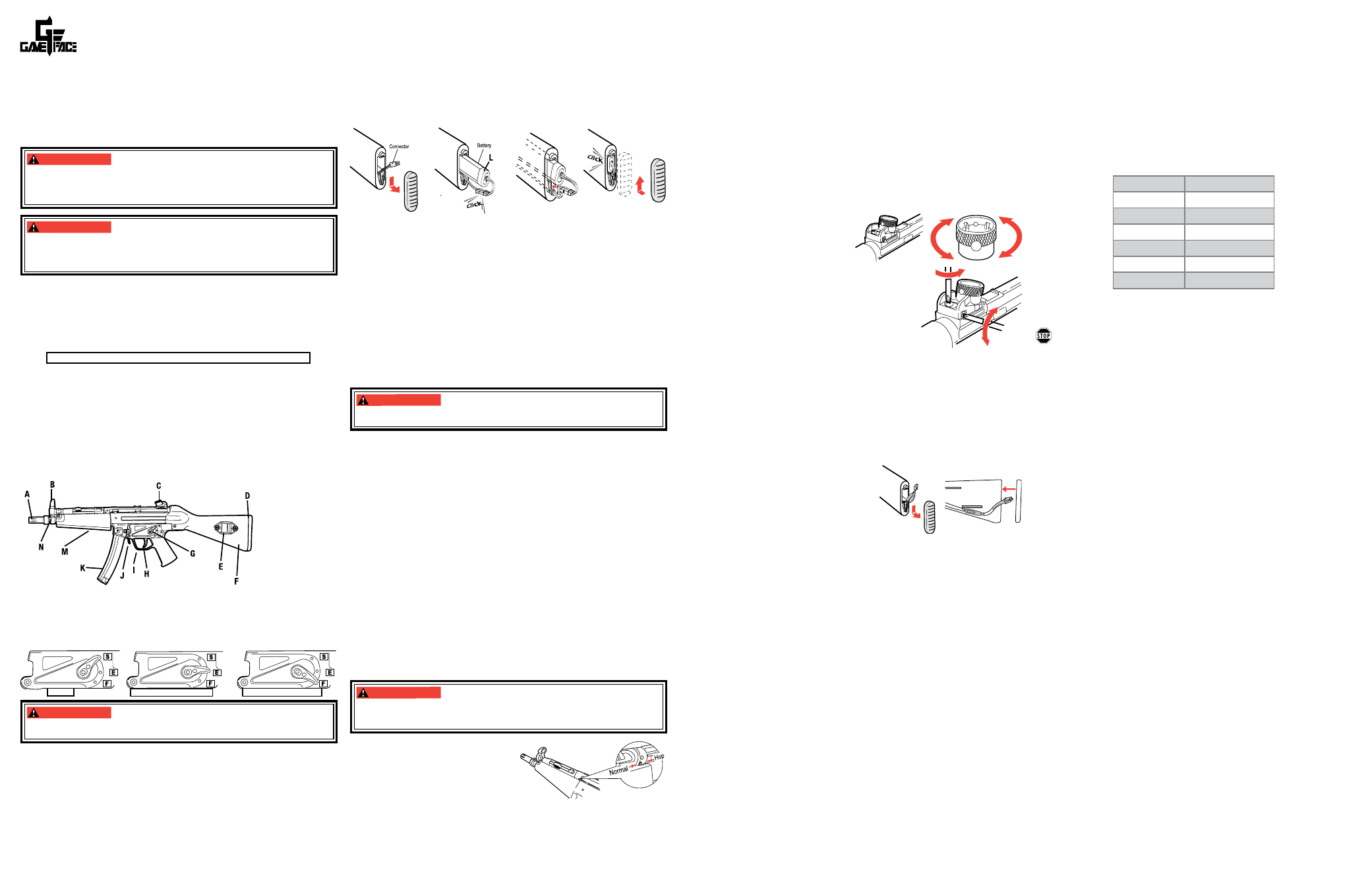

1. leArning the pArtS oF your new AirSoFt gun
Learning the names of the parts of your new airsoft gun will help you to understand your owner’s
manual. Use this manual to increase your enjoyment of this airsoft gun.
Muzzle A.
Front sight B.
Rear Sight c.
Butt Plate d.
Rear Swivel e.
Stock F.
SAFETY/ Firing g.
Mode Selection
Lever
Trigger h.
Trigger Guard i.
Magazine release j.
Magazine K.
Battery l.
Forearm/Handguard m.
Front Sling hook n.
2. operAting the SAFety
A. to put the AirSoFt gun “on SAFe”
Locate the safety on the left side of the airsoft gun. •
Turn the safety lever to “S” for “ON SAFE.” (Fig 2A). The safety is not “ON SAFE” unless it is •
pointing to “S”.
ON SAFE OFF SAFE- Semi-auto mode OFF SAFE- Full-auto mode
Keep the airsoft gun in the “ON SAFE” position
until you are actually ready to shoot. Then turn the safety to the “SEMI”
or “AUTO” position.
WARNING:
Like all mechanical devices, an airsoft gun safety can fail. Even when the safety is “ON SAFE”, you
should continue to handle the airsoft gun safely. NEVER point the airsoft gun at any person. NEVER
point the airsoft gun at anything you do not intend to shoot.
B. to tAKe the AirSoFt gun “oFF SAFe”
NOTE: This airsoft gun fires in semi or full auto-mode. Full auto means it will continue to fire plastic
BBs as long as you hold the trigger. Semi- auto means you will have to pull the trigger each time
you want to fire a shot.
Locate the safety on the left side of the receiver. (Fig. 2a) •
Turn the lever to “E” for semi-auto mode. •
Turn the lever to “F” for full auto mode. •
The airsoft gun is “OFF SAFE” and ready to fire when pointing to either “E” or “F”. •
3. chArging, loAding And removing the BAttery
A. chArging the BAttery
Use only the battery and charger provided with your product. •
Plug the white connector on the battery into the connector on the battery charger. •
Plug the charger in to a standard 110 v outlet. •
note: The battery charging time 9-10 hours prior to initial use. To prolong battery life and main-
tain the best shooting performance rest the gun for 5-10 minutes after firing about 500 rounds. For
optimum performance completely use up the battery before recharging. DO NOT OVERCHARGE
THE BATTERY. UNPLUG THE BATTERY CHARGER WHEN NOT IN USE.
B. loAding the BAttery
Make sure the airsoft gun is “ON SAFE” (section 2A) and is UNLOADED. •
Point the airsoft gun in a SAFE DIRECTION. •
Remove the butt plate by pushing it downward. •
Pull out the connector. •
Insert the battery into the stock with the connector facing out. •
Plug the battery into the connector. •
Slide the battery and connectors into the stock and fold the wire in an “S” shape. •
Replace the butt by lining it up on the stock and pushing up into the locked position. •
c. removing the BAttery
Make sure the airsoft gun is “ON SAFE” (section 2A) and is UNLOADED. •
Point the airsoft gun in a SAFE DIRECTION. •
Remove the butt plate by pushing it downward with both thumbs. •
Pull out the battery and connector. •
Unplug the battery from the connector. •
Replace the butt by lining it up on the stock and pushing up into the locked position. •
4. loAding And unloAding plAStic BBS
A. loAding
Use 6 mm plastic BBs only in this airsoft gun.
Use of any other ammunition can cause injury to you or damage to the
airsoft gun. We recommend using Crosman .20g or .25 Heavy BBs.
WARNING:
Make sure the airsoft gun is “ON SAFE” (section 2A). •
Point the airsoft gun in a SAFE DIRECTION. •
While supporting the BB magazine, push the magazine release lever forward and •
Remove the magazine. •
Flip open magazine cap. •
Insert 6 mm plastic BBs. •
Close the magazine cap. •
Insert the loaded magazine back into the airsoft gun. •
Rotate the wind up wheel to draw plastic BBs up into the ready tube. Wind the wheel up to 75 •
turns for optimum performance.
note: IT IS IMPORTANT TO PUT THE MAGAZINE IN THE GUN PRIOR TO WINDING TO HELP AVOID
JAMS.
Winding before putting into the gun can cause a jam.
B. unloAding plAStic BBS
Make sure the airsoft gun is “ON SAFE” (section 2A). •
Point the airsoft gun in a SAFE DIRECTION. •
While supporting the BB magazine, push the magazine release lever forward and remove the •
magazine.
Slide the magazine cap open. •
Flip open the loading door behind the ready tube •
Pour out BBs. •
To release the BBs in the ready tube, point the clip down in a safe direction and push back and •
hold the BB retainer button.
note: BBs will release rapidly.
Rotate the wind up wheel to draw BBs into the ready tube. •
Repeat the above steps until all the BBs are out of the magazine. •
Close the magazine cap. •
Never assume that because the airsoft gun no lon-
ger fires a BB and/or the loading chamber is removed, that a BB is not
lodged in the barrel. Always treat the airsoft gun as though it is loaded
and with the same respect you would a firearm.
WARNING:
5. Selecting the Firing mode
note: This airsoft gun fires in semi-auto or full auto
mode. Full-auto means it will continue to fire plastic
BBs as long as you hold the trigger. Semi-auto
means that you will have to pull the trigger each
time you want to fire a shot.
Make sure the airsoft gun is “ON SAFE” (section •
2A) and pointed in a SAFE DIRECTION.
Locate the firing selection lever on the left side of the gun. •
Turn the lever to “E” for “Semi-auto.” •
Turn the lever to “F” for “Full-auto.” •
6. uSing the hop-up mode
Your airsoft gun is manufactured with an adjustable hop-up system. The purpose of this system is
