Product List and Pictures
Product List and
Pictures This Hardware Installation document discusses the following serial controllers.
Locating Drivers
and Software
Documentation You can download the latest drivers and software installation documents from the
web site at
http://support.comtrol.com/Download.asp .
Type Ports Interface Type
RJ45 4
This model has four female RJ45 jacks on the mounting
bracket for RS-232 serial port connections. Cables are not
included.
DB9/DB25
Quadcable
4
Includes a fanout cable with four standard DB25 or DB9
connectors for RS-232 serial port connections. Quadcables
have the capability to be 8-port cards with an 8-port interface
cable. Some drivers view the 4-port as an 8-port card.
8 8 Requires one 8-port interface module.
RJ11 8
This model has eight female RJ11 jacks on the mounting
bracket for RS-232 serial port connections. The RJ11 does not
support NT RAS (Remote Access Server), as it lacks the full
set of modem control lines. Cables are not included.
DB9/DB25/
RJ45
Octacable
8
Includes a fanout cable with eight standard DB25, DB9, or
RJ45 connectors for RS-232 serial port connections.
DB25/
RM16-RJ45
16
Requires one 16-port DB25 connector interface module, or
one RM16-RJ45 Rack Mount interface module for RS-232
serial port connections.
DB25/
RM16-
RJ45/
RM32-RJ45
32
Requires two 16-port DB25 interface modules, or two 16-port
RM16-RJ45 Rack Mount interface modules, or one RM32-
RJ45 Rack Mount interface module for RS-232 serial port
connections.
Note: The cables and interface modules shipped with this product are described
and illustrated in RocketPort Interfaces on Page 6.

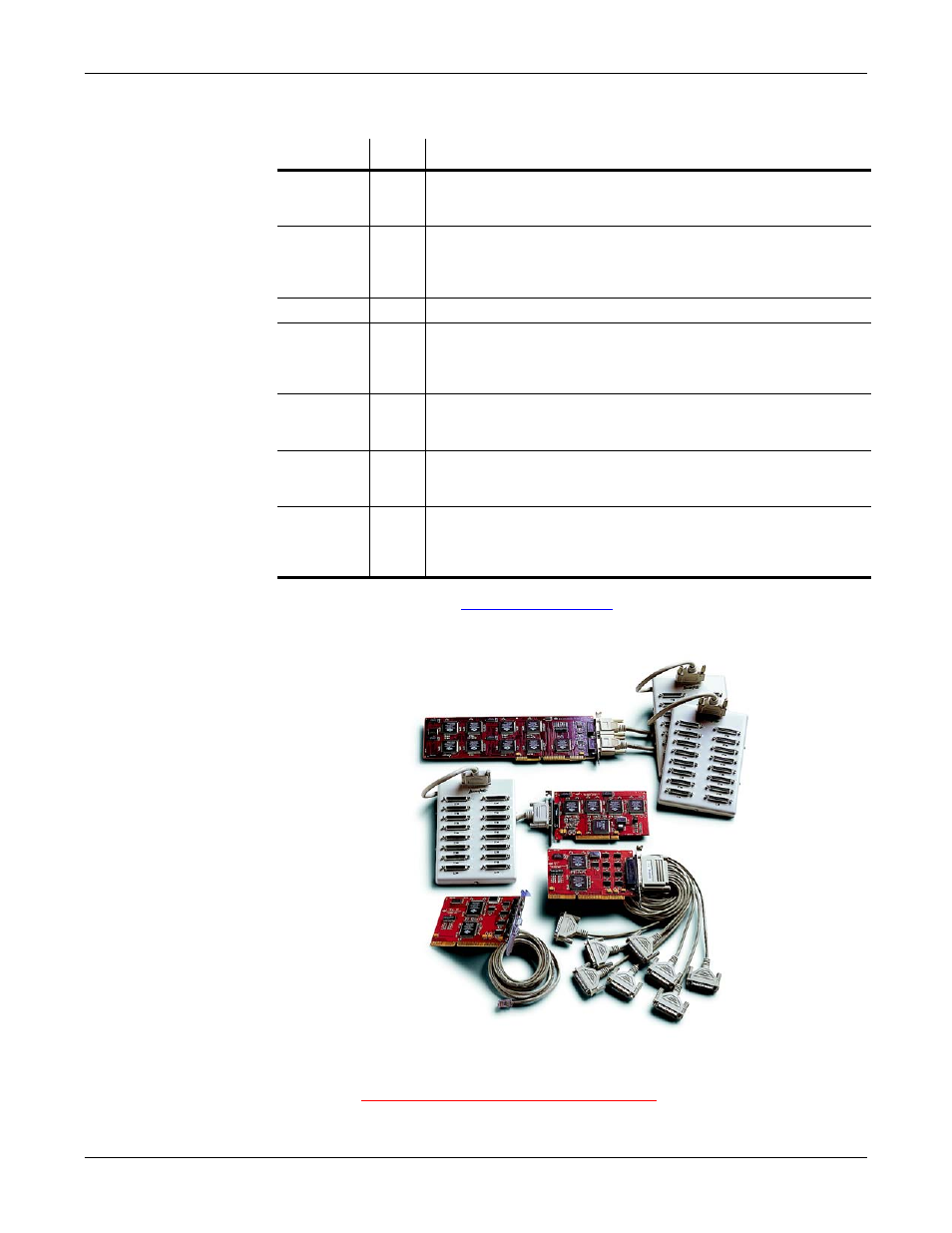

16 Port DB25
Connector Interface
Box
32 Port DB25
Connector
Interface Module
Octacable DB25
Interface Cables
RocketPort PCI 4 RJ45 ports
(Cables not included)
