Caution – COMP Cams 5760 Chrysler Hemi Phaser Lock Kit User Manual
Page 4
COMP Cams®
3406 Democrat Rd.
Memphis, TN 38118
Phone: 901.795.2400
Part #COMP4-156
Revised 1/4/12
Toll Free: 1.800.999.0853
www.compcams.com

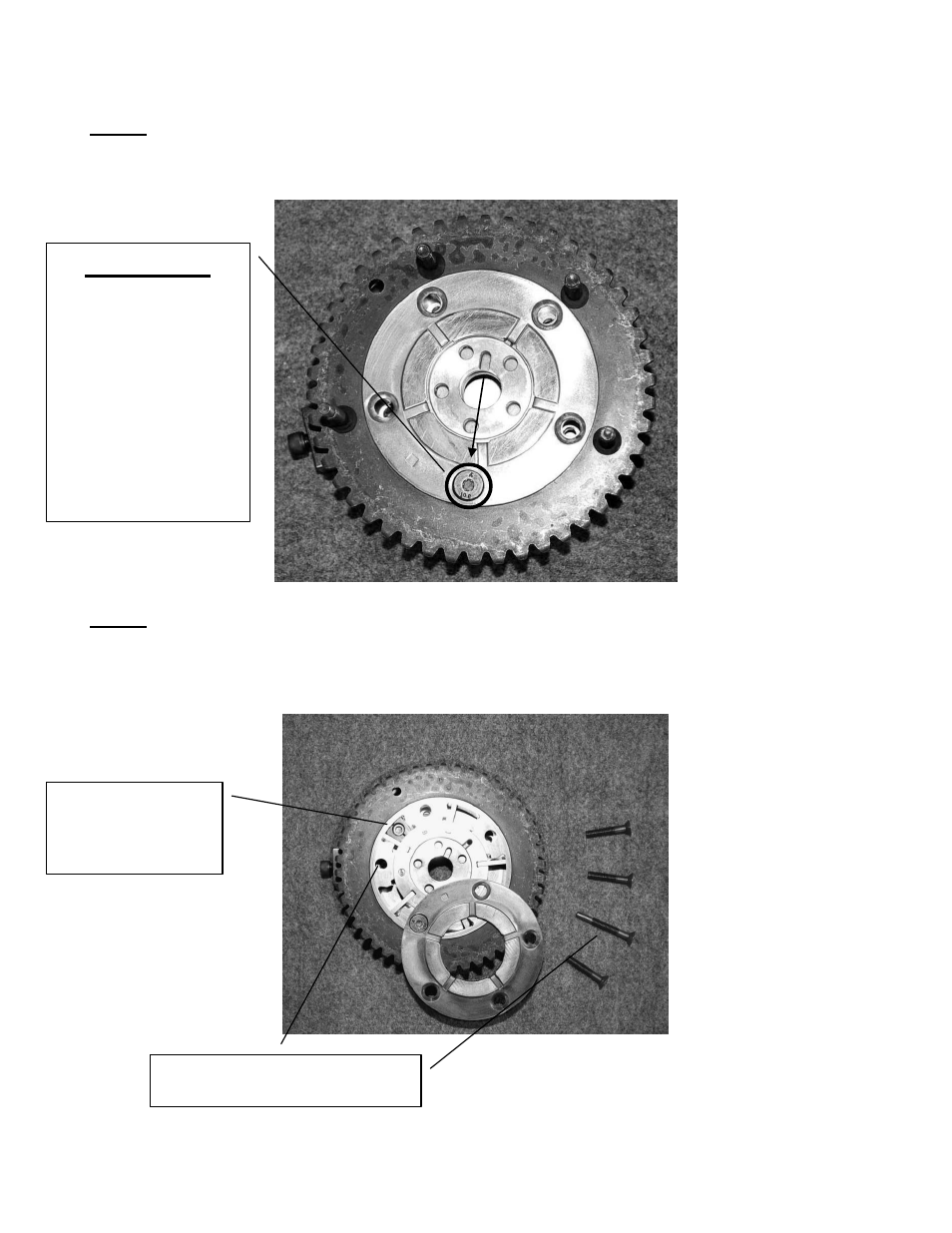

Step 2
Turn the phaser over and loosen the circled bolt/pin that’s opposite of the dowel pin slot one turn (in
the picture below). Proceed to remove the remaining 4 bolts.
Step 3
Rotate the plate to view the internals of the phaser. Place Loctite on the pipe plug, and thread the plug
into the lock. Then place the lock in the phaser, pipe plug facing up. Use your 5/32" socket and ratchet
to tighten the plug until the lock does not move.
CAUTION!
1. DO NOT
COMPLETELY
REMOVE THIS
BOLT; SPRING
WILL UNWIND!
2. DO NOT
REMOVE TOOL
UNLESS ALL
BOLTS ARE
INSTALLED!
Insert lock here
with the slit facing
the center of phaser.
Remember the bolt/pin goes in
the hole that the tool is over.
