COMP Cams 5493 5.0L Ford “Coyote” Camshaft Phaser Limiters (2011+) User Manual
Instructions
COMP Cams®
3406 Democrat Rd.
Memphis, TN 38118
Phone: (901) 795-2400 Fax: (901) 366-1807
www.compcams.com
Part #COMP4-137
8/1/12
Part #5493 5.0L Ford “Coyote” Camshaft Phaser Limiters (2011+)
Thank you for choosing COMP Cams® products; we are proud to be your manufacturer of choice.
Please read this instruction sheet carefully before beginning installation, and also take a moment to
review the included limited warranty information.
1) Disconnect the negative post of your battery.
2) Remove any beauty/coil covers from the engine.
3) Remove the coil and phaser actuator electrical
connectors from both banks of the engine.
4) Remove the coils and valve covers from both
sides of the engine.
5) Remove spark plugs as this will ease rotation of
the engine later on.

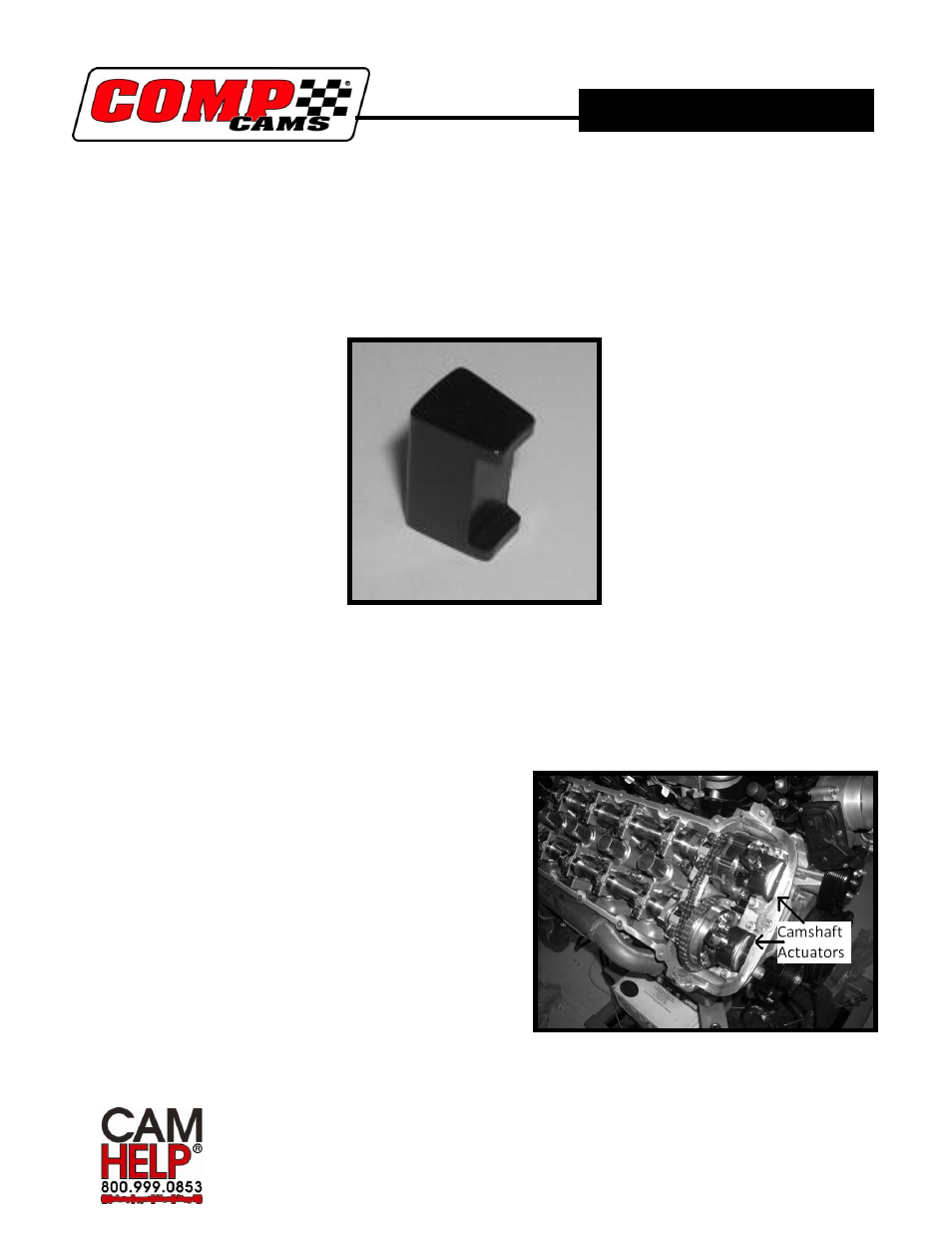

6) Remove camshaft actuators. These are the tall
pieces that stick up through the valve cover and
sit just in front of the cam phaser. They are each
mounted to the front cover with two 8mm bolts.
