6) Place the H-beam over the valve springs with the receiver cup facing up ensuring the valve
stems and locks are centered with the window on the compressor facing up.

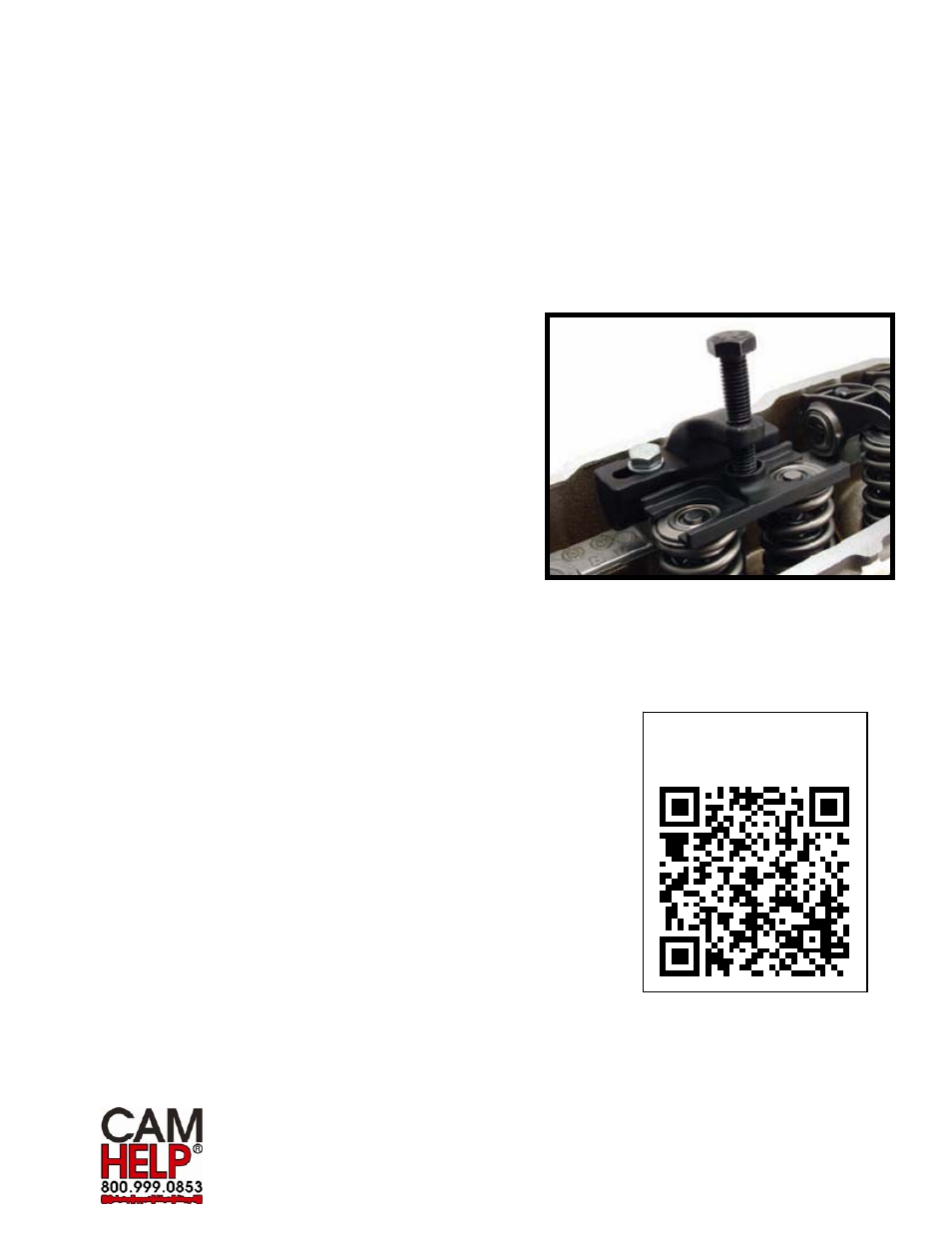

7) Thread in the included M10-1.5 X 50mm bolt through the arm and seat it in the receiver cup on
the top of the H-beam. (See picture)
8) Before tightening the M10-1.5 bolt any further, you may need to adjust the positioning of the
springs or compressor tool to ensure all components are angled properly.
9) Using a socket, tighten the M10-1.5 bolt to compress the valve springs until the valve locks can
safely be removed from both springs.
10) Once the valve locks are removed you can release
the load from the springs by turning the M10-1.5
bolt counterclockwise until the springs no longer
held by the tool.
11) Remove the valves spring(s) you wish to change
and install replacement spring in its place.
12) Reverse procedure to reinstall.
13) Repeat steps 1-10 for any other springs you wish to
change.
WARNING: Never loosen the hold down bolts while the tool is under spring load!
Always wear eye protection when changing valve springs!
